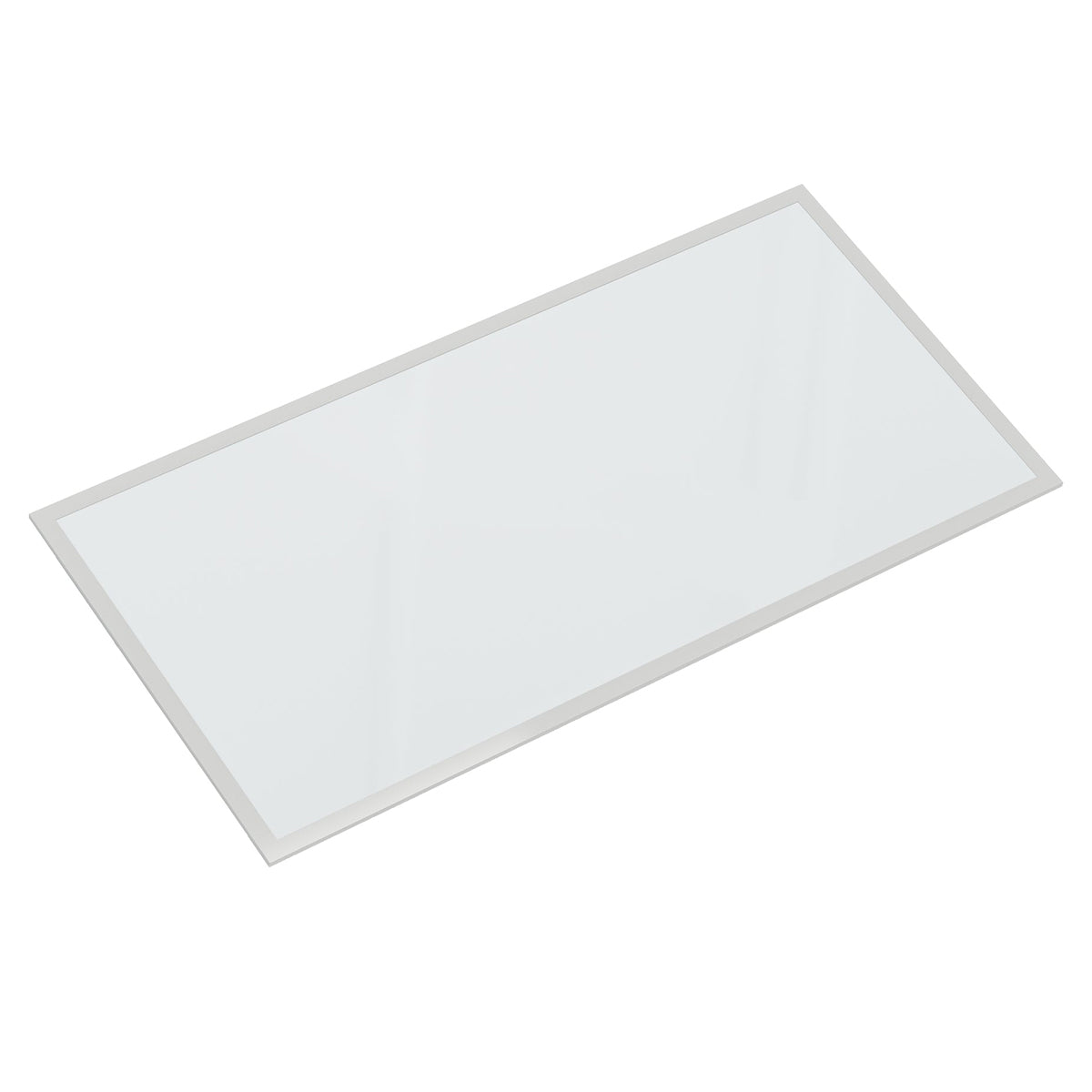

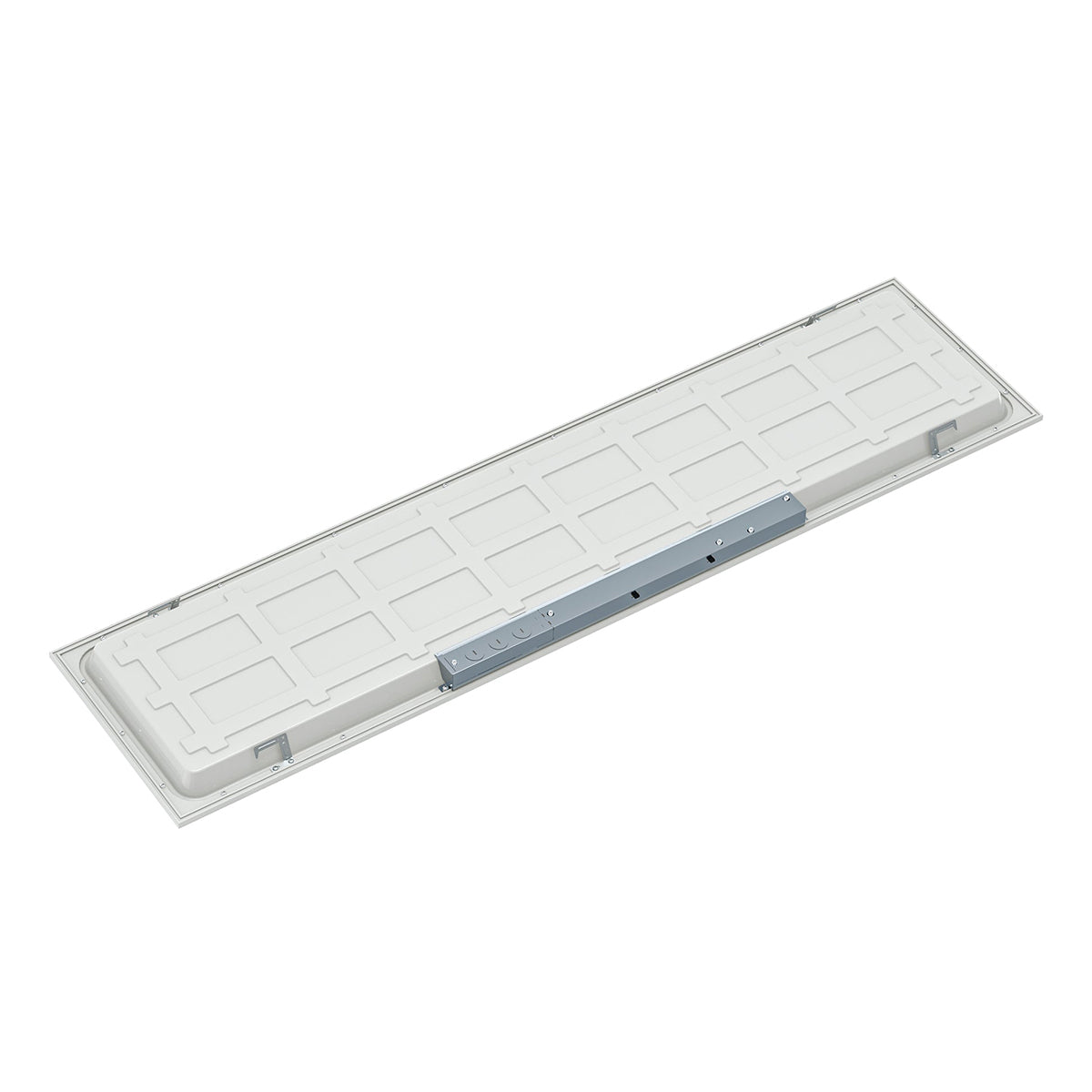

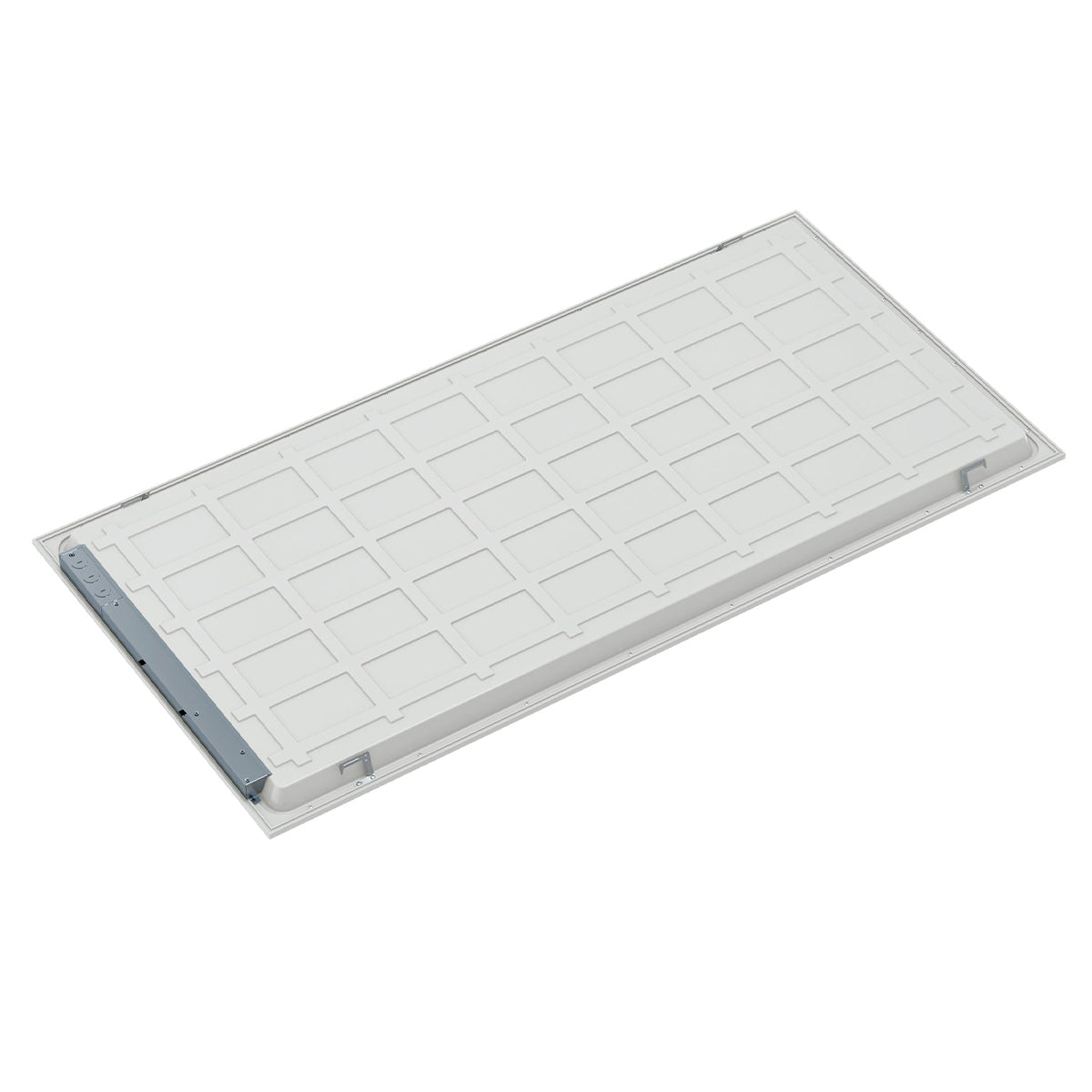

LED Flat Panel Light Fixture 15W - 72W Selectable Wattage 1X4-2X4
LED Flat Panel Light Fixture 15W - 72W Selectable Wattage 1X4-2X4
Regular price
$42.00 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
Certification Passed

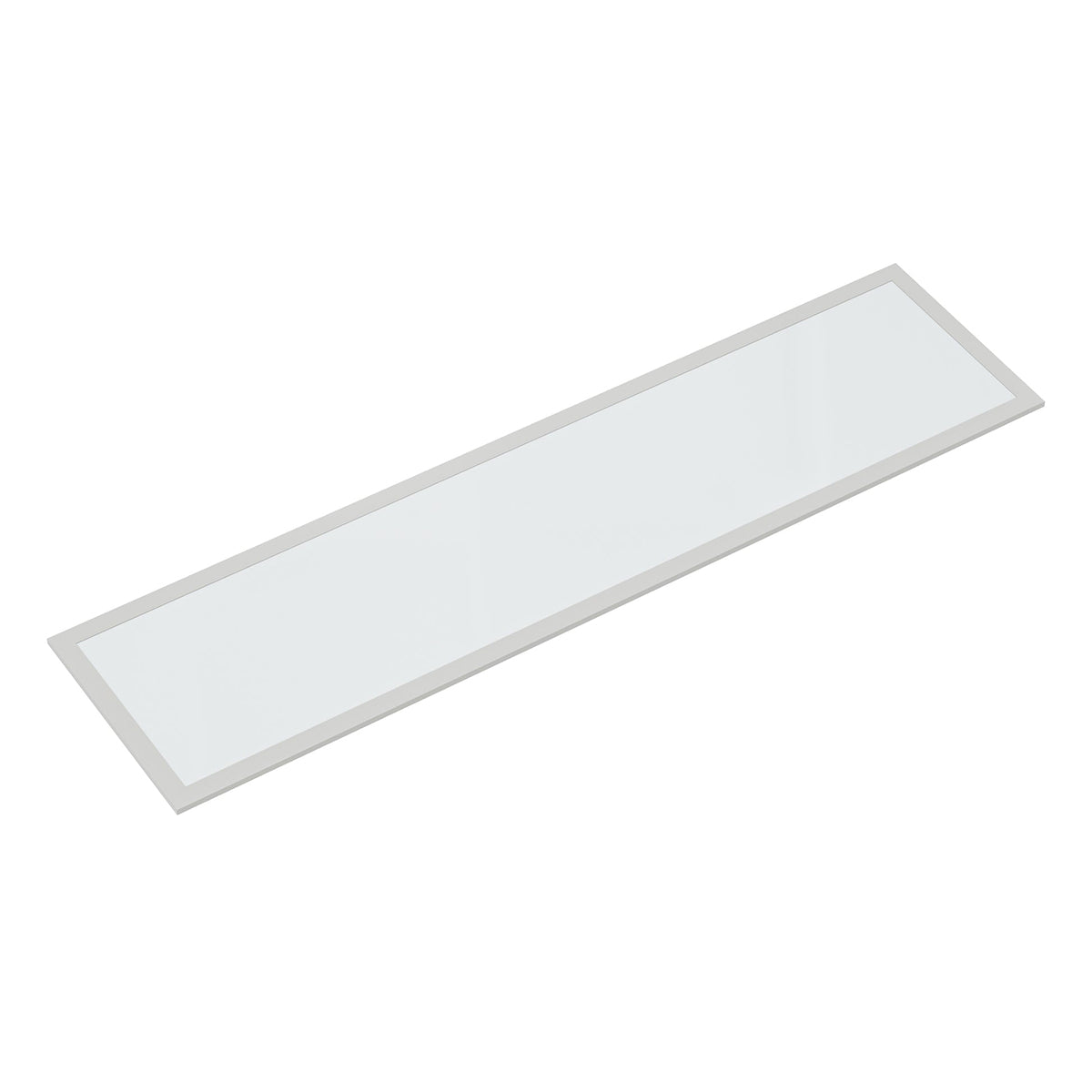

LED Flat Panel Light Fixture G3 15W - 72W Selectable Wattage 1X4-2X4
Product Overview
J-Linear G3 LED Flat Panel Light is organized for internal procurement, distributor ordering, and stock review. The source data provides SKU-level size, wattage, input voltage, CCT, certification, cost, price, and US stock quantities.
This product record is not written for retail merchandising; it is structured for B2B comparison, inventory aggregation, and quote preparation.
Key Specifications
- Product category: LED Flat Panel Light
- Series: J-Linear G3
- Material: Not provided
- Dimensions: 1X4 / 2X2 / 2X4
- Technical standards: 15W-72W selectable by SKU; 120-277V / 120-347V; 3000K / 3500K / 4000K / 5000K / 6500K adjustable; 6,250-10,000 lm; 125 lm/W or 10,000 lm package by SKU
- Certifications: DLC / ETL
- MOQ/Pack Size: Not provided
- Total US stock in source table: 3582
Variant Procurement Matrix
| SKU | Size | Wattage | Input Voltage | CCT / Configuration | Lumens | Efficacy | US Stock | Unit Price |
|---|---|---|---|---|---|---|---|---|
| PAN14-65W-xxK G3 | 1X4 | 15W-30W-40W-50W-65W | 120-277V/120-347V | Sensor Base | 10,000 lm | Not provided | 195 | $42.00 |
| PAN22-50W-xxK G3 | 2X2 | 15W-20W-30W-40W-50W | 120-277V/120-347V | Sensor Base | 6,250 lm | 125 lm/W | 738 | $26.60 |
| PAN22-50W-NB-xxK G3 | 2X2 | 15W-20W-30W-40W-50W | 120-277V/120-347V | No Sensor Base | 6,250 lm | 125 lm/W | 1386 | $25.90 |
| PAN22-65W-xxK G3 | 2X2 | 15W-30W-40W-50W-65W | 120-277V/120-347V | Sensor Base | 10,000 lm | Not provided | 1035 | $39.20 |
| PAN24-72W-xxK G3 | 2X4 | 15W-30W-40W-50W-72W | 120-277V/120-347V | Sensor Base | 10,000 lm | Not provided | 194 | $42.00 |
| PAN24-72W-xxK-NB G3 | 2X4 | 15W-30W-40W-50W-72W | 120-277V/120-347V | No Sensor Base | 10,000 lm | Not provided | 34 | $40.60 |
Applications & Industries
- Commercial flat panel lighting
- Low bay lighting where listed by SKU
- High bay lighting where listed by SKU
- Warehouse support spaces
- Distributor stock programs for panel fixtures
Supply Chain & Quality Standards
- Certification data: DLC / ETL
- Quality control standard: Not provided
- OEM/ODM customization: Not provided
- Lead time: Not provided
- Procurement data: Unit cost, unit price, and US stock are maintained by SKU in the variant matrix.
Procurement FAQ
Q: Is sample availability provided?
A: Sample availability is not provided in the uploaded source data.
Q: Can compliance documents be requested for purchasing review?
A: Certification categories are listed by SKU in the source table. Certificate file links were not provided.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 15W-72W selectable by SKU |
| LPW | 125.0 |
| Certifications | DLC / ETL |
| Lifetime | 50000 hours |
| Luminous | 6,250-10,000 lm |
| Voltage | 120-277V / 120-347V |
| CRI | 80 |
| Beam Angle | 120 |
| Color Temperature Range | 3000K-6500K |
| Applications | Commercial flat panel lighting Low bay lighting where listed by SKU High bay lighting where listed by SKU Warehouse support spaces Distributor stock programs for panel fixtures |
| Efficacy per W | 125 lm/W or 10,000 lm package by SKU |
| Operating Temperature | -4'F - 104'F |
| Dimming Details | 0-10V Dimming |
| Size | 1X4 / 2X2 / 2X4 |
| Warranty | 5 years Warranty |
