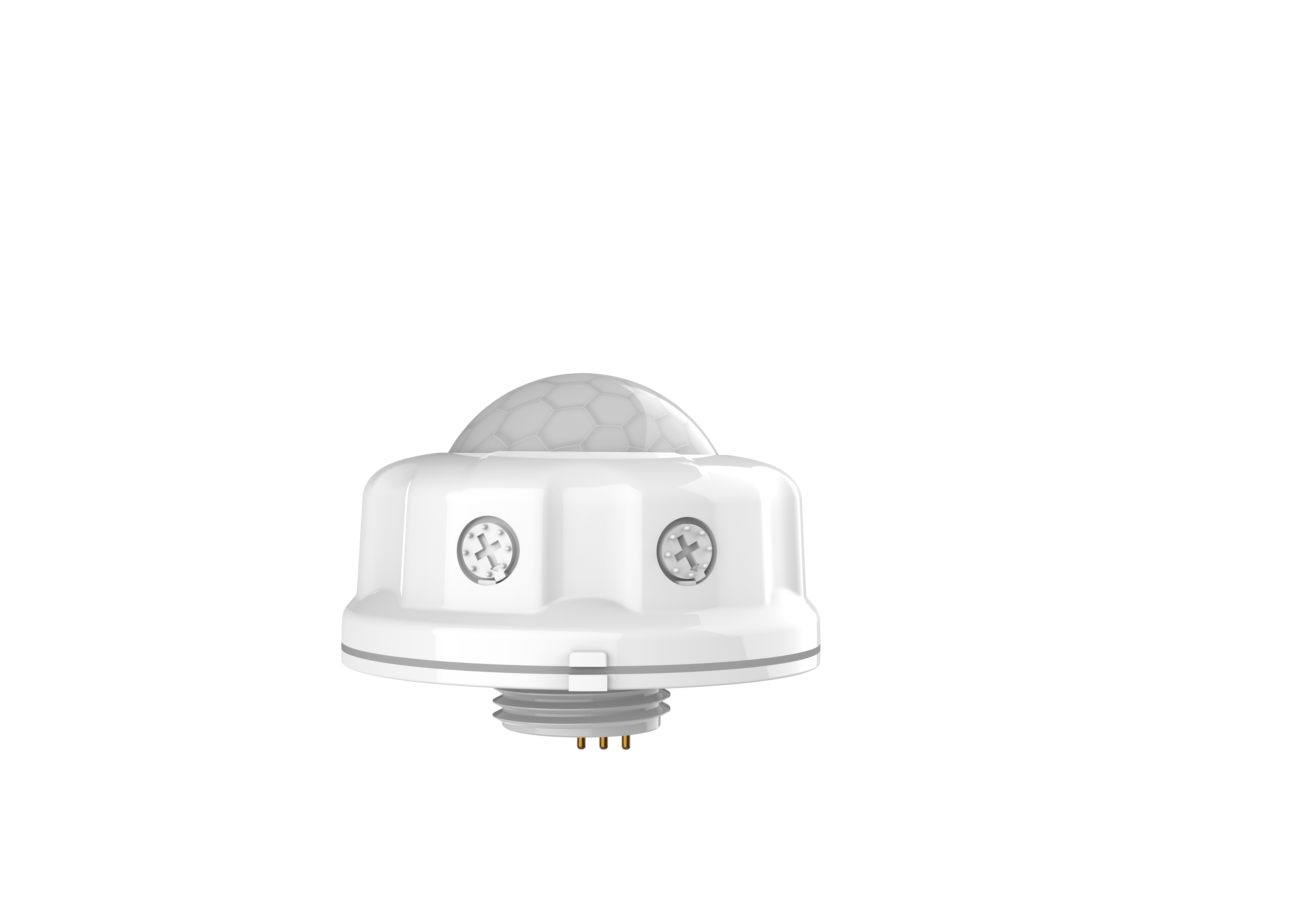

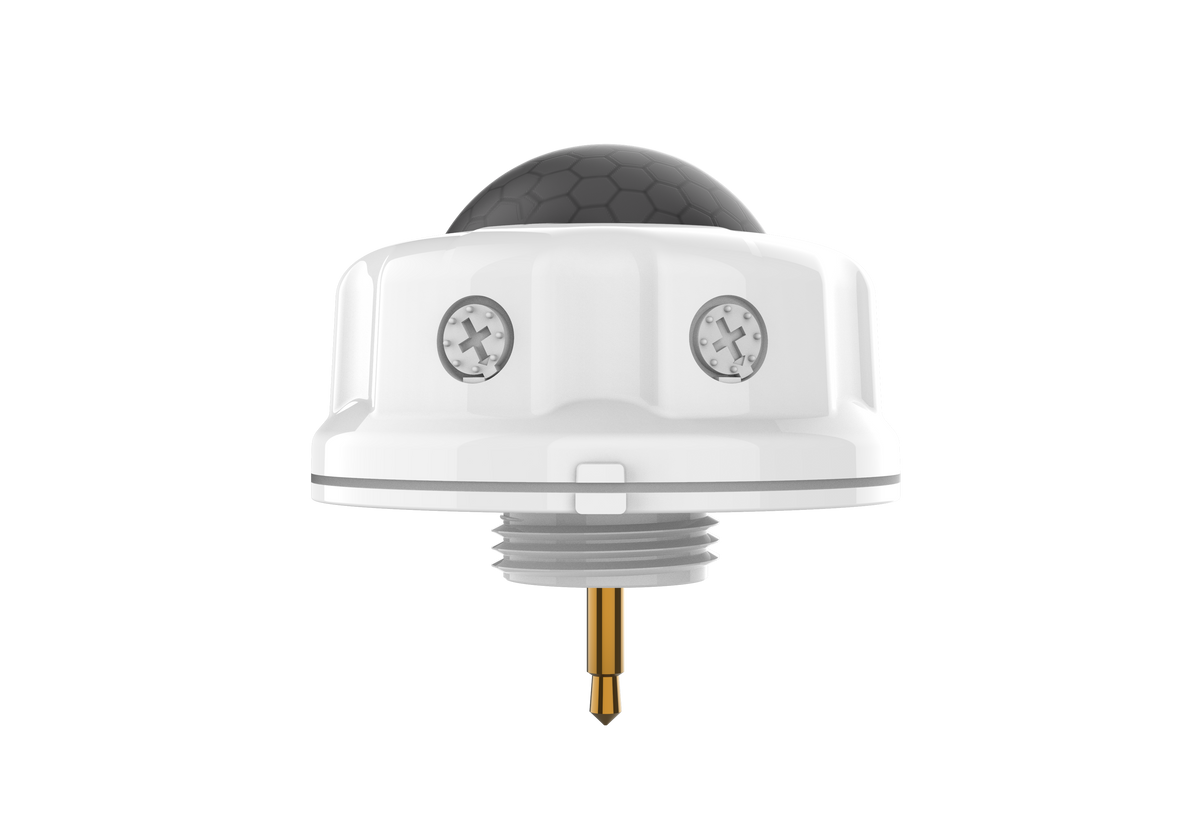

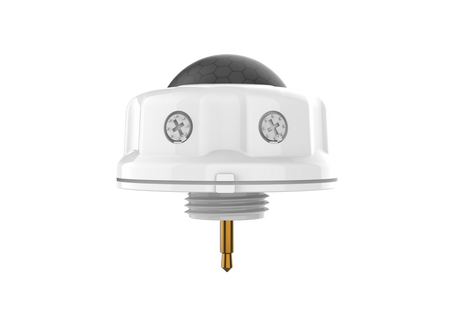

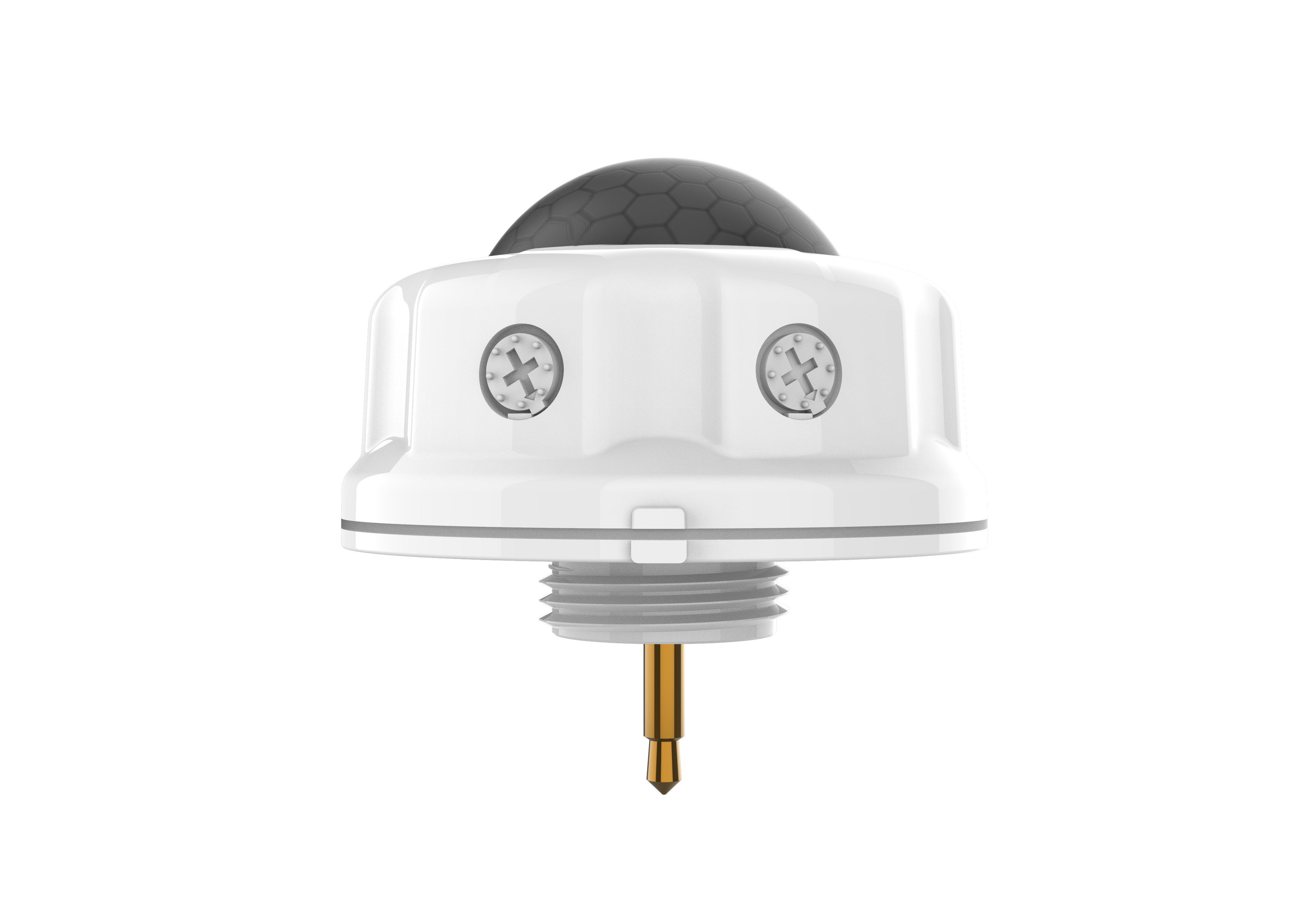

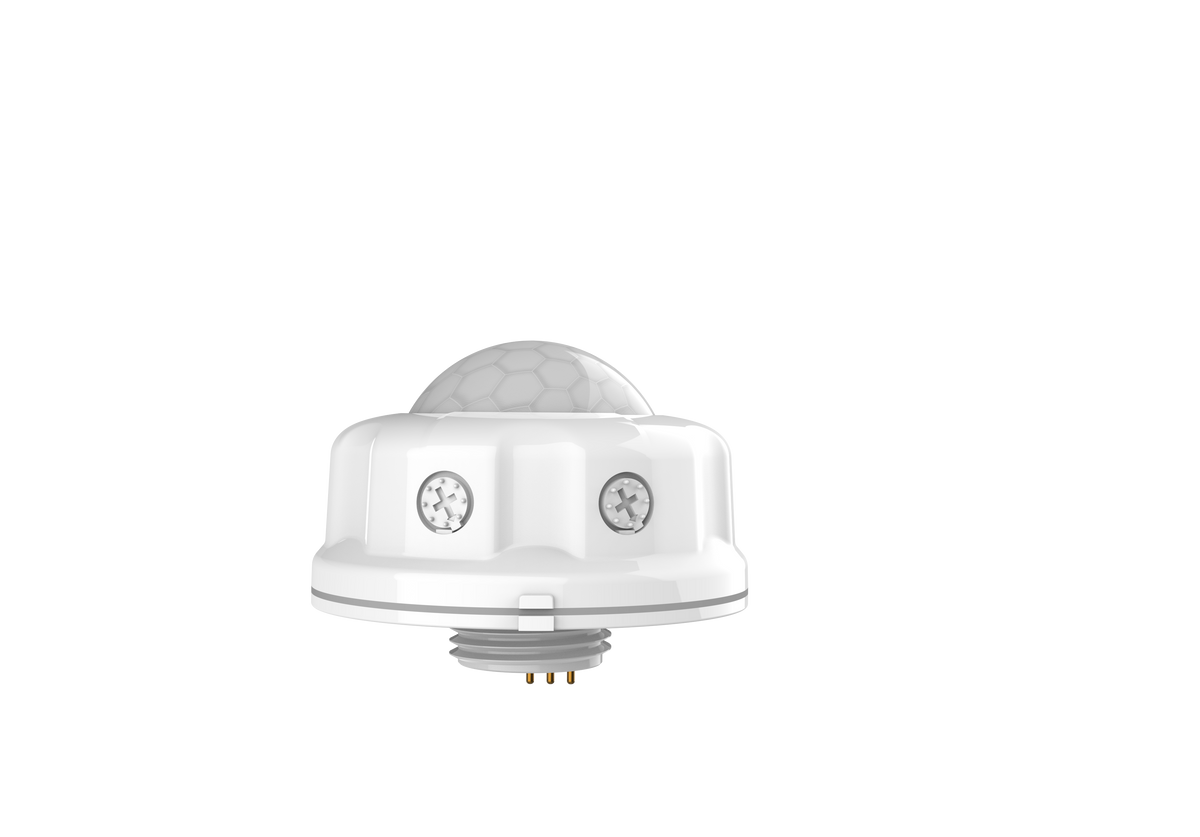

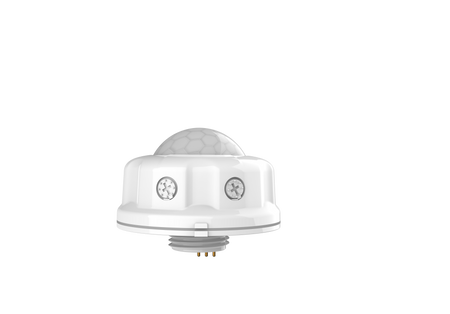

HD09VR-PH PIR Sensor ¨C 3 Pin | HAISEN Daylight Priority / Harvesting Motion Sensor

Engineered for intelligent, high-efficiency commercial and industrial energy control, the HAISEN HD09VR-PH 3-Pin PIR Motion Sensor combines reliable passive infrared occupancy detection with advanced daylight priority (daylight harvesting) functionality. Designed for tool-free, plug-and-play installation on compatible LED high bays, tri-proof lights, vapor tights, and linear shop lights, this sensor continuously evaluates both ambient daylight levels and motion activity. By suppressing artificial lighting when natural sunlight is sufficient and adjusting fixture brightness via 0–10V dimming, it maximizes energy savings while ensuring optimal illumination across warehouses, factories, parking garages, and commercial corridors.

• HAISEN Daylight Priority / Harvesting Intelligence: Smart optical logic continuously measures ambient daylight; if natural sunlight exceeds the preset threshold, the sensor keeps the fixture OFF (or at low standby levels) even when motion is detected, preventing unnecessary energy consumption.

• 3-Pin Plug-and-Play Interface: Built with a standard 3-pin twist-lock or receptacle base, allowing fast, tool-free field installation, retrofitting, or replacement directly onto compatible LED fixture chassis without opening driver compartments.

• Precision Passive Infrared (PIR) Detection: High-sensitivity multi-segment Fresnel optics provide 360-degree detection of moving thermal heat signatures, triggering instant light turn-on upon space entry.

• Continuous 0–10V Multi-Level Dimming: Connects directly to 0–10V dimmable LED drivers to provide smooth, flicker-free transitions between full brightness, customizable standby dimming levels (e.g., 10%, 20%, 30%, 50%), and shut-off.

• Flexible Motion & Hold-Time Controls: Multi-stage programmable parameters allow customized configuration of detection area sensitivity, hold time at full brightness, standby duration, standby dimming level, and lux daylight threshold.

• Handheld IR Remote Programmable: Easily configured and adjusted from ground level using an optional wireless infrared remote controller, eliminating the need for ladders or lifts during commissioning.

• Commercial Energy & Code Compliance: Helps facilities meet strict commercial energy efficiency mandates, including ASHRAE 90.1, California Title 24, and IECC daylight harvesting and occupancy sensing standards.

?? Key Features

• PIR Motion Detection
  Automatically detects human movement and switches lighting ON/OFF or dims accordingly for energy efficiency.
• Daylight Priority Function
  Lights remain OFF when sufficient natural light is available, reducing unnecessary energy consumption.
• Daylight Harvesting Technology
  Continuously adjusts artificial lighting based on ambient daylight levels for consistent illumination.
• 0-10V Dimming Control
  Seamless dimming capability compatible with most LED drivers for smooth lighting transitions.
• 3-Pin Standard Connector
  Easy integration with high bay and commercial lighting fixtures.
• Remote Control Programmable
  Compatible with HAISEN remote (HD05R) for flexible parameter adjustment.

?? Technical Specifications

• Input Voltage: 12VDC
• Dimming Signal: 0-10V
• Detection Angle: ¡Ü120¡ã (Fresnel Lens)
• Installation Height: Up to 12m / 39ft
• Detection Range: ¡Ý3m / 9ft
• IP Rating: IP65 (Dust & Water Resistant)
• Operating Temperature: -20¡ãC to +60¡ãC
• Warranty: 3 Years

?? Smart Control Parameters

• Detection Area: 25% / 50% / 75% / 100%
• Hold Time: 5s to 30min adjustable
• Standby Dimming Level: 10% / 20% / 30% / 50%
• Daylight Threshold: 2¨C400 Lux selectable
• Standby Period: 0s to ¡Þ

These adjustable settings allow full customization based on project requirements.

?? Ideal Applications

• Warehouses
• Factories
• Logistics Centers
• Parking Garages
• Commercial & Industrial Facilities

Perfect for high bay lighting systems requiring energy-efficient automation.

?? Why Choose HD09VR-PH?

• Reduce energy costs with intelligent daylight sensing
• Improve lighting efficiency without manual control
• Easy installation with universal 3-pin interface
• Reliable performance in harsh industrial environments

?? Installation Notes

• Designed for ceiling-mounted applications (¡Ü12m)
• Avoid installation near heat sources or airflow fluctuations
• Ensure Fresnel lens is fully exposed for accurate detection
