LUMENS167 lm; 154 lm
WATTAGE65W/130W/200W
VOLTAGE120-277V/120-347V
CCT3000-3500-4000-5000-5700-6500
WARRANTY5 year
Certification Passed：

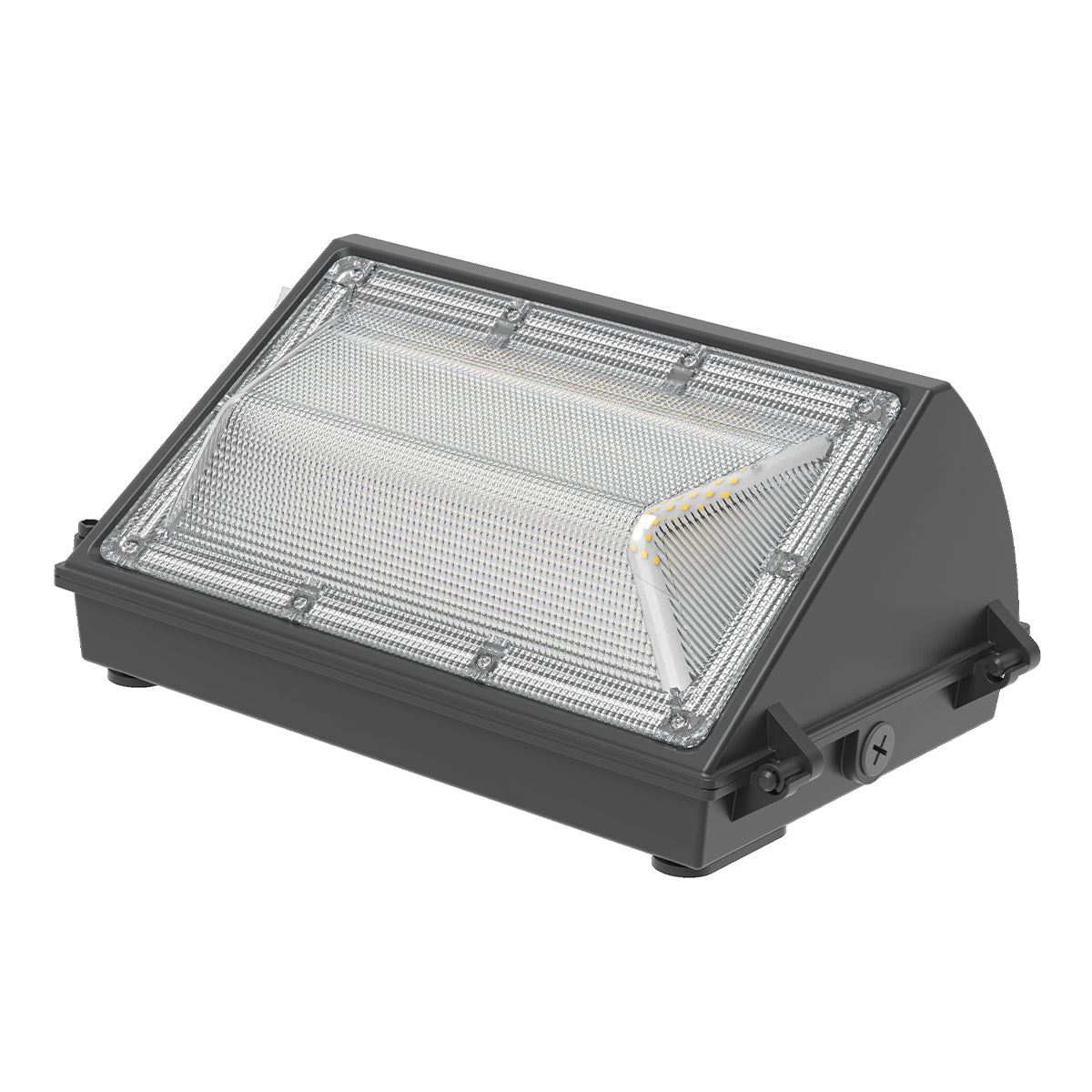

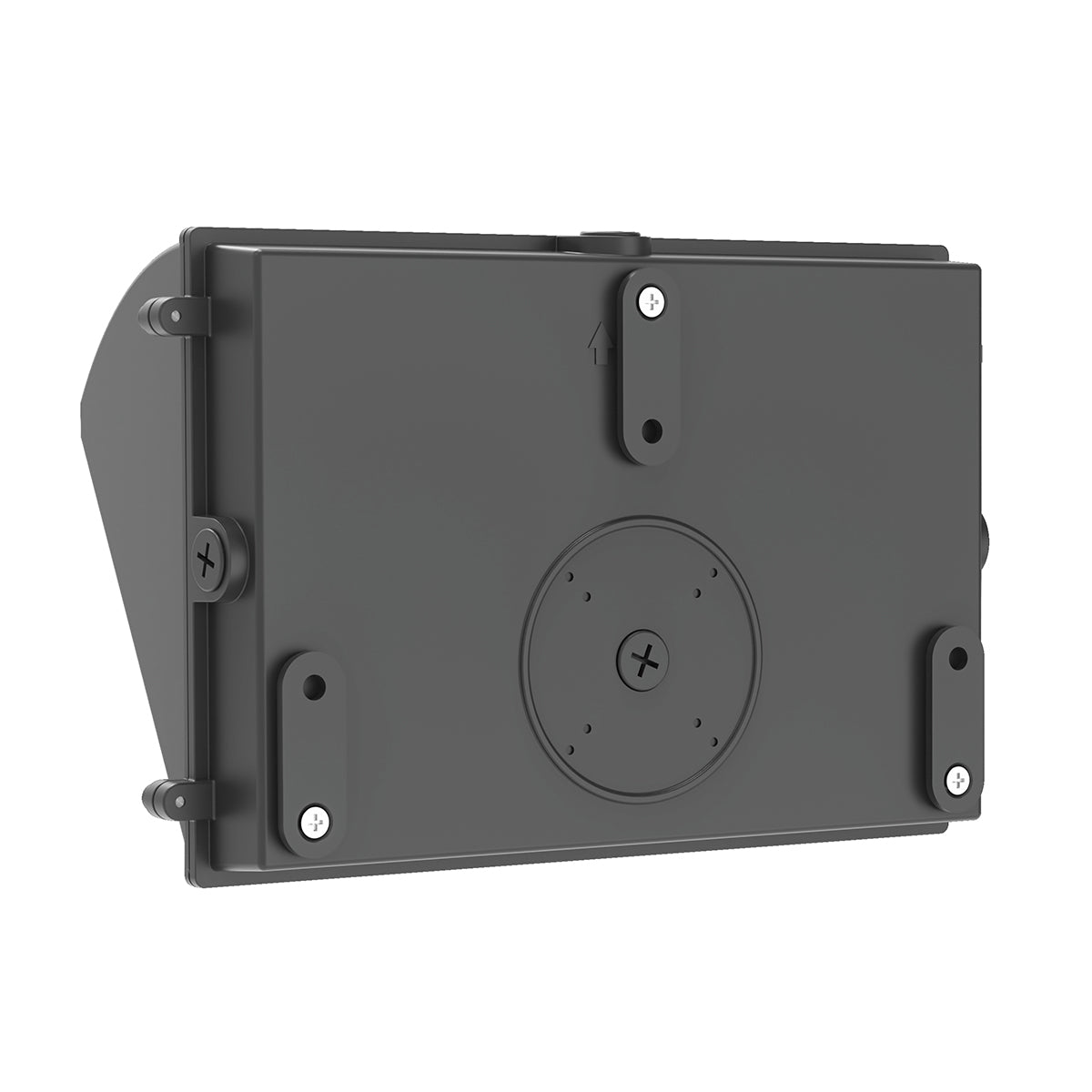

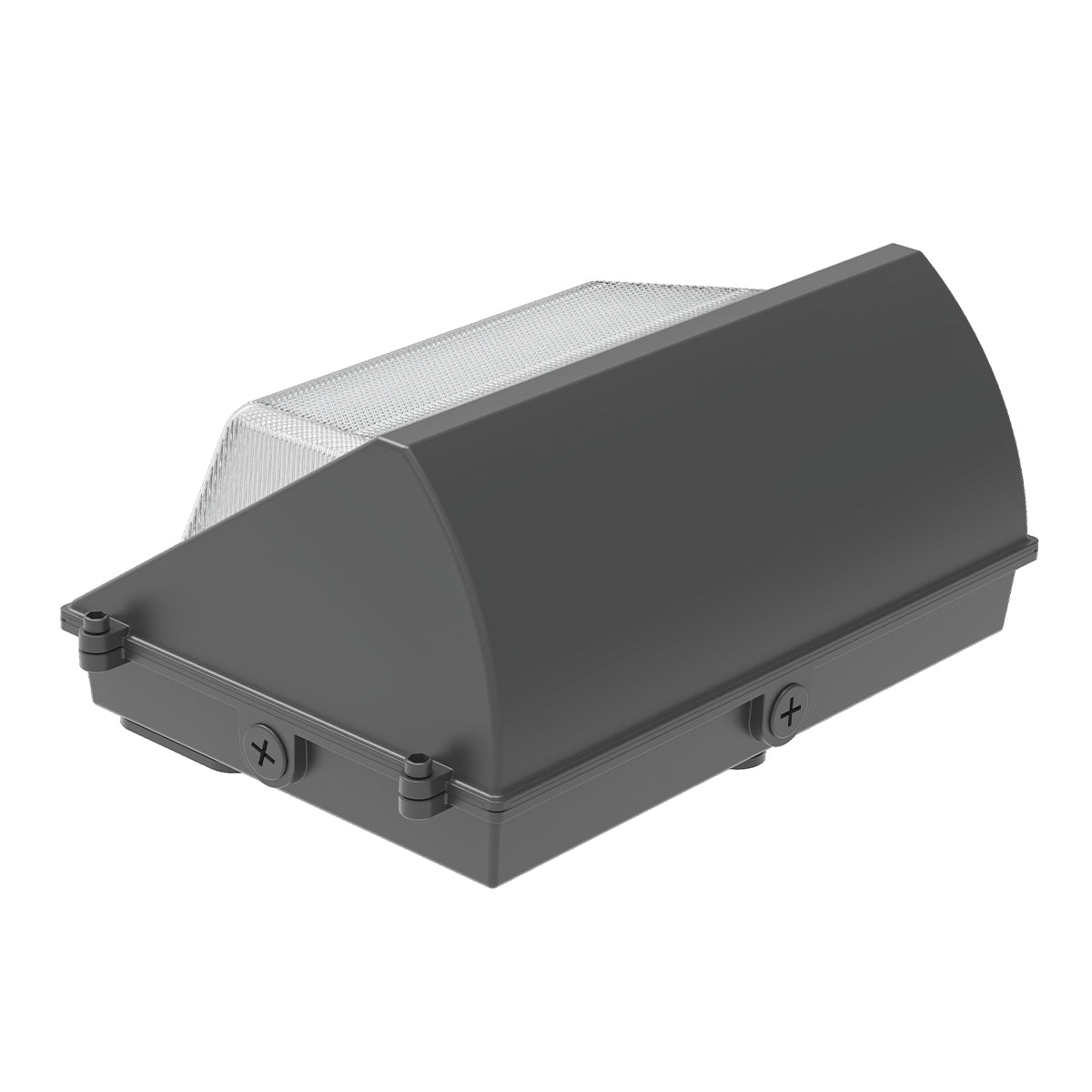

Commercial Cutoff LED Wall Pack Light 65W-200W
DIRECT PRICE
$89.00
● Dallas, TX & LA, CA Hubs · Ships in 24h
Bulk Savings
10% at $1000+ · 12% at $2000+ · 14% at $3000+
Commercial Cutoff LED Wall Pack Light 65W-200W
25W-35W-40W-50W-65W / 120-277V/120-347V / Daylight On/Off / Black Housing
Volume Savings
Eligible order-level volume savings are calculated using your combined cart value. Final discount eligibility is confirmed at checkout.
| Spend | Save |
|---|---|
| $1000+ | 10% |
| $2000+ | 12% |
| $3000+ | 14% |
*Only qualifying items count toward eligible order savings; existing discounts and gift cards may affect eligibility.
For assistance with a large-volume order, contact our support team.
Rates and eligibility are confirmed at checkout. This window does not apply a discount by itself.
Halloween Sale Coupons
Save up to $280 on your order!
$30 OFF
On orders $300+
Code:
HALLOWEEN30
$60 OFF
On orders $500+
Code:
HALLOWEEN60
$130 OFF
On orders $1000+
Code:
HALLOWEEN130
$280 OFF
On orders $2000+
Code:
HALLOWEEN280
Coupon eligibility and any combination restrictions are determined at checkout.
Commercial Cutoff LED Wall Pack Light 65W-200W
25W-35W-40W-50W-65W / 120-277V/120-347V / Daylight On/Off / Black Housing
Product Overview
Engineered for strict glare-control outdoor lighting applications, the G4 Commercial Cutoff LED Wall Pack Light delivers high-performance perimeter and perimeter-security illumination for commercial office buildings, industrial warehouses, loading docks, retail centers, and educational campuses. Featuring a full-cutoff dark-sky friendly architectural housing, this fixture directs 100% of its light downward, eliminating harsh glare, light trespass onto adjacent properties, and sky glow. Built with field-selectable wattage tuning from 65W up to 200W alongside CCT tunability, it serves as a highly efficient replacement for traditional 175W–600W metal halide or high-pressure sodium wall packs.
-
Full-Cutoff Dark-Sky Friendly Design: Zero-uplight architectural housing optics direct light strictly downward to meet strict municipal light pollution codes and prevent light trespass.
-
Broad Field-Selectable Wattage (65W–200W): Onboard DIP switches allow installer customization of power levels on-site (e.g., 65W / 80W / 120W / 150W / 200W) to match exact mounting heights and foot-candle specifications.
-
Tunable Color Temperature (CCT Selectable): Integrated switch enables quick selection between neutral and crisp white color temperatures (3000K / 4000K / 5000K) to complement overall property aesthetics.
-
Rugged Outdoor-Rated Construction: Precision die-cast aluminum housing featuring integrated cooling fins, an IP65/IP66 wet-location seal, and a UV-resistant anti-corrosion powder coat finish.
-
Commercial Grade & Certified: Equipped with a 0–10V continuous dimming driver and optional sensor/photocell receptacle; UL/ETL Listed for safety compliance and DLC Premium Qualified for utility rebate eligibility.
Variant Procurement Matrix
| SKU | Series | Size | Wattage | Input Voltage | CCT | Configuration |
|---|---|---|---|---|---|---|
| EDI-WL-65W G4 | G4 | Not provided | 25W-35W-40W-50W-65W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Daylight On/Off / Black Housing |
| EDI-WL-130W G4 | G4 | Not provided | 50W-65W-80W-100W-130W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Daylight On/Off / Brown Housing |
| EDI-WL-200W G4 | G4 | Not provided | 80W-120W-150W-180W-200W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Cutoff / Black Housing |
Applications & Industries
- Building perimeter wall lighting
- Exterior security lighting
- Cutoff wall-pack projects
Specifications
| Wattage | 65W/130W/200W | Efficacy per W | 167 lm/W; 154 lm/W |
|---|---|---|---|
| Certifications | ETL / DLC / FCC | Lifespan | 50000 hours |
| Lumens | 167 lm; 154 lm | Voltage | 120-277V/120-347V |
| CRI | 80 | Color Temperature Range | 3000-3500-4000-5000-5700-6500 |
| Size | Not provided | Applications | Building perimeter wall lighting Exterior security lighting Cutoff wall-pack projects Distributor wall-pack inventory |
| Dimming Details | 0-10V Dimming | Operating Temperature | -4°F~104°F |
| Warranty | 5 year |
Downloads
Product Overview
Engineered for strict glare-control outdoor lighting applications, the G4 Commercial Cutoff LED Wall Pack Light delivers high-performance perimeter and perimeter-security illumination for commercial office buildings, industrial warehouses, loading docks, retail centers, and educational campuses. Featuring a full-cutoff dark-sky friendly architectural housing, this fixture directs 100% of its light downward, eliminating harsh glare, light trespass onto adjacent properties, and sky glow. Built with field-selectable wattage tuning from 65W up to 200W alongside CCT tunability, it serves as a highly efficient replacement for traditional 175W–600W metal halide or high-pressure sodium wall packs.
-
Full-Cutoff Dark-Sky Friendly Design: Zero-uplight architectural housing optics direct light strictly downward to meet strict municipal light pollution codes and prevent light trespass.
-
Broad Field-Selectable Wattage (65W–200W): Onboard DIP switches allow installer customization of power levels on-site (e.g., 65W / 80W / 120W / 150W / 200W) to match exact mounting heights and foot-candle specifications.
-
Tunable Color Temperature (CCT Selectable): Integrated switch enables quick selection between neutral and crisp white color temperatures (3000K / 4000K / 5000K) to complement overall property aesthetics.
-
Rugged Outdoor-Rated Construction: Precision die-cast aluminum housing featuring integrated cooling fins, an IP65/IP66 wet-location seal, and a UV-resistant anti-corrosion powder coat finish.
-
Commercial Grade & Certified: Equipped with a 0–10V continuous dimming driver and optional sensor/photocell receptacle; UL/ETL Listed for safety compliance and DLC Premium Qualified for utility rebate eligibility.
Variant Procurement Matrix
| SKU | Series | Size | Wattage | Input Voltage | CCT | Configuration |
|---|---|---|---|---|---|---|
| EDI-WL-65W G4 | G4 | Not provided | 25W-35W-40W-50W-65W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Daylight On/Off / Black Housing |
| EDI-WL-130W G4 | G4 | Not provided | 50W-65W-80W-100W-130W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Daylight On/Off / Brown Housing |
| EDI-WL-200W G4 | G4 | Not provided | 80W-120W-150W-180W-200W | 120-277V/120-347V | 3000-3500-4000-5000-5700-6500 | Cutoff / Black Housing |
Applications & Industries
- Building perimeter wall lighting
- Exterior security lighting
- Cutoff wall-pack projects
