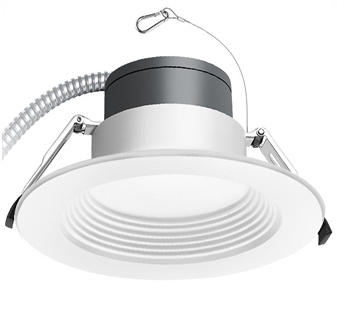

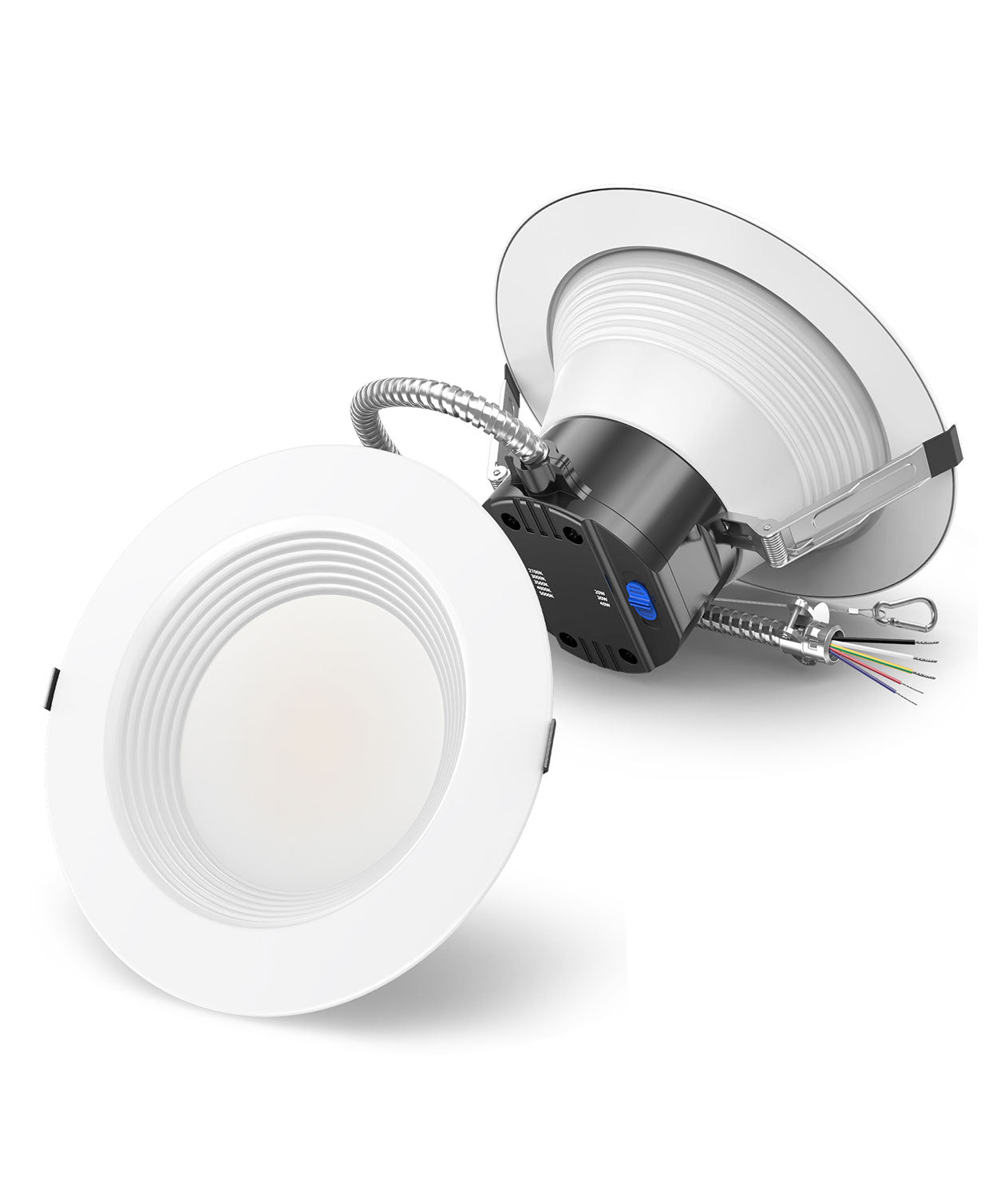

Commercial LED Recessed Downlight Series ¨C 10" 38W/30W/22W Wattage & CCT Selectable

Engineered for high-ceiling commercial retrofit and new construction applications, this 10-Inch Commercial LED Recessed Downlight delivers high-efficacy, customizable illumination for office buildings, retail centers, schools, healthcare facilities, and hospitality venues. Featuring 3-step field-selectable wattage options (22W / 30W / 38W) and tunable color temperature settings, this architectural-grade downlight outputs up to 3,800 lumens (at ~100 lm/W efficacy). Serving as a direct replacement for traditional 100W–250W compact fluorescent (CFL) or halogen downlights, it slashes energy consumption by up to 80% while offering clean, glare-free aesthetic overhead lighting.

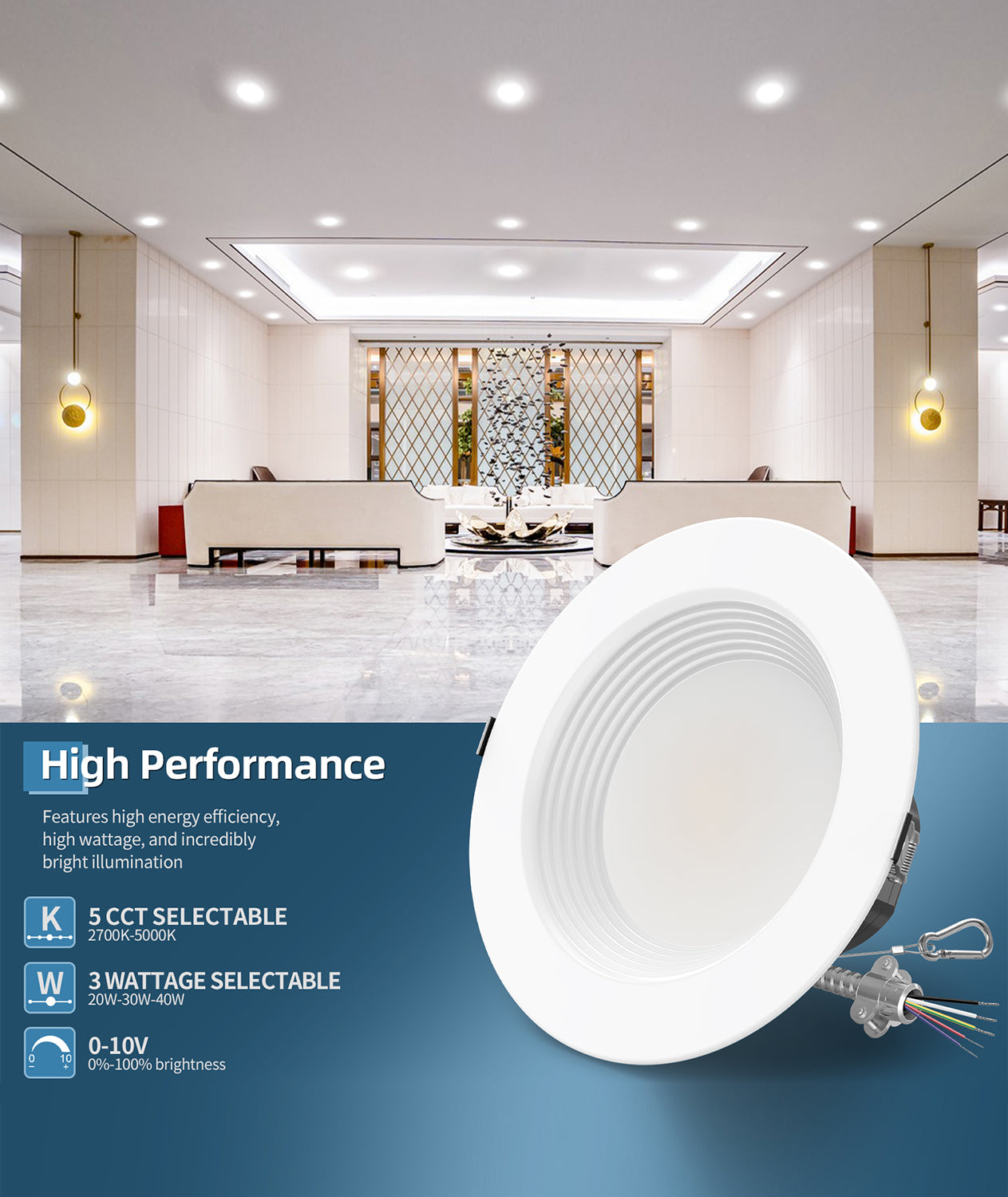

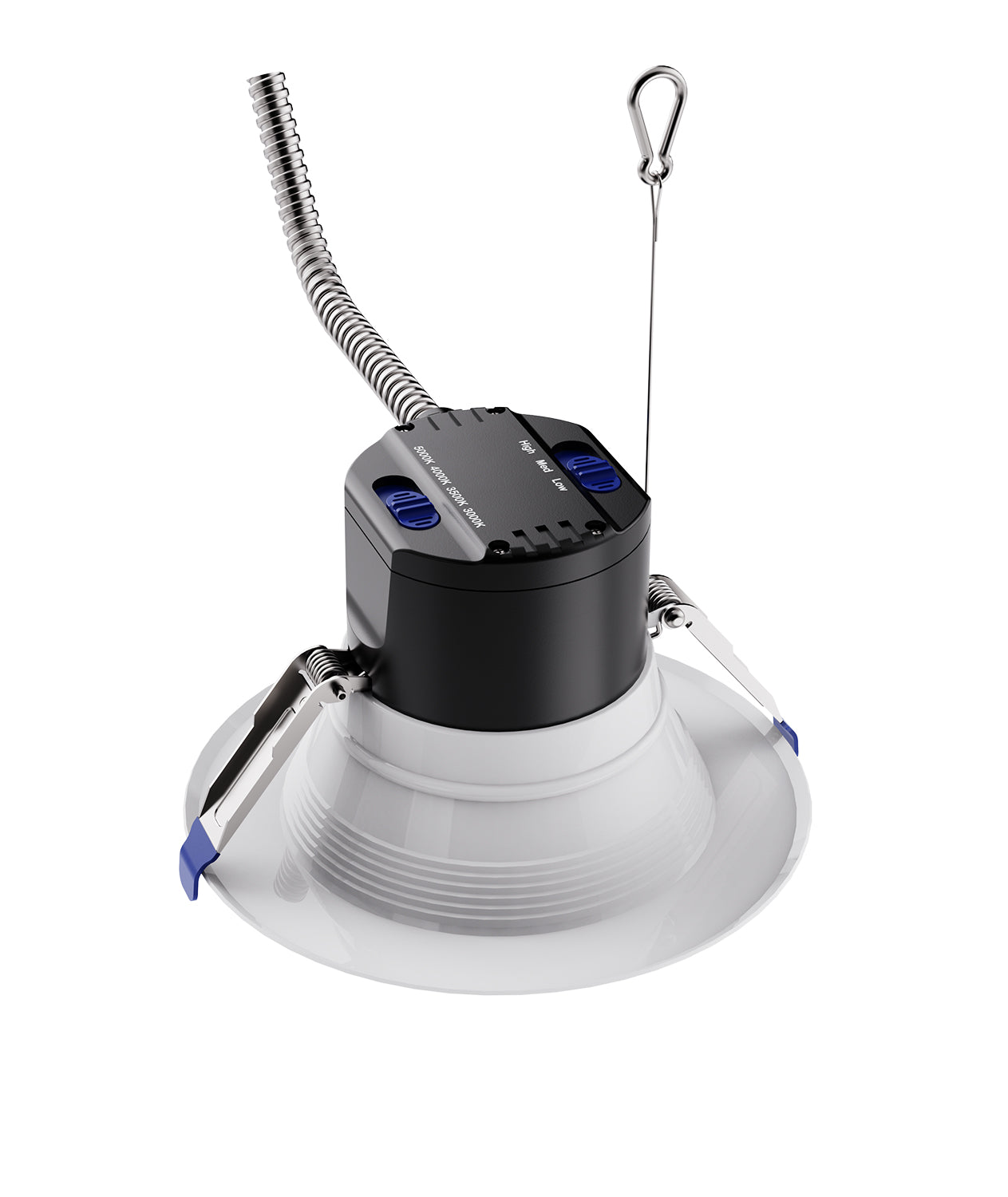

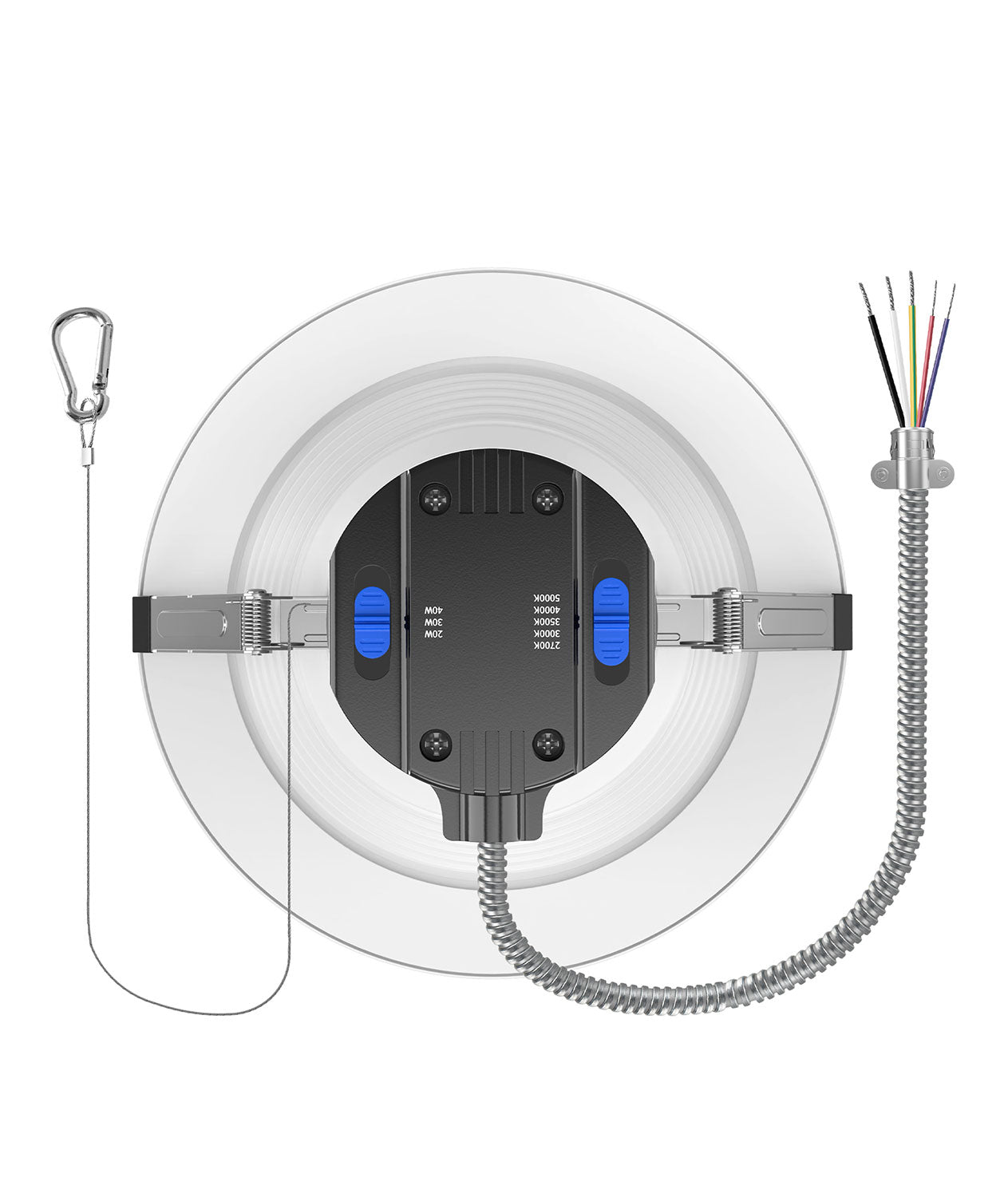

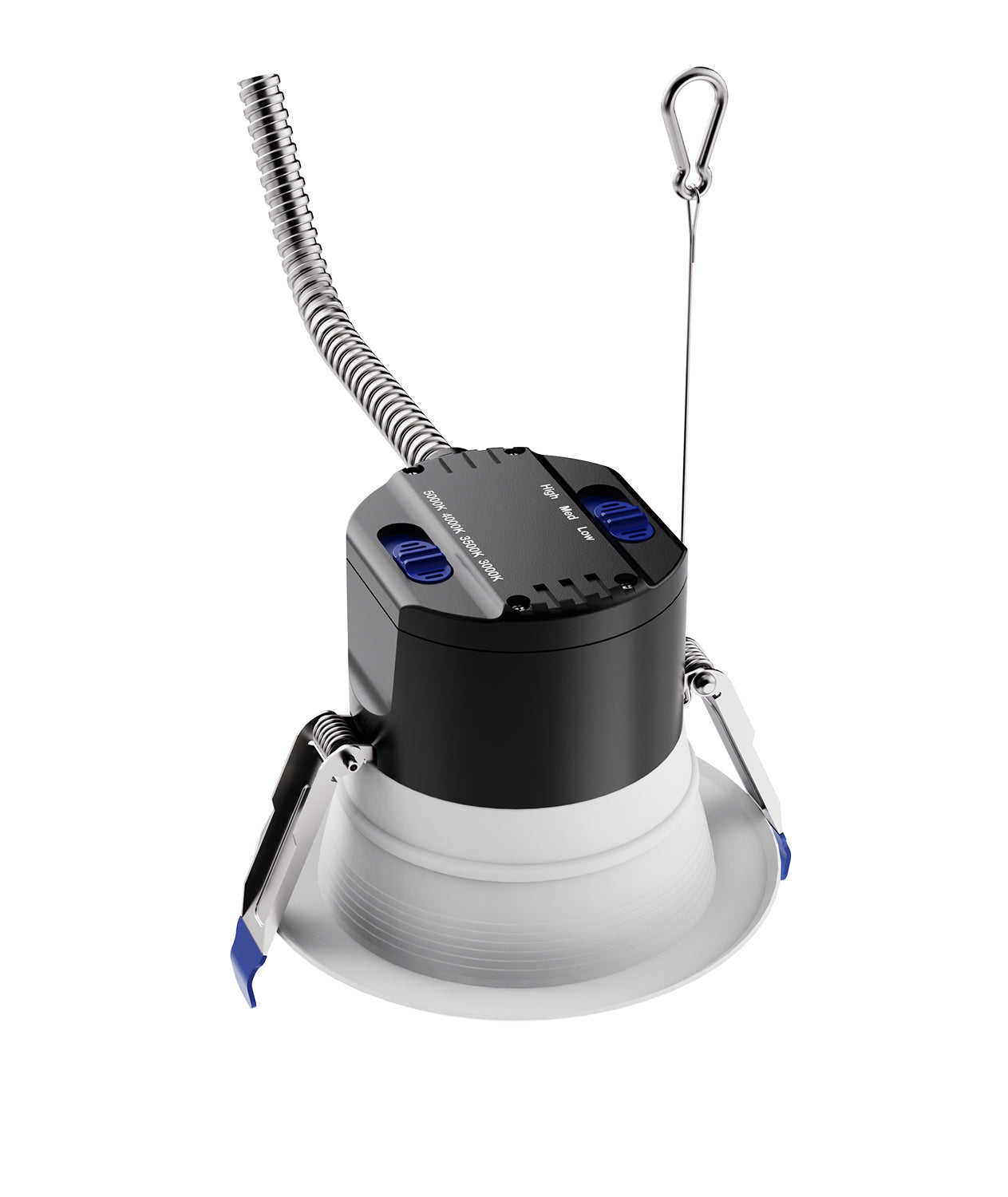

• 3-Step Field-Selectable Wattage (22W / 30W / 38W): Onboard DIP switch allows installers to calibrate lumen output on-site (22W generating ~2,200 LM; 30W generating ~3,000 LM; 38W generating ~3,800 LM) to easily meet specific light level targets across varying ceiling heights.

• Field-Tunable CCT (Selectable Color Temperature): Integrated selector switch enables field selection between multiple color temperatures (e.g., 3000K Warm White / 4000K Cool White / 5000K Daylight White) to complement surrounding interior architecture and decor.

• Universal Commercial Driver (AC100–277V): Features an integrated high-efficiency driver operating smoothly across standard commercial 120V, 208V, 240V, and 277V power lines.

• Anti-Glare Architectural Optical Reflector: Deep-regressed frosted diffuser paired with a smooth trim reflector delivers uniform, soft light distribution while minimizing visual glare (UGR) for occupant comfort.

• Durable Aluminum Frame & Passive Thermal Cooling: Built with an extruded aluminum heat sink and rigid metal housing trim that rapidly dissipates heat, protecting internal LED chips and driver components for long-term reliability.

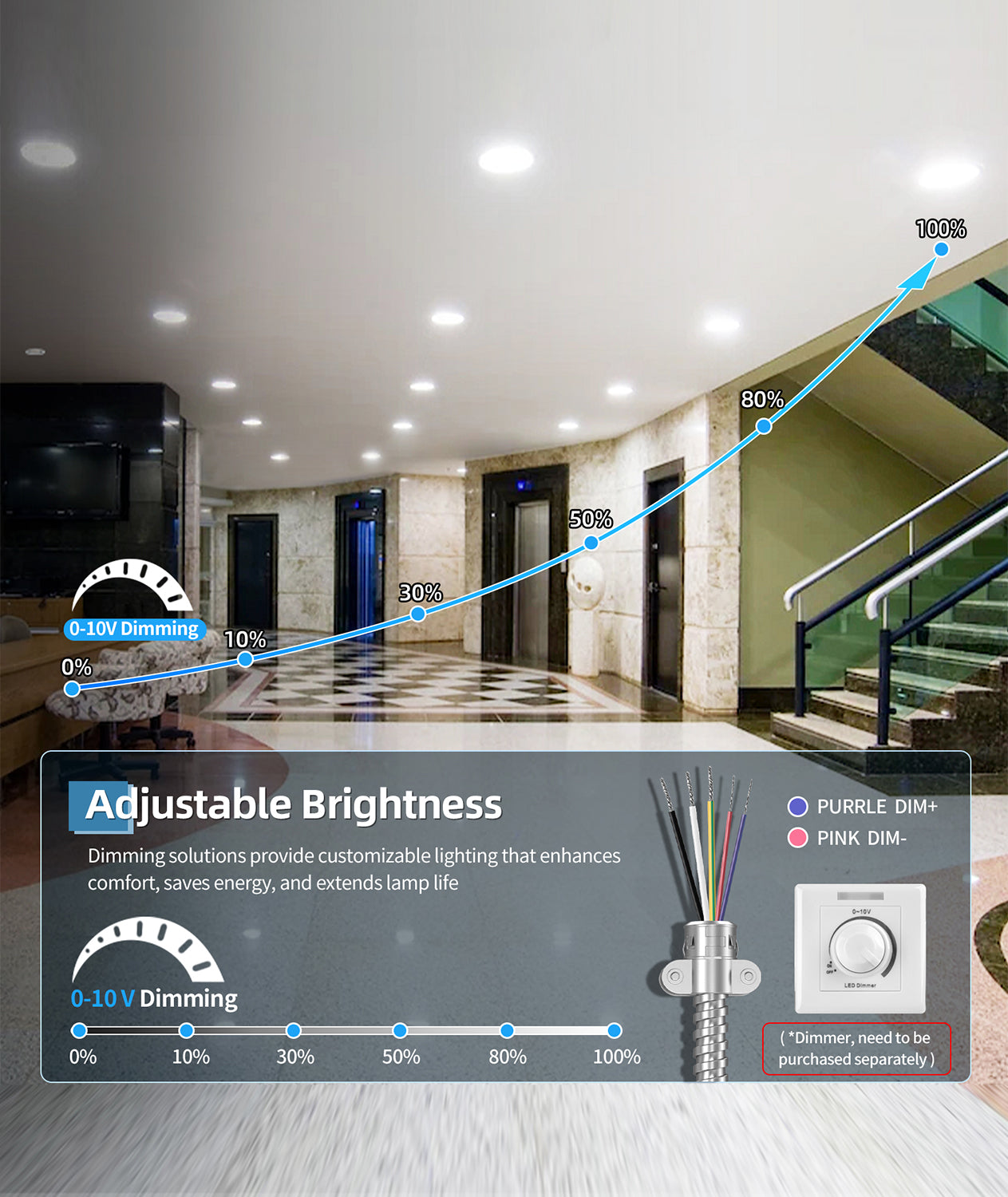

• 0–10V Continuous Dimming Compatible: Smooth, flicker-free continuous dimming down to 10% using standard 0–10V commercial wall dimmers or building control automation systems.

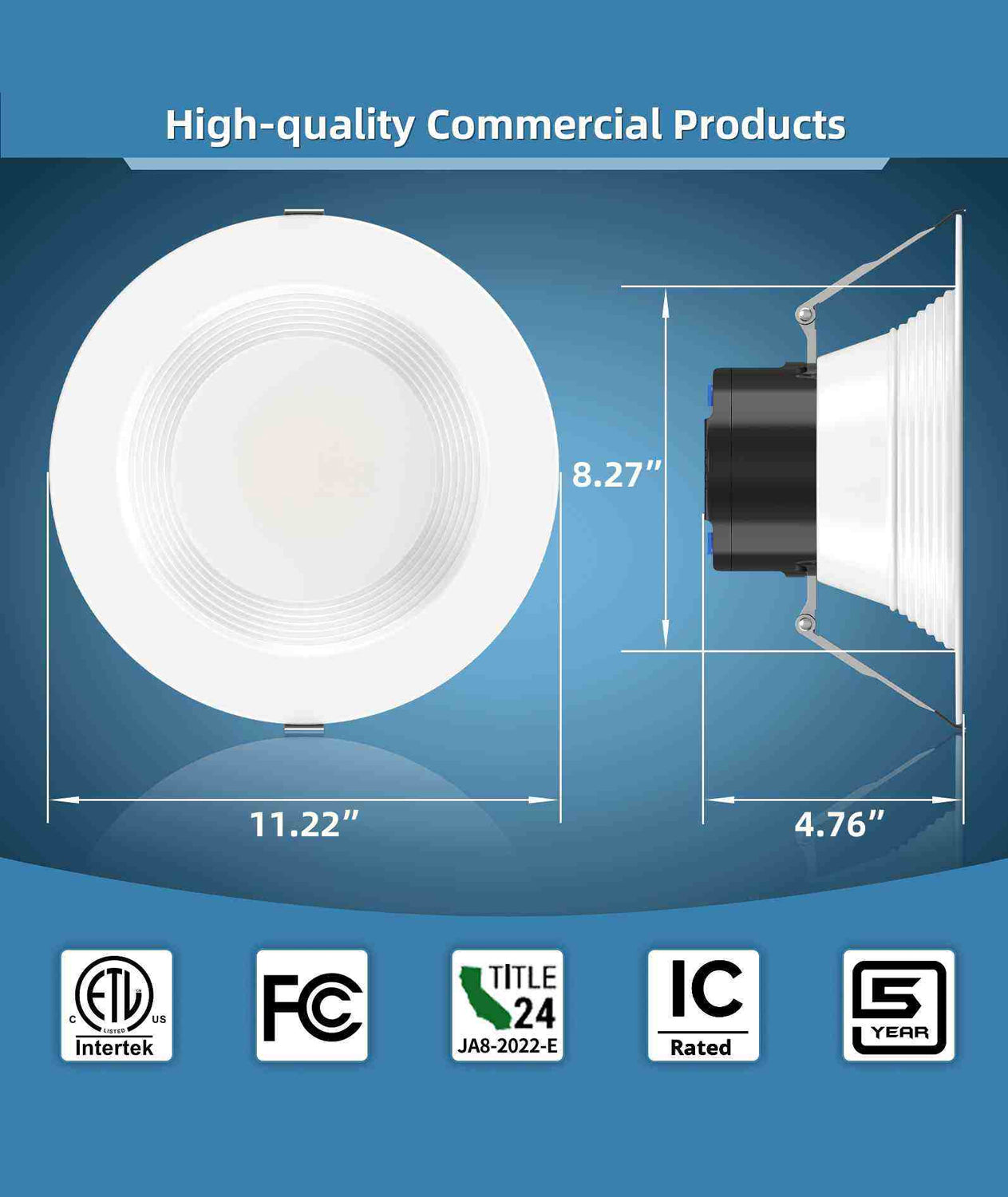

• Commercial Grade & Certified: Fits standard 10-inch commercial architectural frame-in kits and drop-ceiling tiles; damp-location rated and IC/non-IC compatible; ETL/cETL Listed DLC Qualified for utility energy rebate eligibility.

Product Specifications

Why This Commercial Downlight Stands Out:

• SKU Reduction & Cost Savings: One single fixture replaces up to 9 different traditional product configurations, dramatically lowering your inventory and stock management costs.
• Commercial Reliability: Heavy-duty construction and architectural-grade driver ensure consistent, glare-free, and long-lasting lighting performance.

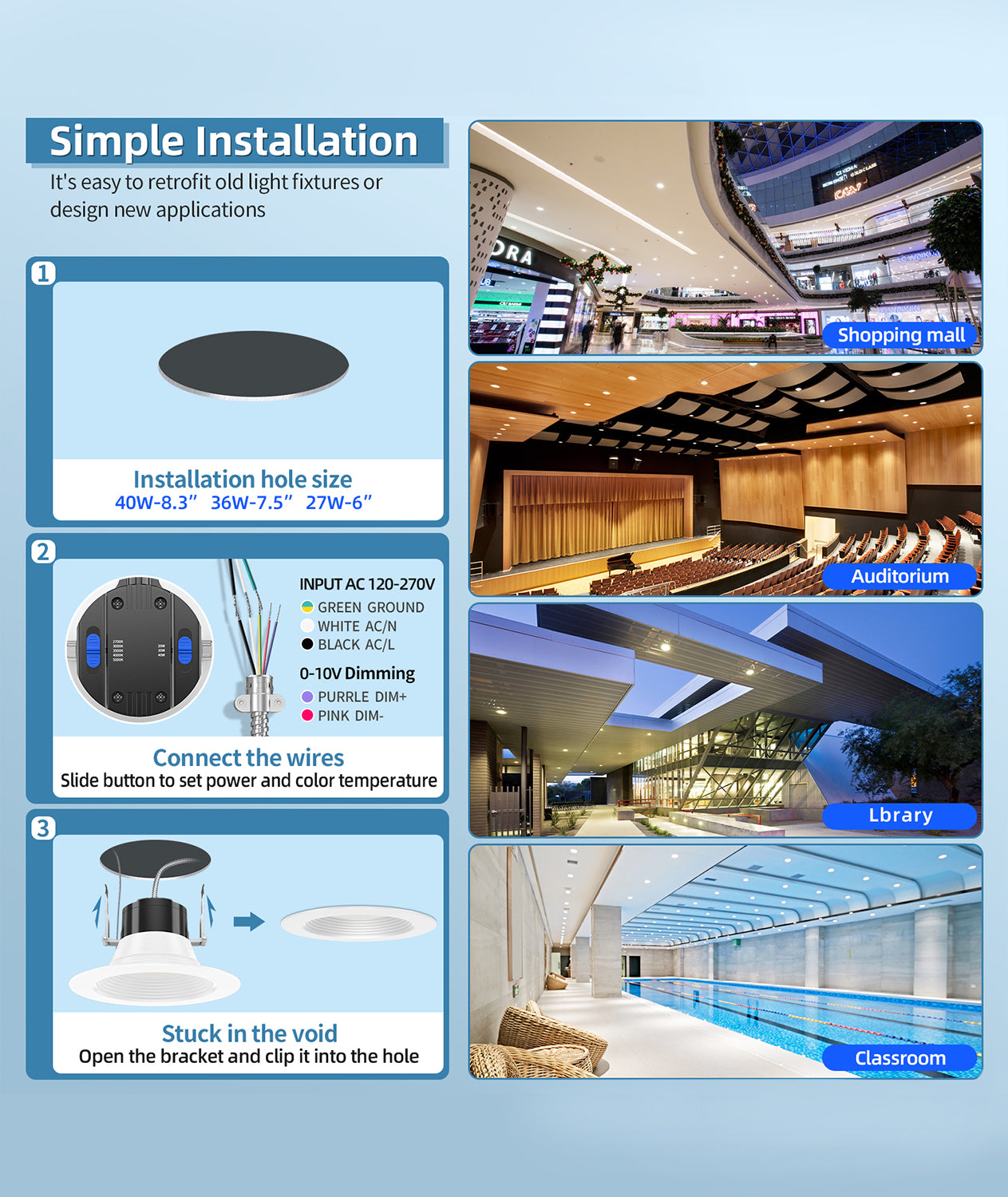

• Flexible Installation: Features secure spring-loaded retention clips for a seamless, flush installation in standard 10" commercial ceiling cutouts.

Applications

• Office Buildings
• Retail Stores
• Schools & Universities
• Healthcare Facilities
• Hospitality Projects
• Commercial Interiors
