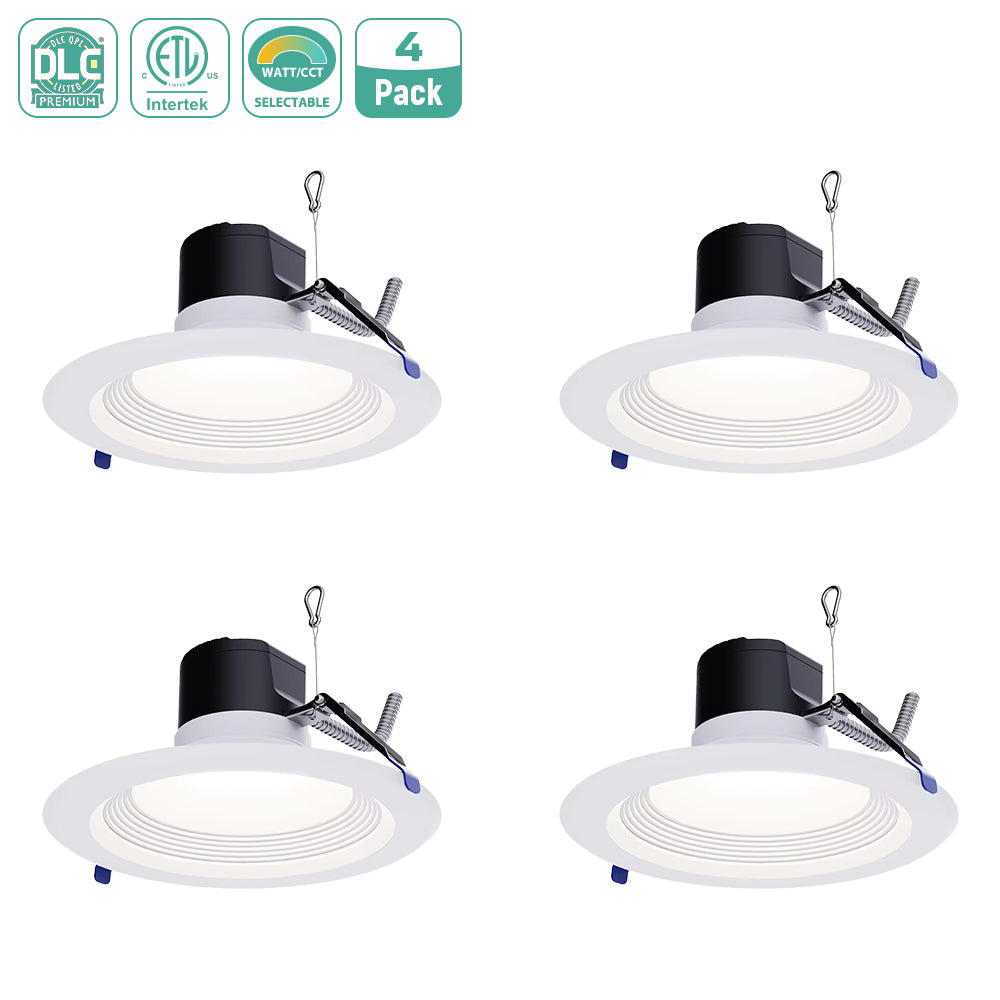

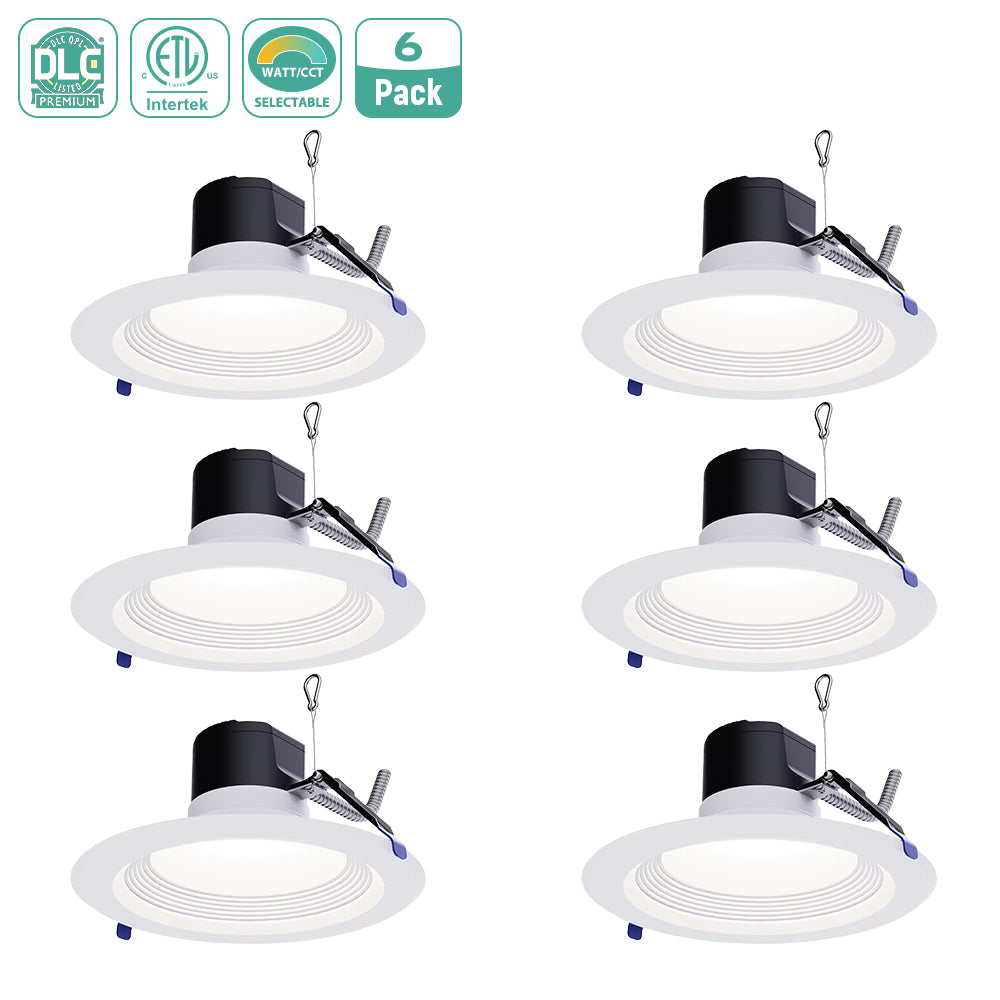

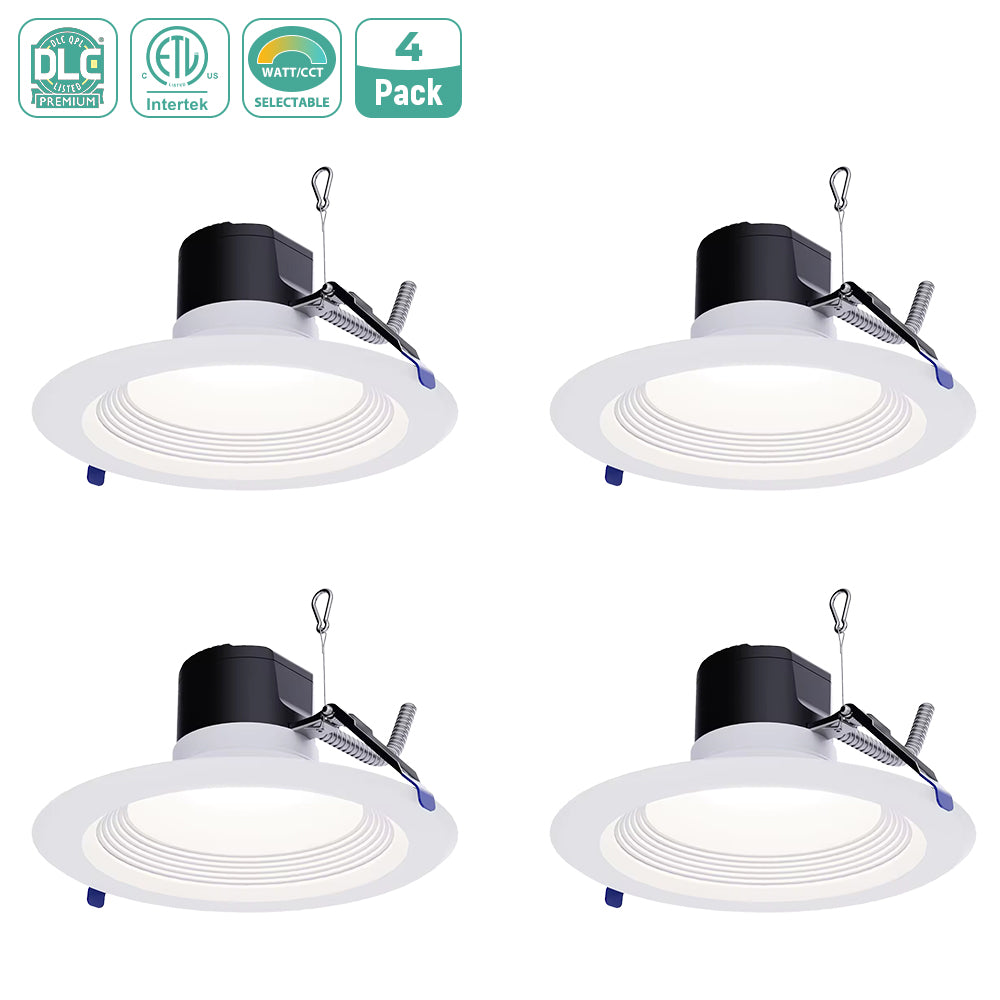

Commercial LED Recessed Downlight – 6", 8" & 10" Selectable Sizes

Engineered for modern commercial retrofits and new construction projects, this versatile Commercial LED Recessed Downlight series provides tailored, high-efficiency overhead illumination for office buildings, educational facilities, retail spaces, healthcare complexes, and hospitality environments. Available in industry-standard 6-inch, 8-inch, and 10-inch aperture sizes, each fixture features field-selectable wattage tuning and CCT color adjustment. Delivering smooth, glare-free light output up to 3,800+ lumens (at ~100+ lm/W efficacy), this commercial-grade downlight serves as a high-efficiency replacement for legacy 100W–250W compact fluorescent (CFL) or halogen architectural can lights, reducing energy costs by up to 80%.

• 3 Architectural Aperture Sizes (6", 8", & 10"): Complete sizing versatility designed to fit standard commercial frame-in kits and grid ceiling tiles across varied ceiling grid layouts and mounting heights.

• Field-Selectable Wattage Control: Integrated onboard DIP switch allows installers to customize lumen output on-site across low, medium, and high power modes to precise foot-candle specifications:

  • 6-Inch: 10W / 15W / 22W (Up to ~2,200 Lumens)

  • 8-Inch: 15W / 22W / 30W (Up to ~3,000 Lumens)

  • 10-Inch: 22W / 30W / 38W (Up to ~3,800 Lumens)

• Selectable CCT (3000K / 4000K / 5000K): Color-tunable switch allows effortless on-site adjustments between Warm White (3000K), Cool White (4000K), and Daylight (5000K) to harmonize with surrounding decor and lighting designs.

• Anti-Glare Regressed Optical Reflector: Engineered with a deep-set frosted diffuser and low-glare trim reflector that minimizes direct visual discomfort (UGR) while providing soft, uniform ceiling-to-floor light distribution.

• Universal Commercial Voltage (AC100–277V): Powered by an internal driver operating seamlessly on standard 120V, 208V, 240V, and 277V commercial power supply lines.

• 0–10V Continuous Dimming: Full, flicker-free dimming capability down to 10% utilizing standard 0–10V commercial wall dimmers or smart building management control systems.

• Commercial Grade & Certified: Built with a durable die-cast aluminum heat sink for passive thermal regulation; damp-location rated and IC/non-IC compatible; ETL/cETL Listed DLC Qualified for commercial utility rebate programs.

Available Model & Size Configurations

Application & Installation

• Flexible Applications: Ideal for new construction or retrofit upgrades in corporate offices, hallways, conference rooms, showrooms, and general commercial areas.
• Easy Installation: Heavy-duty construction with reliable spring clips for a secure, flush-to-ceiling recessed fit.
