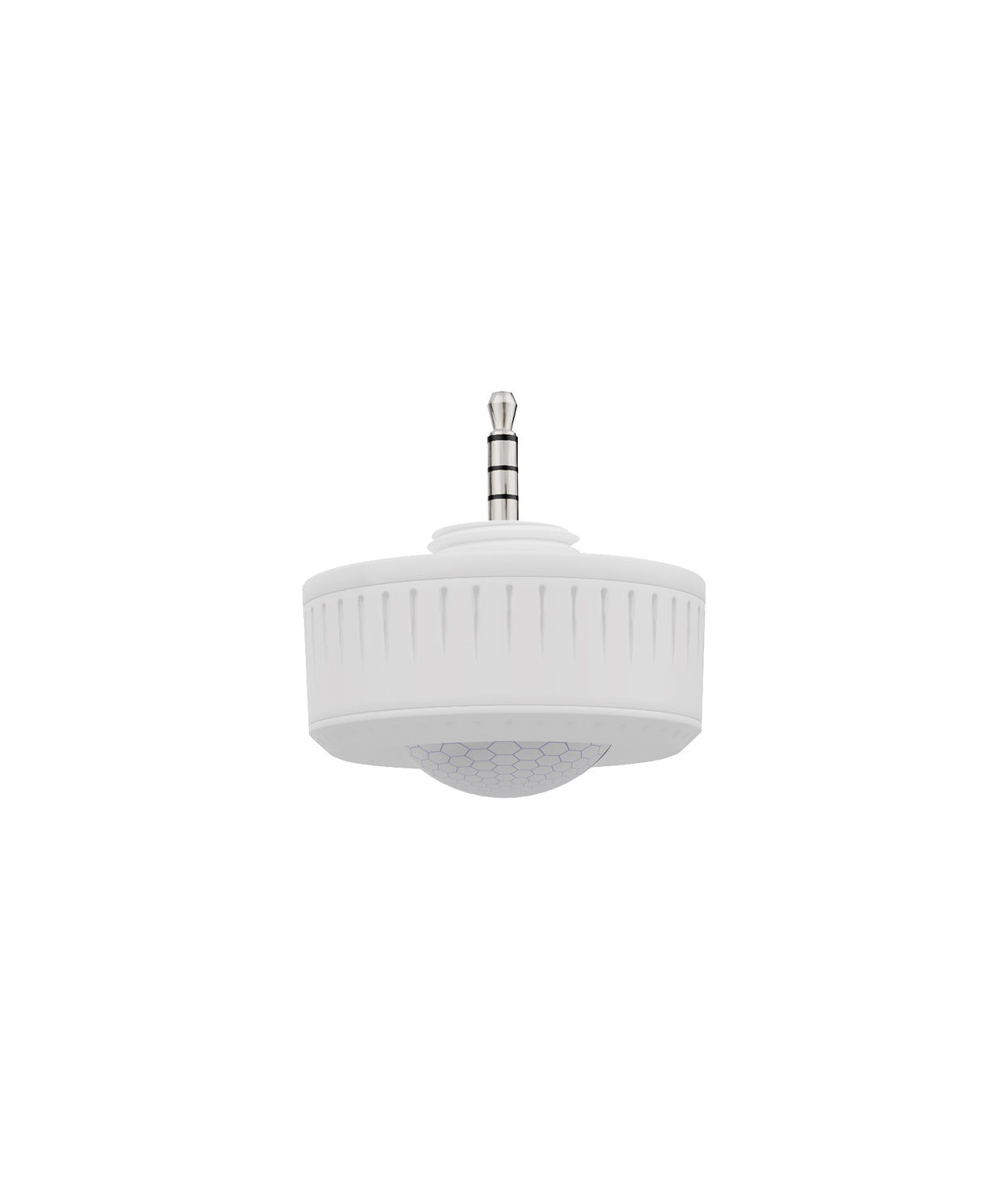

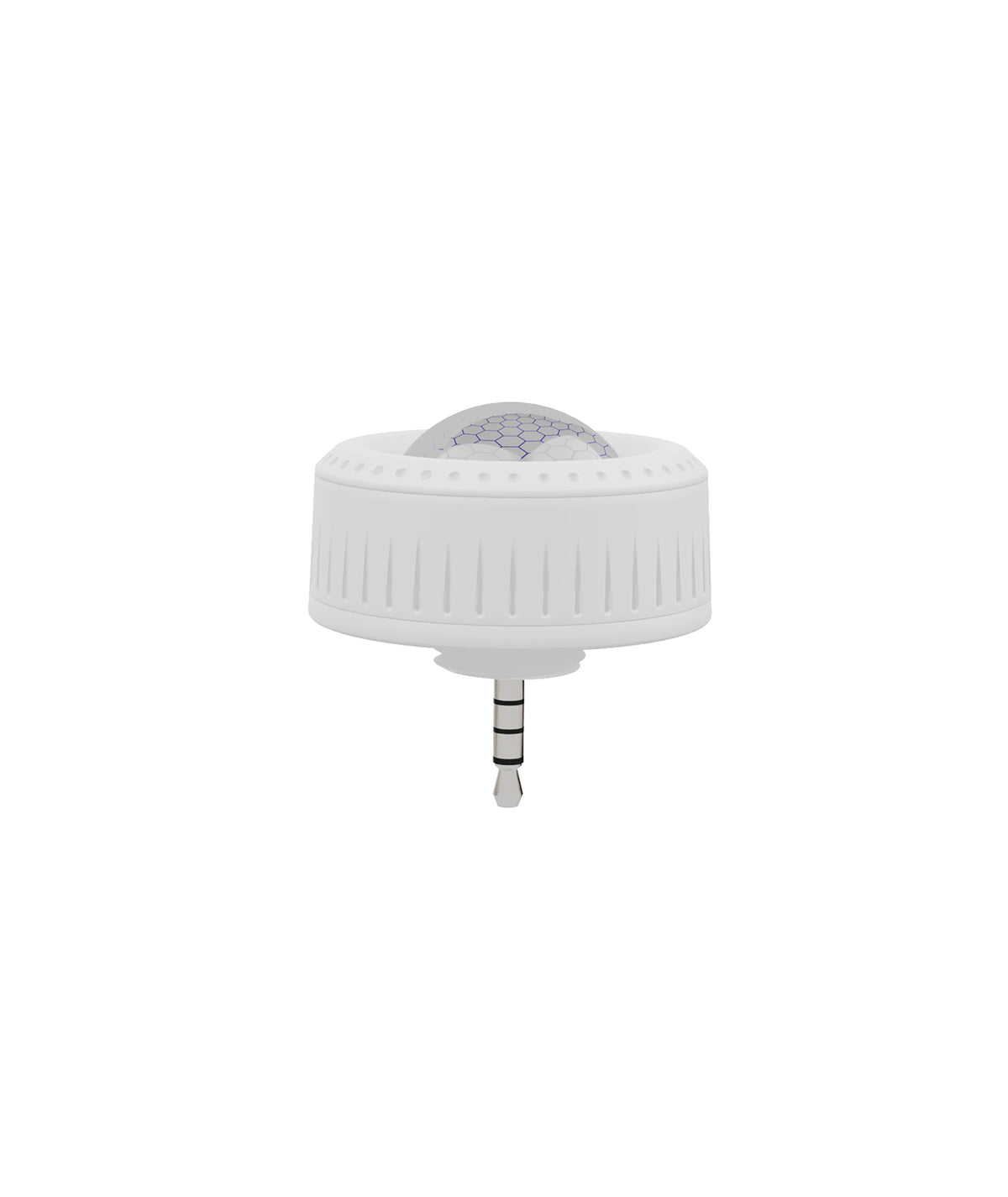

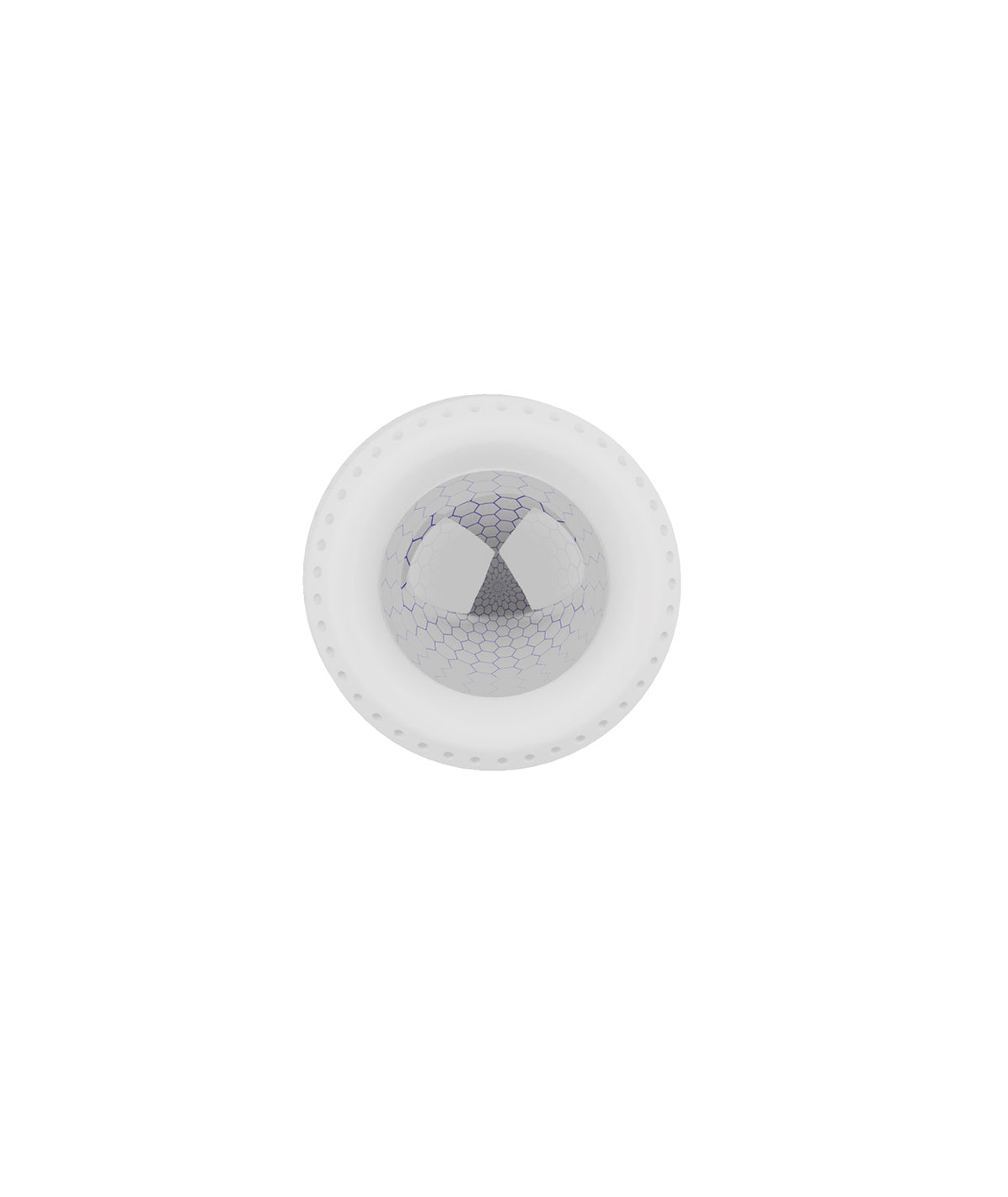

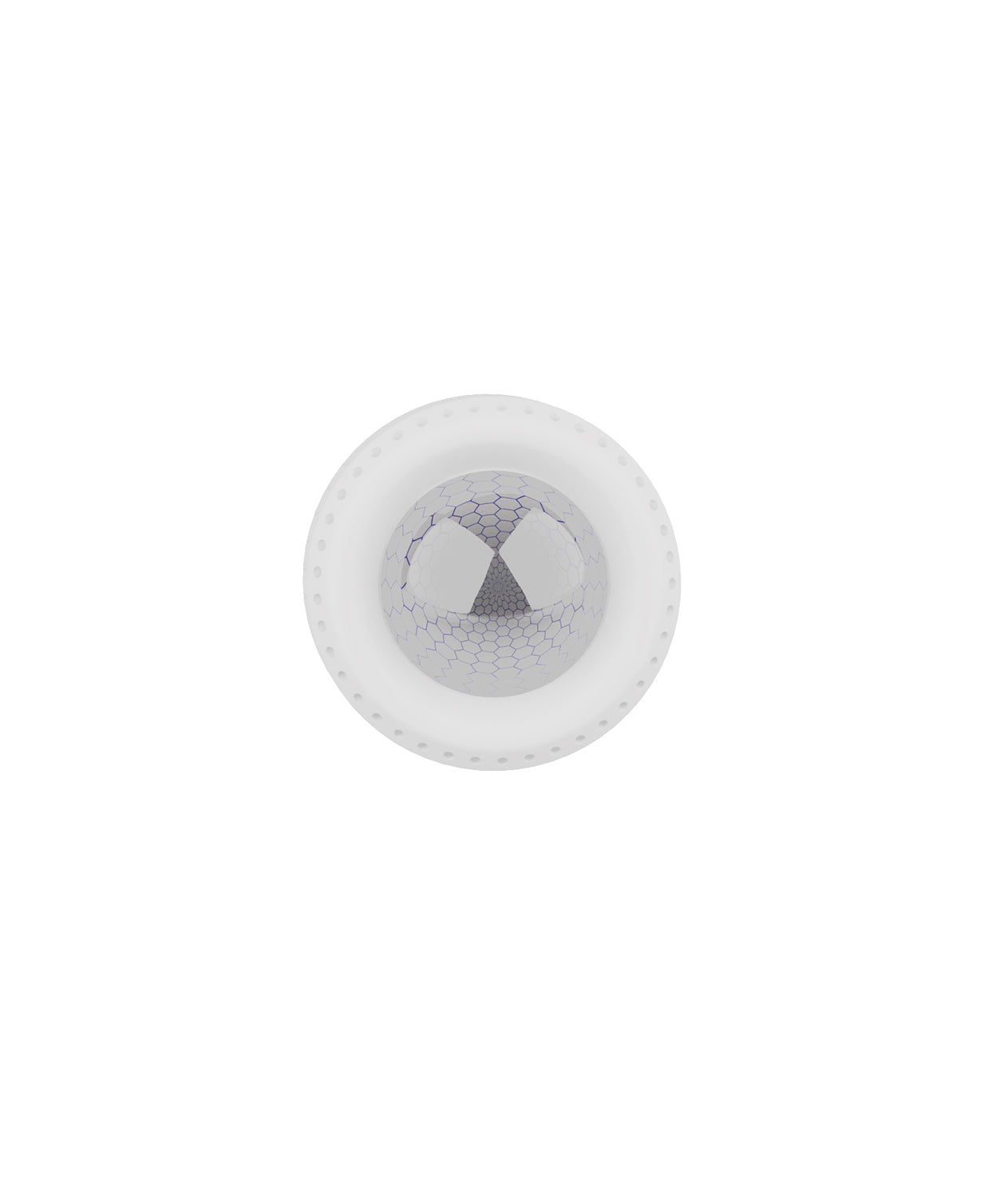

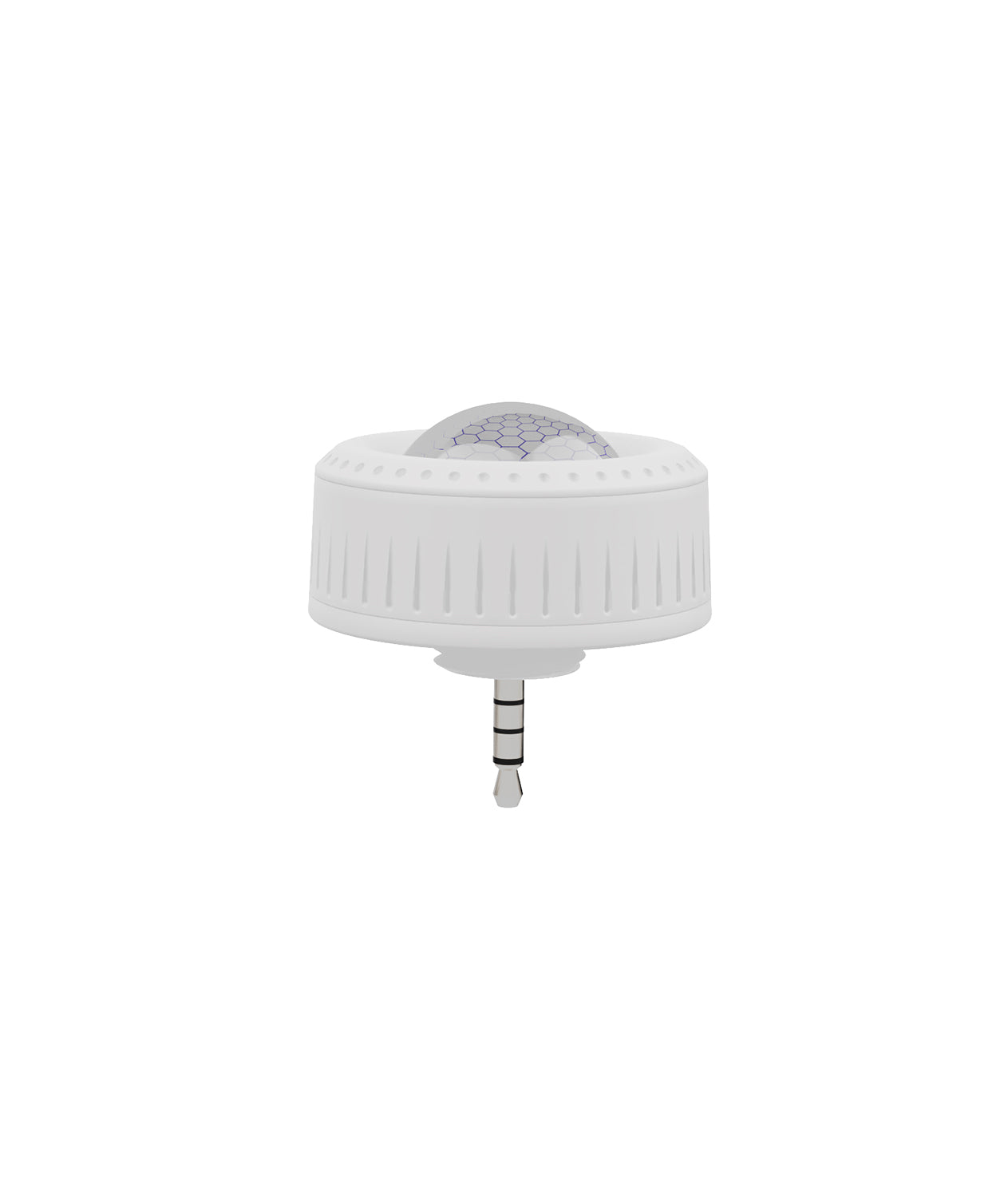

ANT-6-4T PIR Sensor ¨C Motion Detection with Extended Standby Control

Engineered for intelligent, energy-saving commercial and industrial lighting control, the ANT-6-4T Passive Infrared (PIR) Motion Sensor delivers reliable occupancy detection and flexible multi-level dimming control. Designed primarily for low-to-medium mounting heights—such as in offices, corridors, stairwells, storage areas, and parking garages—this compact sensor automatically adjusts fixture light levels based on real-time movement and ambient daylight. Featuring extended standby time control and continuous 0–10V dimming integration, it ensures spaces remain safely lit during occupied periods while drastically reducing power consumption when vacant.

• High-Precision PIR Motion Detection: Utilizes multi-segment Fresnel lens optics to detect thermal body movement across a 360-degree coverage area, providing instant response upon entry.

• Multi-Level Standby Dimming Control: Automatically dims connected fixtures to a preset low-light standby output (e.g., 10%, 20%, 30%, or 50%) after motion ceases, holding that level for a customizable extended standby period before turning off completely or remaining at low light for continuous security.

• Integrated Daylight Harvesting Photocell: Onboard daylight sensor measures natural ambient light, holding fixtures OFF or at reduced output when natural sunlight satisfies room illumination targets.

• 0–10V Continuous Dimming Port: Connects directly to 0–10V dimmable LED drivers for smooth, flicker-free transitions between full illumination, standby levels, and power-off states.

• Plug-and-Play Receptacle Interface: Features a standard 3.5mm jack, screw-in thread, or multi-pin quick connector, enabling fast, tool-free installation and replacement on compatible LED fixtures.

• Remote Control Configuration: Fully customizable settings—including PIR sensitivity, hold time, standby time, standby dimming ratio, and daylight thresholds—can be set on-site using a handheld wireless IR remote programmer.

• Energy Code Compliance: Helps commercial facilities meet strict ASHRAE 90.1, California Title 24, and IECC occupancy sensing and daylighting requirements; ETL Listed and RoHS compliant.

?? Key Features

• Full Detection Coverage (100%)
  Ensures maximum motion detection across the entire sensing area, providing reliable activation without blind spots.
• 5-Minute Hold Time
  Keeps lights on for 5 minutes after motion is detected, preventing frequent on/off switching and improving user comfort.
• Daylight Sensor Disabled
  Operates independently of ambient light levels, ensuring lighting is triggered purely by motion¡ªideal for controlled environments.
• Extended Standby Period (60 Minutes)
  Maintains a low-level or standby state for up to 60 minutes, enhancing safety and reducing complete shutdown cycles.
• Energy-Saving Automation
  Automatically turns lighting on/off based on occupancy, reducing unnecessary energy consumption.

?? Ideal Applications

Perfect for areas where consistent motion detection and delayed shut-off are required:

• Warehouses
• Parking garages
• Corridors & stairwells
• Storage rooms
• Industrial facilities

?? Specifications

• Detection Area: 100%
• Hold Time: 5 Minutes
• Daylight Threshold: Disable
• Standby Period: 60 Minutes

? Why Choose ANT-6-4T PIR Sensor?

This sensor is designed for simple, reliable motion control with minimal setup. Its full detection coverage and extended standby time make it an excellent choice for environments where safety, convenience, and energy savings are essential.
