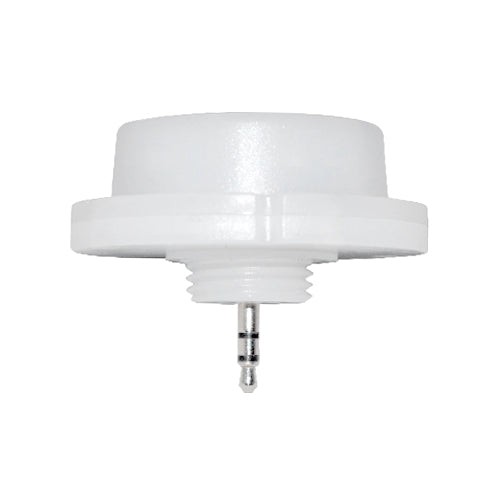

ANT-5-4T-PC Photoelectric Switch 12-24VDC Photocell Sensor

The ANT-5-4T-PC Photoelectric Switch is designed to automatically control lighting based on ambient light levels. It turns lights on when natural light is insufficient and keeps lights off when there is enough daylight, helping improve energy efficiency and reduce manual operation.

This photocell switch is suitable for street lighting, passage lighting, doorway lighting, and other outdoor or semi-outdoor lighting control applications. Built with electronic circuitry, it provides fast response performance with a 5-second time delay to help prevent mis-operation caused by spotlight or lightning interference.

With a wide operating temperature range of -40°F to +158°F (-40°C to +70°C), 99%RH humidity rating, and low power consumption, this photoelectric switch is a reliable lighting control accessory for compatible LED fixtures and lighting systems.

Key Features

• Model: ANT-5-4T-PC
• Photoelectric switch / photocell sensor
• Rated voltage: 12-24VDC
• Max current sink: 25mA
• Max power consumption: 0.4W
• Operate level: 10-20Lx On / 30-80Lx Off
• 5-second time delay to help avoid false triggering
• Automatically switches lights on when ambient light is insufficient
• Keeps lights off when sufficient natural light is detected
• Humidity rating: 99%RH
• Operating temperature: -40°F to +158°F (-40°C to +70°C)
• Suitable for street lighting, passage lighting, doorway lighting, and lighting control applications
• UL Listed and compliant with UL773A
