ANT-1P-5T PIR Motion Sensor for LED Light | 3.5mm Standard

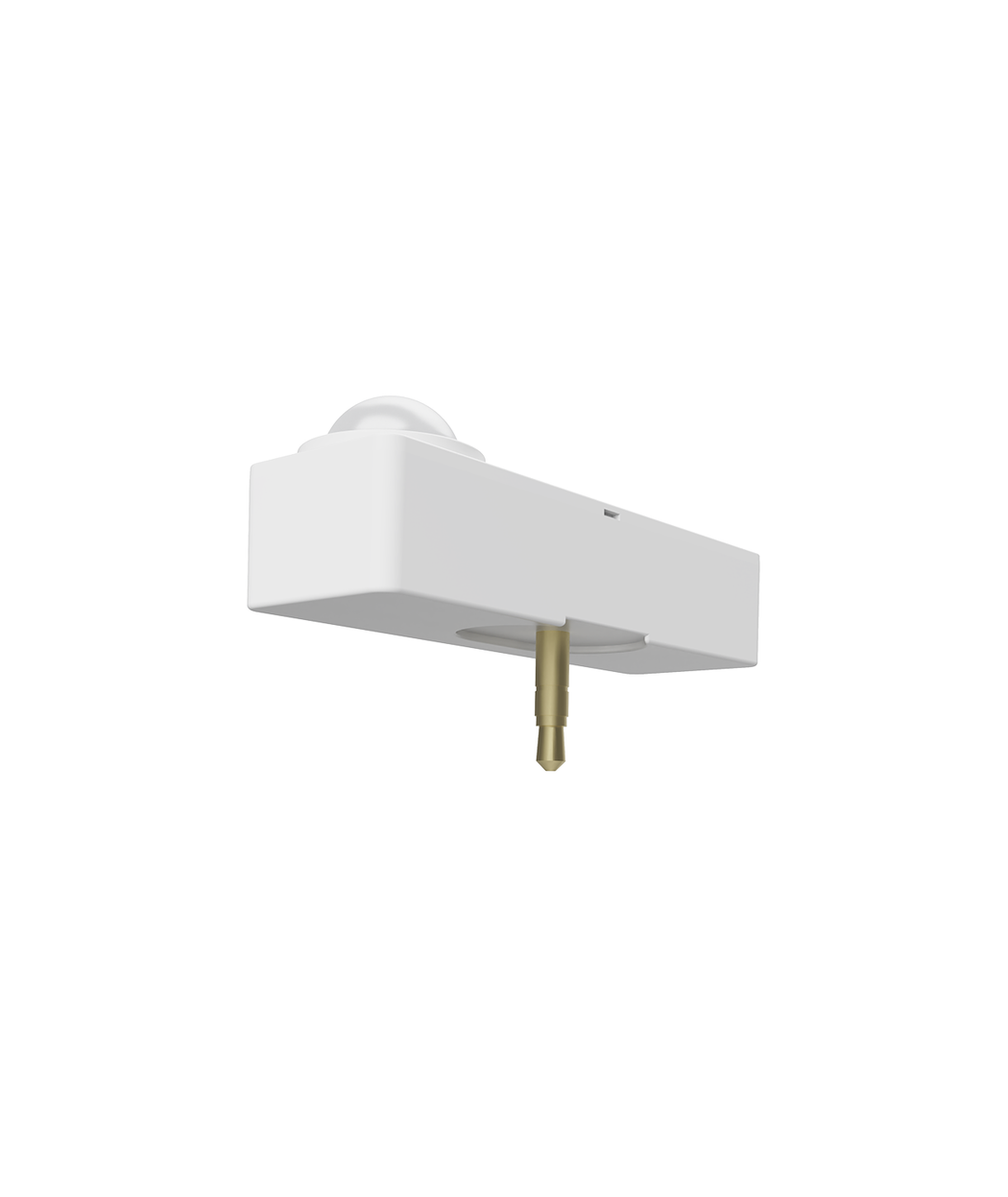

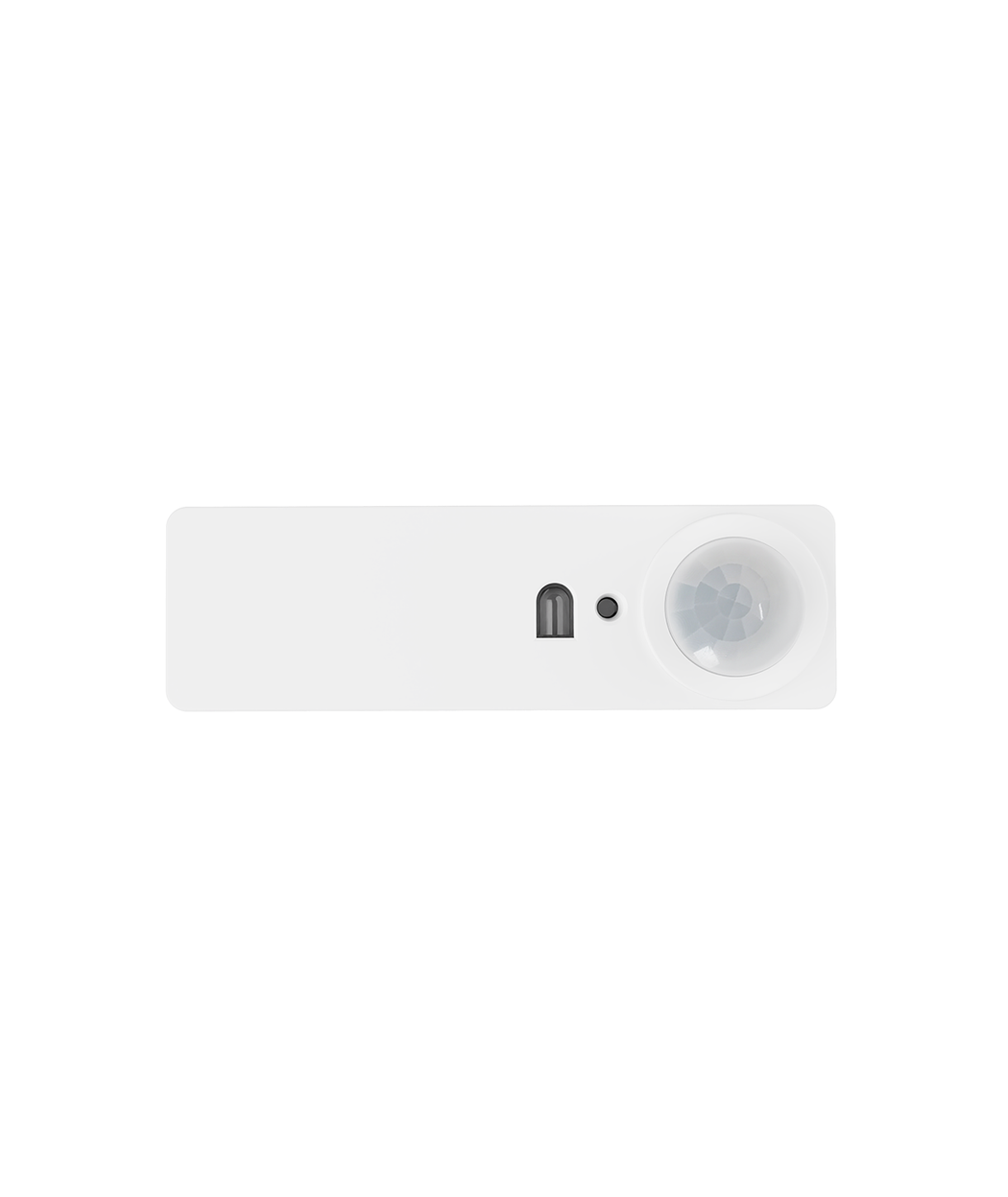

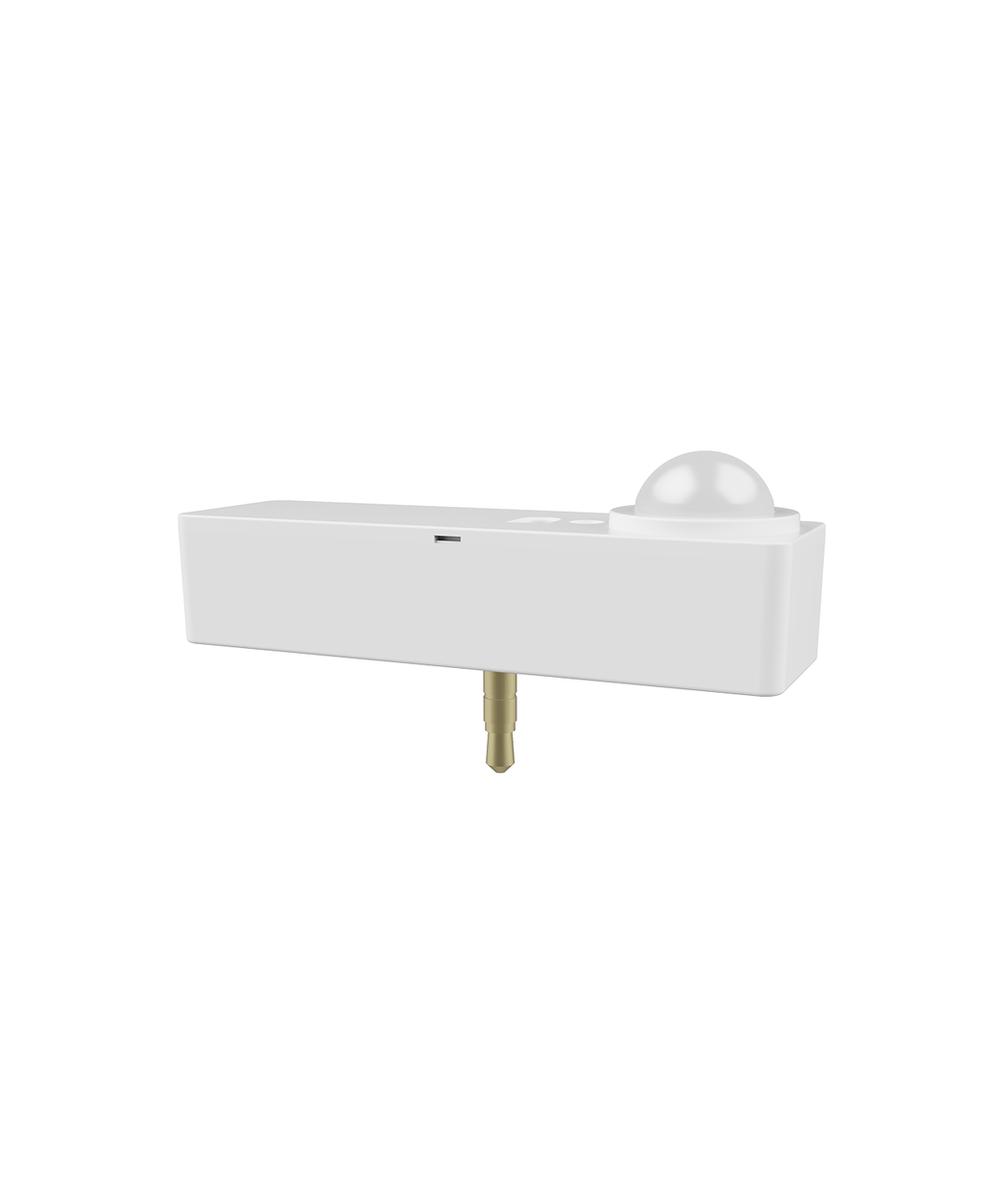

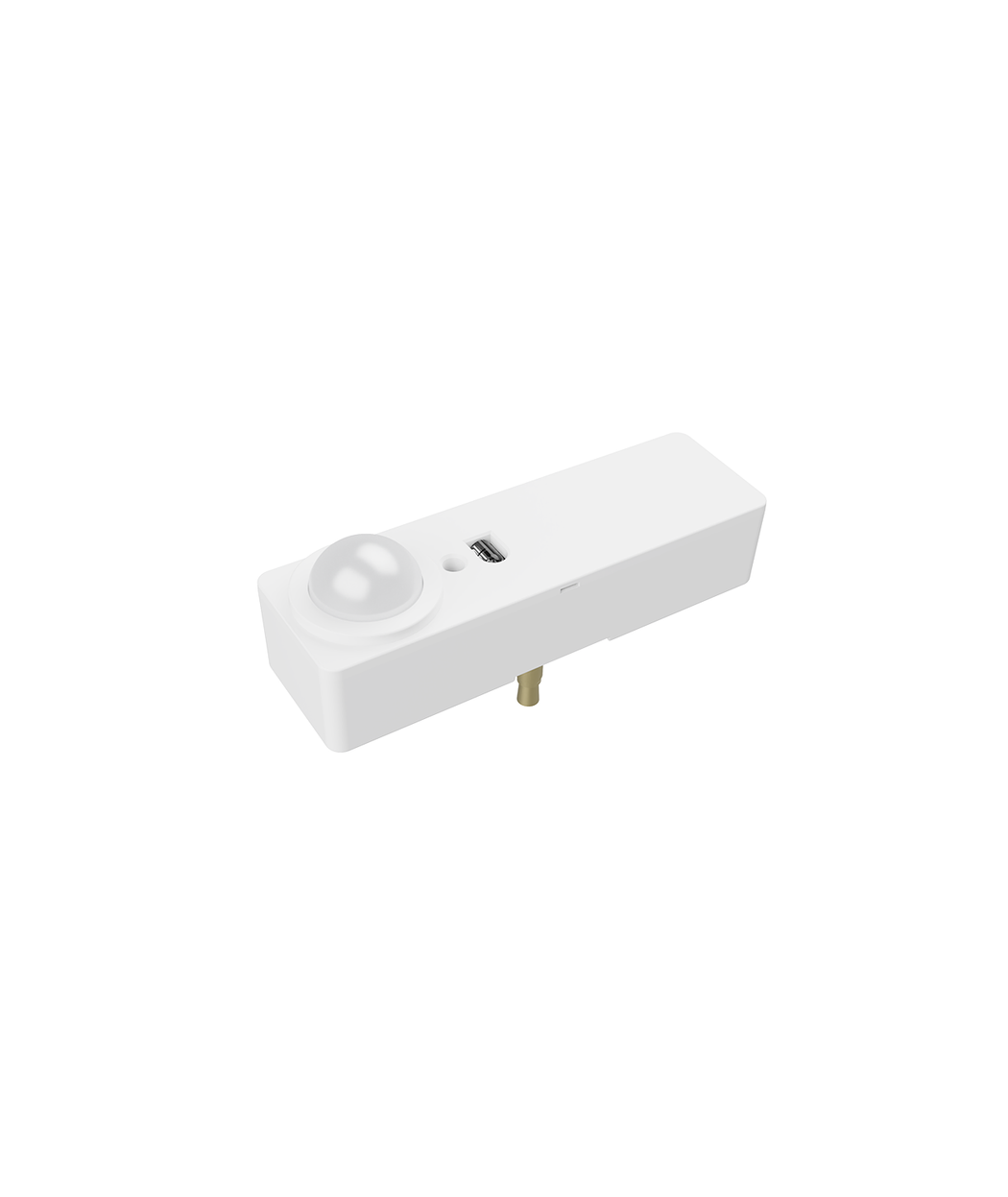

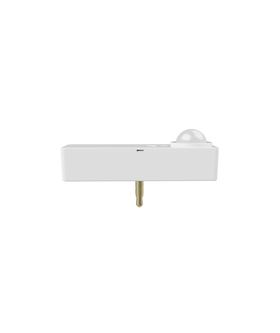

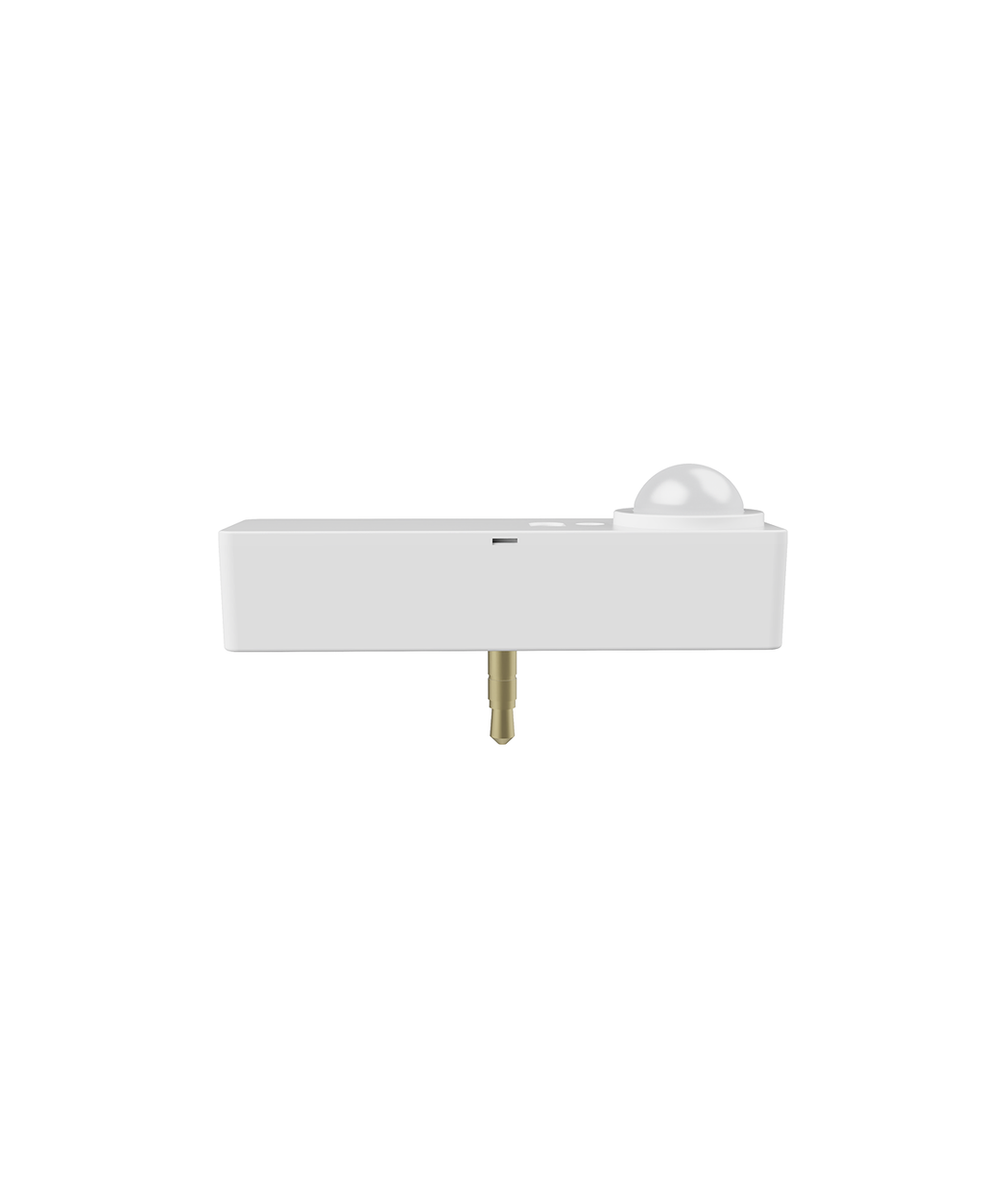

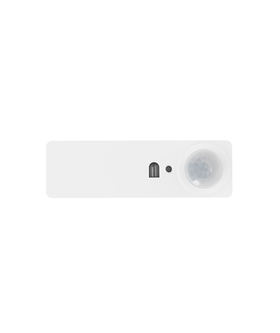

ANT-1P-5T (3.5mm) PIR Motion Sensor for LED Light

Engineered for standalone commercial and industrial lighting automation, the ANT-1P-5T Passive Infrared (PIR) Motion Sensor delivers reliable occupancy detection and energy management without requiring complex network setup. Designed with a standard 3.5mm AUX audio jack connector, this low-voltage sensor plugs directly into sensor-ready LED luminaires—such as linear high bays, strip lights, and outdoor fixtures—equipped with a compatible center receptacle. It automatically controls light levels based on space occupancy and ambient daylight, delivering substantial energy savings out of the box.

• 3.5mm Audio Jack Receptacle Mount: Features a tool-free, plug-and-play 3.5mm AUX connector for effortless, field-installed mounting on sensor-ready LED fixtures without opening the electrical compartment.

• Passive Infrared (PIR) Motion Detection: Detects motion via thermal signatures to reliably switch or dim fixtures upon occupant entry and return to standby or off-state when spaces are vacant.

• Integrated Daylight Harvesting Photocell: Automatically measures ambient light levels to prevent fixtures from turning on when sufficient natural sunlight is present, maximizing utility savings.

• Bi-Level Standby Dimming Control: Delivers multi-tier illumination (100% full brightness on motion, customizable dimming level during hold time, and off or low standby when vacant).

• Low-Voltage Operation (12V DC): Powered directly by the LED fixture’s internal auxiliary 12V DC driver output, eliminating the need for separate power packs or high-voltage wiring.

• 360° Multi-Zone Detection Coverage: Precision-engineered optical Fresnel lens provides high-sensitivity 360-degree detection coverage, suitable for mounting heights up to 40 feet.

• IR Remote Configurable: Allows electrical contractors and facility managers to easily adjust hold times, detection range, daylight thresholds, and dimming levels from the floor using a handheld infrared remote control.

• Code Compliance & Rebate Ready: Meets stringent commercial energy codes (including ASHRAE 90.1, IECC, and California Title 24) and supports DLC utility rebate requirements.

Key Features

PIR Motion Detection
Automatically turns lights on when motion is detected and off when the area becomes vacant.

3.5mm Audio Jack Connection
Designed with a standard 3.5mm sensor connector for easy installation.

Energy Saving Control
Helps reduce unnecessary lighting usage and improves energy efficiency.

Quick Installation
Plug-and-play design allows fast field installation without complex wiring.

Wide Compatibility
Compatible with LED lights with a 3.5mm sensor base, including:

J-T2 LED Troffer Light
J-T4 LED Troffer Light
J-B2 LED Backlit Panel Light
J-B4 LED Backlit Panel Light
J-B14 LED Backlit Panel Light

The sensor integrates seamlessly with the fixture sensor port, allowing easy upgrades for motion-activated lighting systems

Specifications

Sensor Type: PIR Motion Sensor
Connector Type: 3.5mm Audio Jack
Installation: Plug-in Sensor Base
Compatible Fixtures: LED Troffer / LED Panel Light
Application: Office, Commercial Buildings, Schools, Retail Stores.
