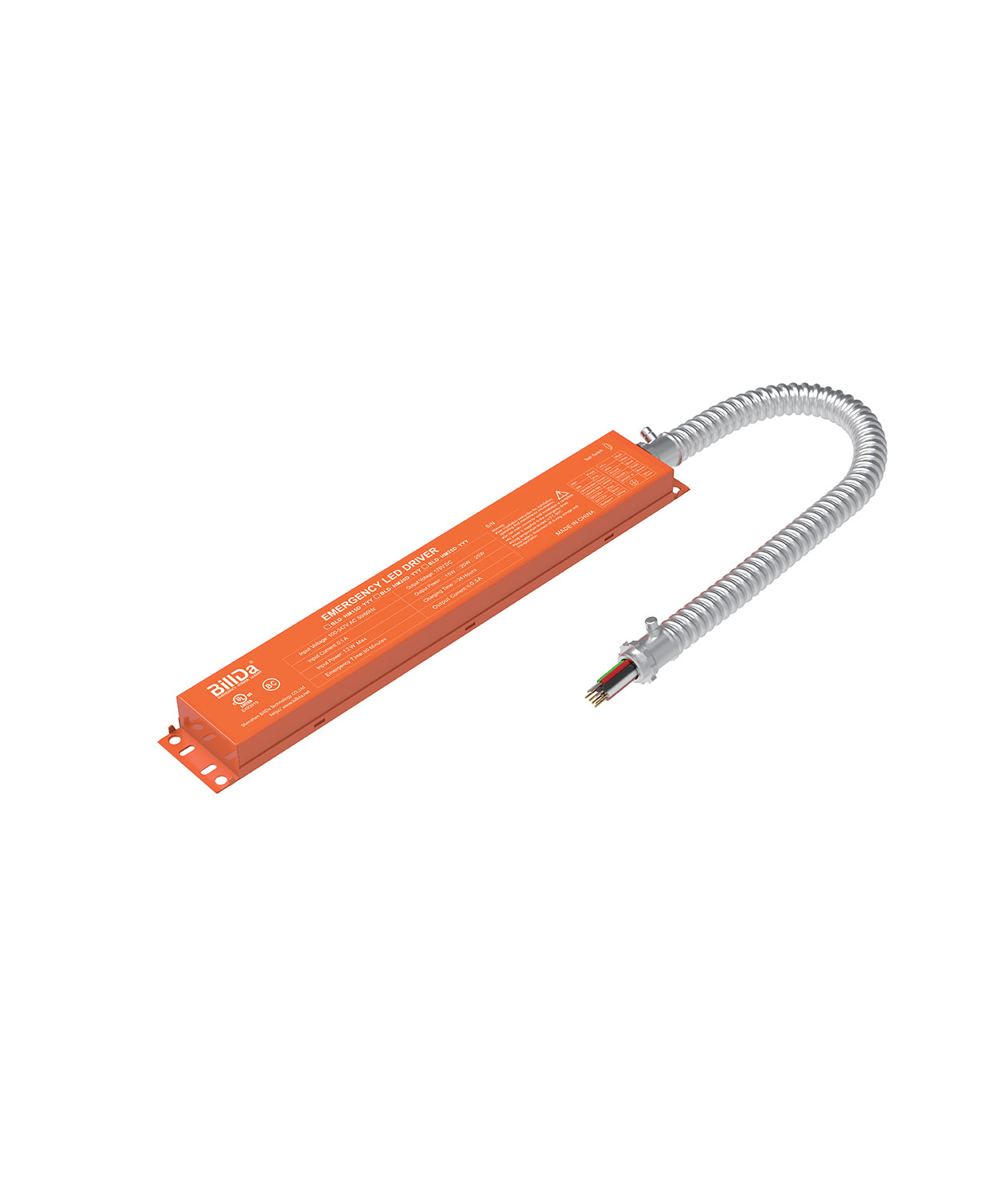

8W Emergency Driver ¨C 90-Minute Backup | UL Listed | High Power Output

8W Emergency LED Driver ¨C Reliable Backup Power Solution

Engineered to supply reliable, instant-on emergency lighting during utility power outages, this 8W Emergency LED Driver delivers emergency illumination for commercial and industrial LED fixtures. Operating on a universal AC input, this high-efficiency backup driver automatically senses line-voltage loss and instantly transfers connected luminaires to internal battery power, maintaining a constant 8W output for a minimum of 90 minutes. Designed to maximize lumen output per watt, it provides high-visibility emergency egress lighting for office troffers, LED panel lights, strip lights, downlights, and linear commercial fixtures while fully satisfying local building life-safety codes.

• 90-Minute Emergency Backup: Heavy-duty, high-temperature rechargeable battery system ensures a full 90 minutes of emergency illumination during main power failures.

• 8W Constant Power Output: Delivers steady, flicker-free power (~800–1,000+ emergency lumens depending on fixture efficacy) across the entire 90-minute cycle without brightness decay.

• High-Efficacy Driver Architecture: Engineered to convert stored battery energy into high lumen output, maximizing ground-level illumination along paths of egress and emergency stairwells.

• Universal Input Voltage (AC100–277V): Compatible with standard commercial power systems (120V, 208V, 240V, and 277V), simplifying inventory and field deployment across diverse job sites.

• Automatic Instant-Transfer Relay: Solid-state switching circuitry detects AC power loss in under a second, transitioning fixtures immediately to emergency backup mode without prolonged blackout gaps.

• Compact, Flexible Mounting Enclosure: Slim metal enclosure fits easily into driver raceways, fixture compartments, or adjacent junction boxes for both factory installation and field retrofit upgrades.

• Integrated Test Switch & Charging Indicator: Includes a illuminated push-to-test switch and dual-color LED charging status indicator for quick monthly code compliance checks and diagnostic monitoring.

• UL 924 Listed & Code Compliant: Tested and certified to meet stringent UL 924 Emergency Lighting Standards, NFPA 101 Life Safety Code, NEC mandates, and OSHA safety regulations; CEC Title 20 efficiency compliant.

Key Features

• Wide Input Voltage
  Supports 100¨C347Vac, 50/60Hz, making it suitable for diverse electrical systems across commercial environments.
• Stable Emergency Output
  Provides up to 8W output power with a maximum 170VDC output voltage, ensuring consistent illumination during power failure.
• Long Emergency Duration
  Delivers up to 90 minutes (1.5 hours) of backup lighting, meeting standard emergency lighting requirements.
• Energy Efficient Operation
  Low input current (0.1A max) and 12W max input power for optimized energy usage.
• Seamless Integration
  Designed to connect directly to the LED driver¡¯s AC input, compatible with both dimmable and non-dimmable fixtures.
• Built-in Test Function
  Equipped with a self-test switch for easy maintenance and operational checks.

Applications

Ideal for use in:

• Warehouses
• Commercial buildings
• Offices & retail spaces
• Industrial facilities
• Emergency lighting systems

Specifications

• Input Voltage: 100¨C347Vac, 50/60Hz
• Input Current: 0.1A Max
• Input Power: 12W Max
• Output Voltage: Up to 170VDC
• Output Power: 8W
• Emergency Duration: 1.5 Hours

Why Choose This Emergency Driver?

This 8W emergency LED driver provides a cost-effective and reliable safety solution, ensuring your lighting remains operational when it matters most. With wide voltage compatibility and easy integration, it¡¯s the perfect upgrade for modern LED lighting systems.
