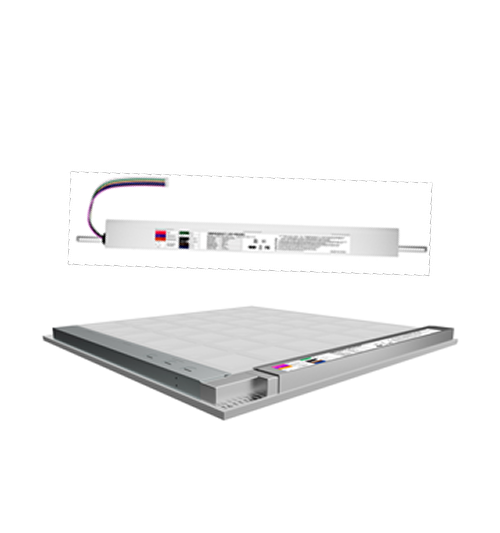

EMP-08170DI-HY-L – slim emergency battery driver and mounting example on the back of an LED panel
EMP-08170DI-HY-L – slim emergency battery driver and mounting example on the back of an LED panel

8W LED Emergency Driver for Backlit Panel, 100–347V, 90-Minute Backup | 20-Pack

SKU: EMP-08170DI-HY-L
$859.96 USD

Bulk Savings

automatically applied on carts over $500  - Learn more

  • Voltage : 100–347VAC
  • Wattage : 8W emergency output
  • Warranty : 5 years
Read More
In stock
Shipped within the United States, 2-5 day delivery

Light Your Project with Confidence

Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.

8W Emergency Battery Backup for Backlit Panel Lighting

This LED emergency driver provides 8W emergency power for 90 minutes and accepts 100–347VAC input. Model EMP-08170DI-HY-L uses a lithium-ion battery and is intended for backlit panel applications.

The supplier lists a connected-fixture range of 1–60W. Emergency output and normal fixture wattage are different ratings; select this unit only after checking the existing LED driver's compatibility.

Key Features

  • 8W emergency power.
  • 90-minute battery backup duration.
  • 100–347VAC input voltage.
  • Connection to the LED driver's AC input.
  • Sold in cartons of 20 pieces with a 5-year warranty.

Installation and Compatibility

For commercial lighting upgrades and replacement applications. A qualified electrician must verify the fixture, driver, wiring and installation requirements using the model-specific instructions. Fixture type and wattage alone do not establish compatibility.

Specifications

Model EMP-08170DI-HY-L
Emergency Power 8W
Input Voltage 100–347VAC
Emergency Duration 90 minutes (1.5 hours)
Battery Type Lithium-ion
Intended Fixture Type Backlit Panel
Fixture Wattage Range 1–60W; verify driver compatibility before installation
Connection Wires to the LED driver's AC input
Warranty 5 years
Sales Unit 20 pieces per carton

Frequently Asked Questions

Does this supply the fixture's full rated wattage?

No. Emergency output is 8W. The 1–60W range describes the intended connected fixture rating, not emergency output.

How long is the emergency runtime?

The supplier specifies 90 minutes (1.5 hours) of emergency operation.

Which fixtures is it intended for?

This model is intended for backlit panel fixtures in the 1–60W range. Confirm the existing LED driver's electrical and wiring compatibility before ordering.

How is it connected?

It is wired to the existing LED driver's AC input. Follow the model-specific installation instructions and have a qualified electrician verify compatibility.

Is this sold as a full carton?

Yes. The listed price is for one carton containing 20 pieces. Quantity 1 in the cart means 20 pieces. Contact JCE Lighting for project quantities.

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Specifications

Wattage 8W emergency output
Voltage 100–347VAC
Applications Backlit Panel
Size 9
Warranty 5 years
