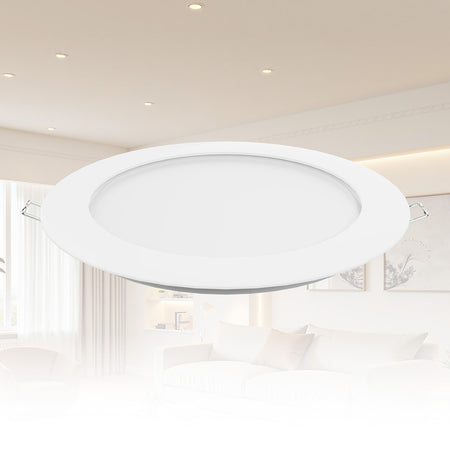

2-Hour Fire Rated 5CCT Slim LED Recessed Downlight, 4 & 6 Inch, 120V

This 5CCT fire rated LED recessed downlight is a 120V round slim panel fixture for fire-rated construction, based on the provided Excel data and Gielight specification sheet. It supports selectable color temperature, Triac dimming, and wet-location use.

Key Specifications

• Product type: Fire rated LED recessed downlight / round slim panel
• Available sizes: 4 inch and 6 inch
• Input voltage: 120V
• Frequency: 60Hz
• Power factor: >0.9
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 90
• Beam angle: 120 degrees
• Dimming: Triac dimming, 100%-10%
• Rating: Suitable for wet locations
• Fire rating: 2-hour fire rating
• Fire test standards: UL 263, ASTM E119, CAN ULC S101

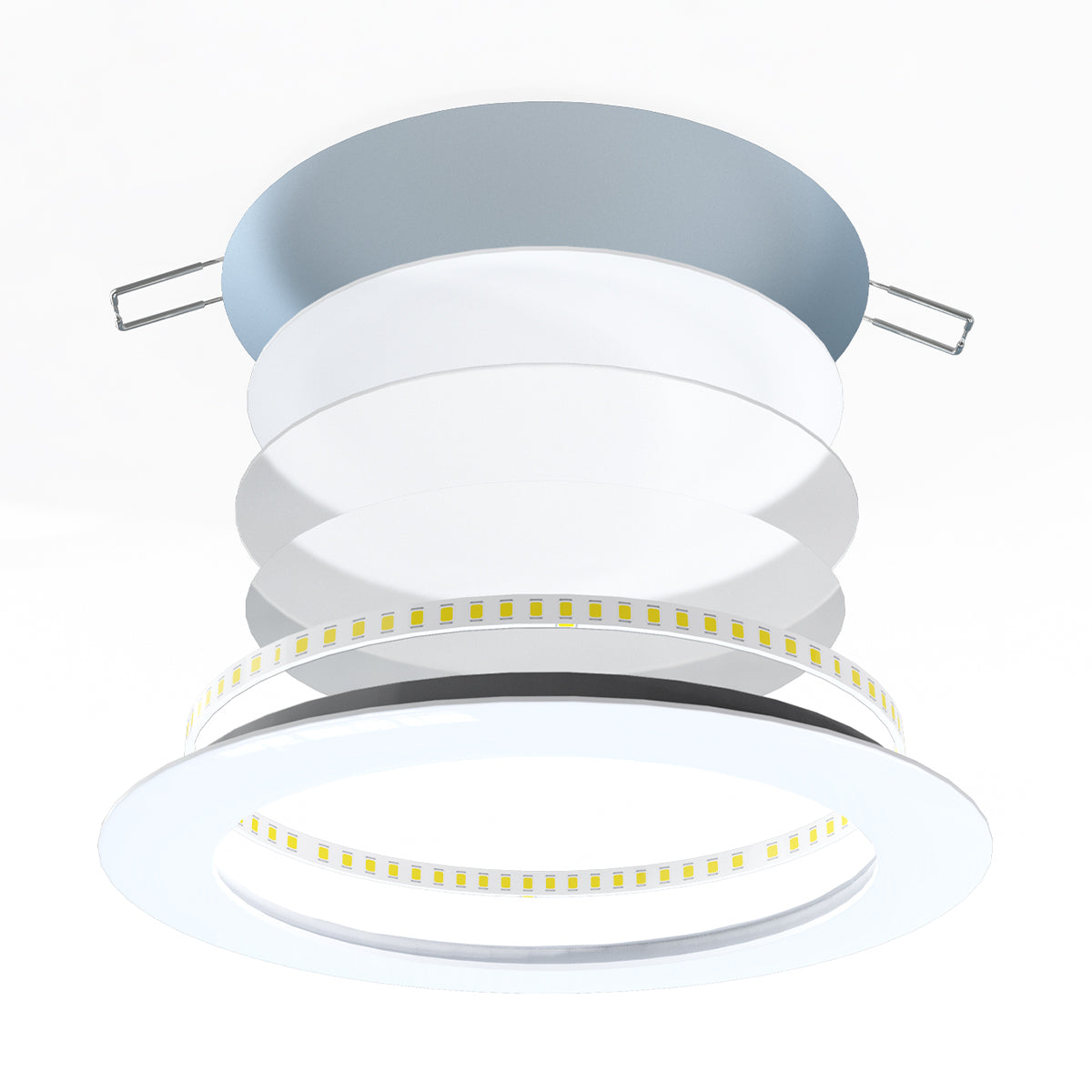

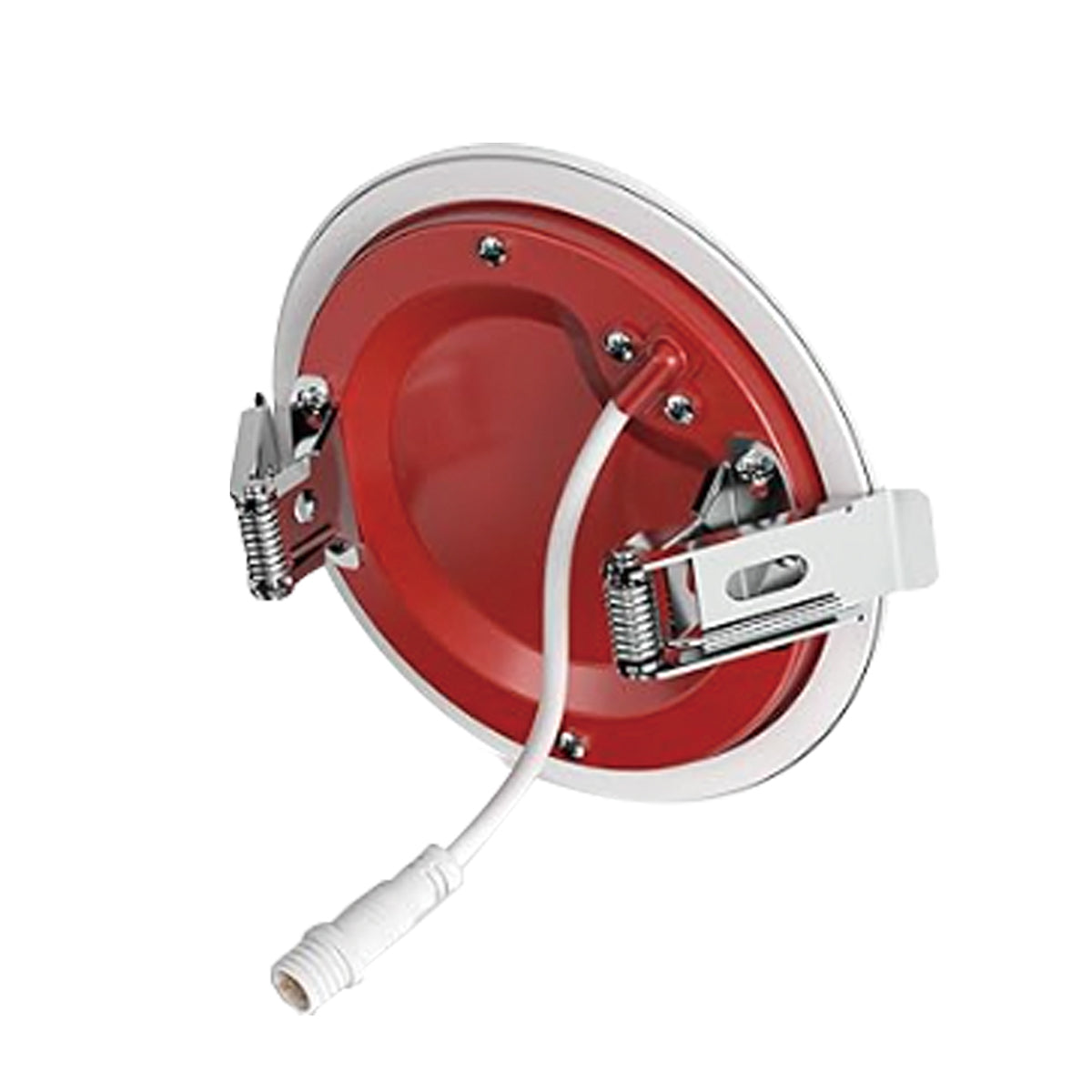

• Material: Aluminum + steel casing
• Lifespan: >=50,000 hours
• Operating temperature: -4F to 113F (-20C to 45C)
• Warranty: 5-year limited warranty
• Listing: ETL Listed

Installation and Use

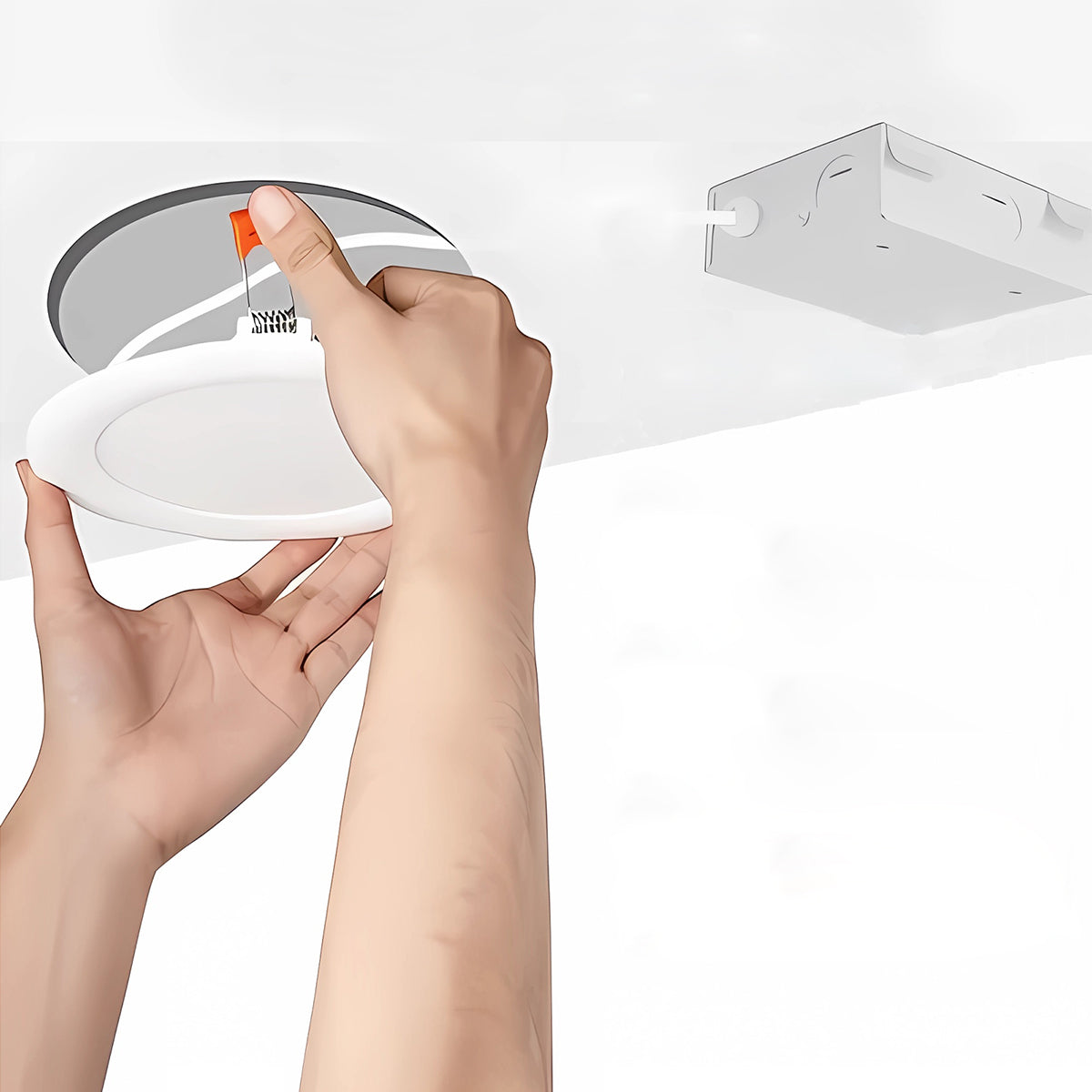

This product is intended for use in fire-rated constructions for up to a maximum of 2 hours. The specification sheet notes wet-location use for bathrooms, laundry rooms, porches, and garage work rooms. Installation guidance references a J-Box in the ceiling beam and insertion into a drywall opening.

Available Variants

• RP-4E12W-5CTWH-FR: 4 inch, 12W, 120V, price $9.99, US stock 1008, carton 24 pcs, 44 x 27.2 x 31 cm, 11.2 kg
• RP-6E15W-5CTWH-FR: 6 inch, 15W, 120V, price $11.99, US stock 1130, carton 24 pcs, 38.6 x 36.5 x 39 cm, 15.2 kg

Lumen Notes From Specification Sheet

• The specification sheet states that actual lumens may vary based on sample setting.
• 6 inch, 15W is listed at 1200 lm.
• The sheet also lists 4 inch lumen examples of 630 lm and 900 lm, while the Excel-listed 4 inch SKU is 12W.

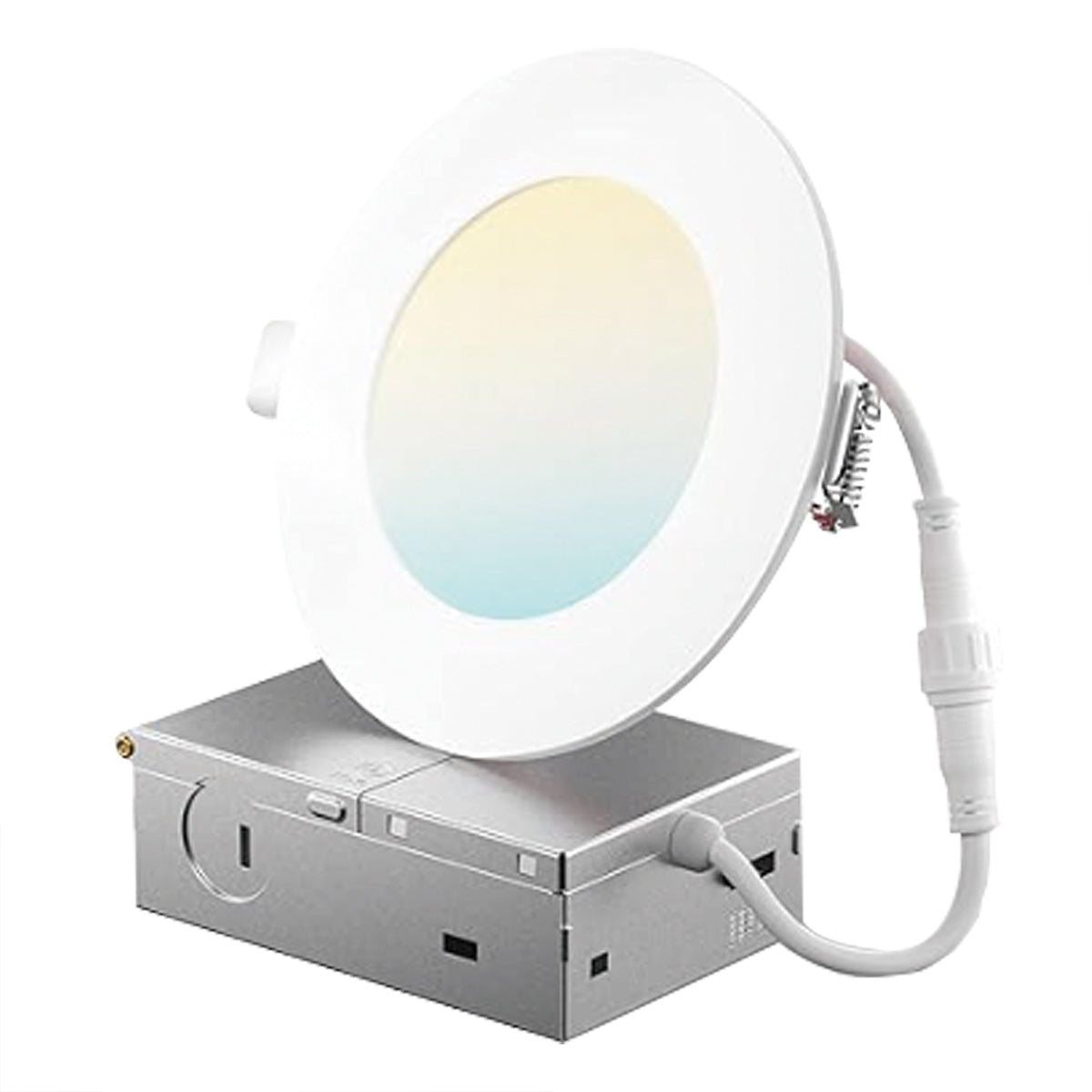

Included / Referenced Accessories

• J-Box driver
• Connector
• Hole cut-out card
