4FT LED Wraparound Light 20W/30W/40W Wattage & 5CCT Selectable 5000LM 120-277V
LUMENS5000LM
WATTAGE20W/30W/40W
VOLTAGE120–277V
CCT3500K–6500K (Selectable)
WARRANTY5 year
4FT LED Wraparound Light 20W/30W/40W Wattage & 5CCT Selectable 5000LM 120-277V
DIRECT PRICE
$166.99
$189.99
● Dallas, TX & LA, CA Hubs · Ships in 24h
Bulk Savings
Eligible cart savings on orders over $2000
4FT LED Wraparound Light 20W/30W/40W Wattage & 5CCT Selectable 5000LM 120-277V
3500K / 4000K / 5000K / 5700K / 6500K / 4-Pack
-12%
$189.99
$166.99
Large Volume Quote Request
Volume discounts automatically apply at checkout when the combined total value of all products in your cart exceeds $2000.
| Spend | Save |
|---|---|
| $2,000 – $2,999 | 7% |
| $3,000 – $3,999 | 8% |
| $4,000 – $4,999 | 9% |
| $5,000 – $6,999 | 10% |
| $7,000 – $9,999 | 12% |
| $10,000 – $19,999 | 15% |
| $20,000 – $49,999 | 20% |
| Over $50,000 | 25% |
*Discounts apply to all products; rates may vary by product.
For assistance with a large-volume order, contact our support team.
Rates and eligibility are confirmed at checkout. This window does not apply a discount by itself.
Halloween Sale Coupons
Save up to $280 on your order!
$30 OFF
On orders $300+
Code:
HALLOWEEN30
$60 OFF
On orders $500+
Code:
HALLOWEEN60
$130 OFF
On orders $1000+
Code:
HALLOWEEN130
$280 OFF
On orders $2000+
Code:
HALLOWEEN280
Coupon eligibility and any combination restrictions are determined at checkout.

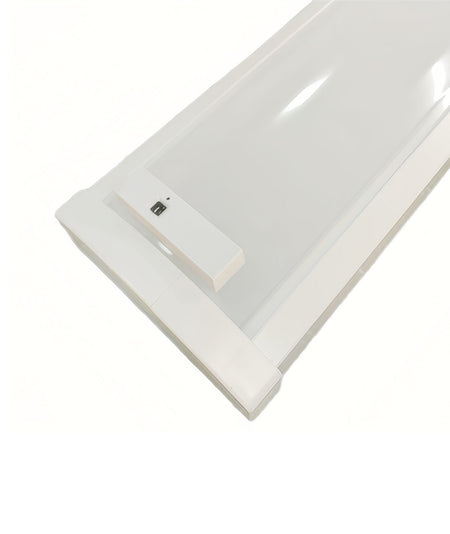

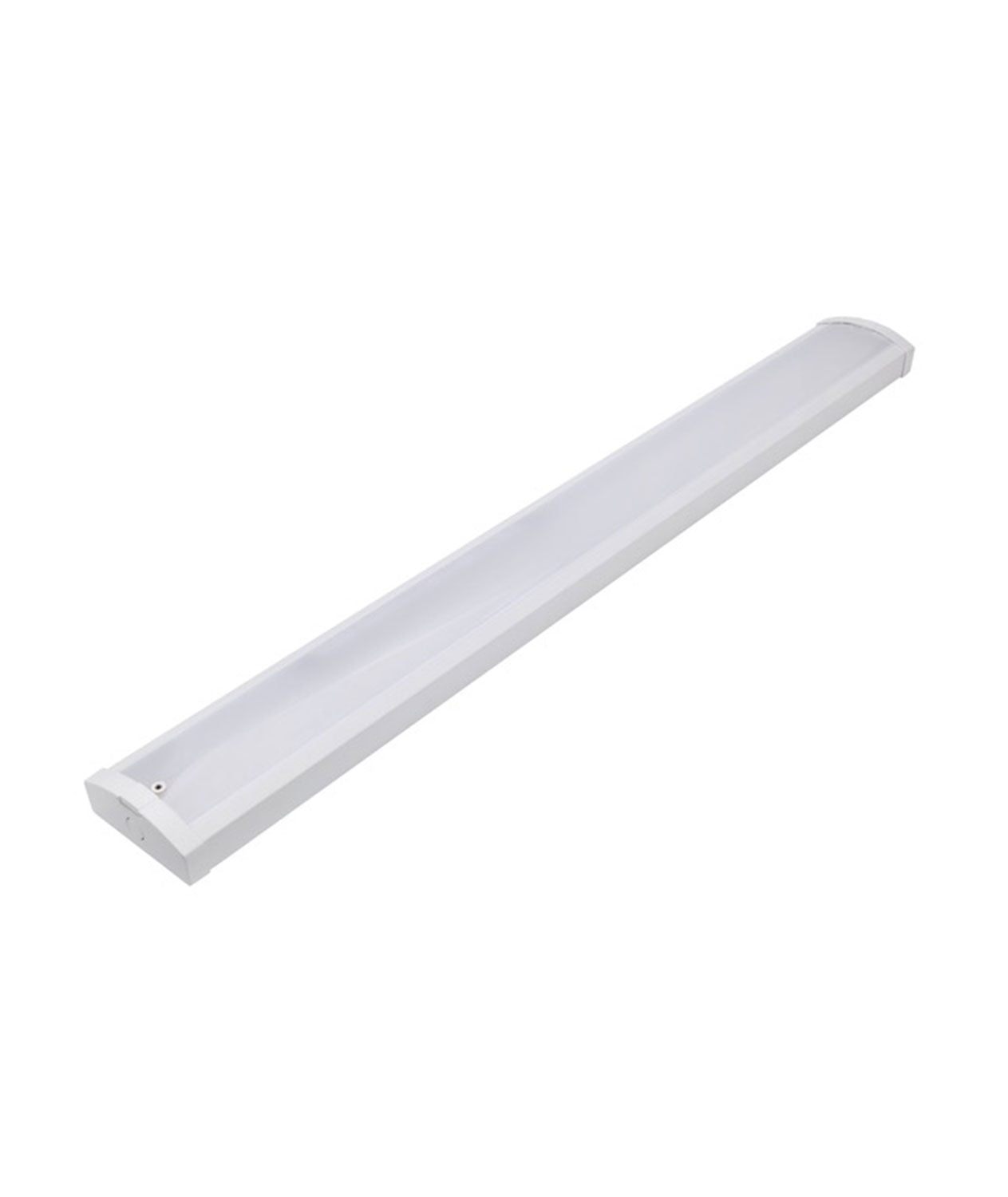

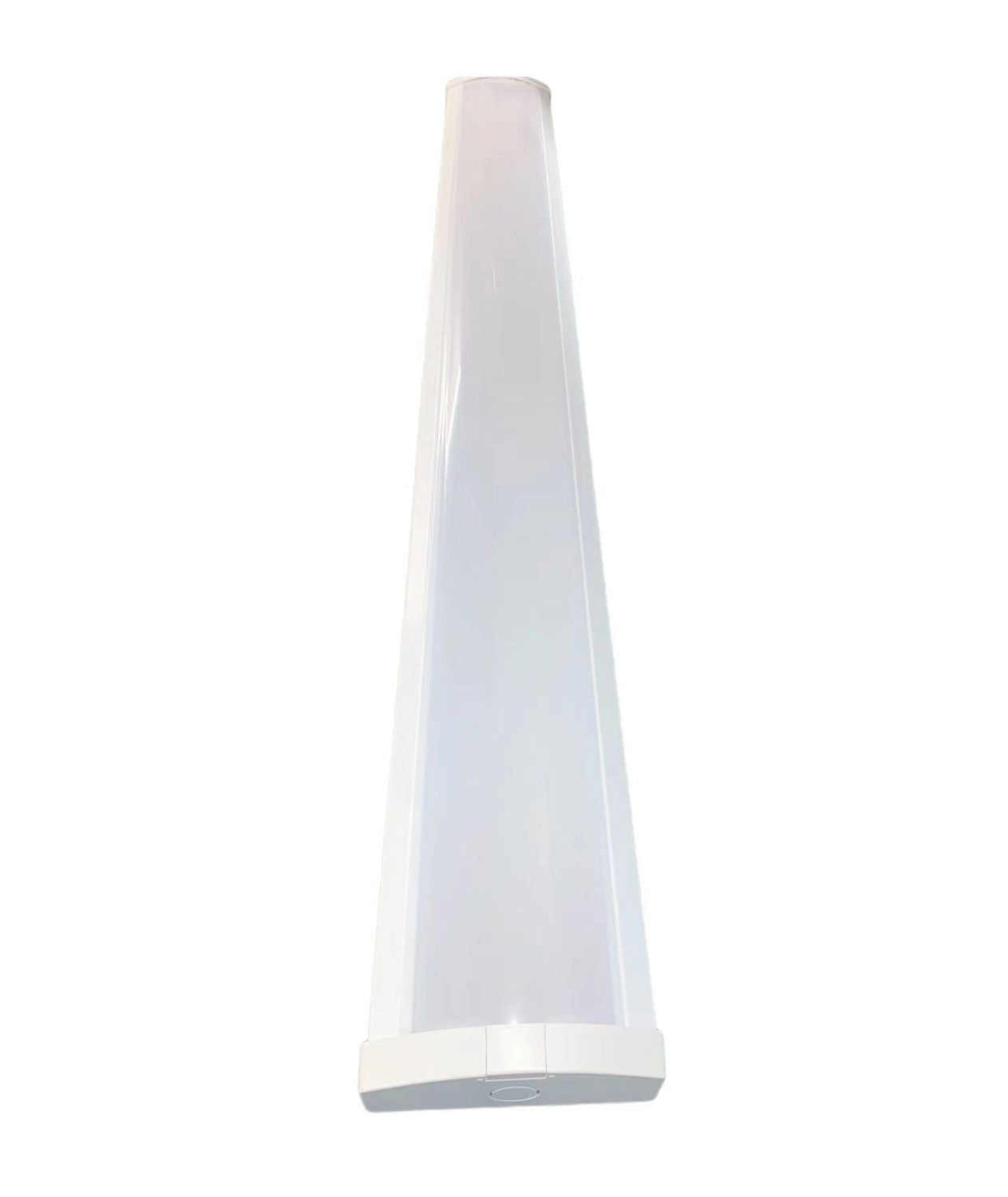

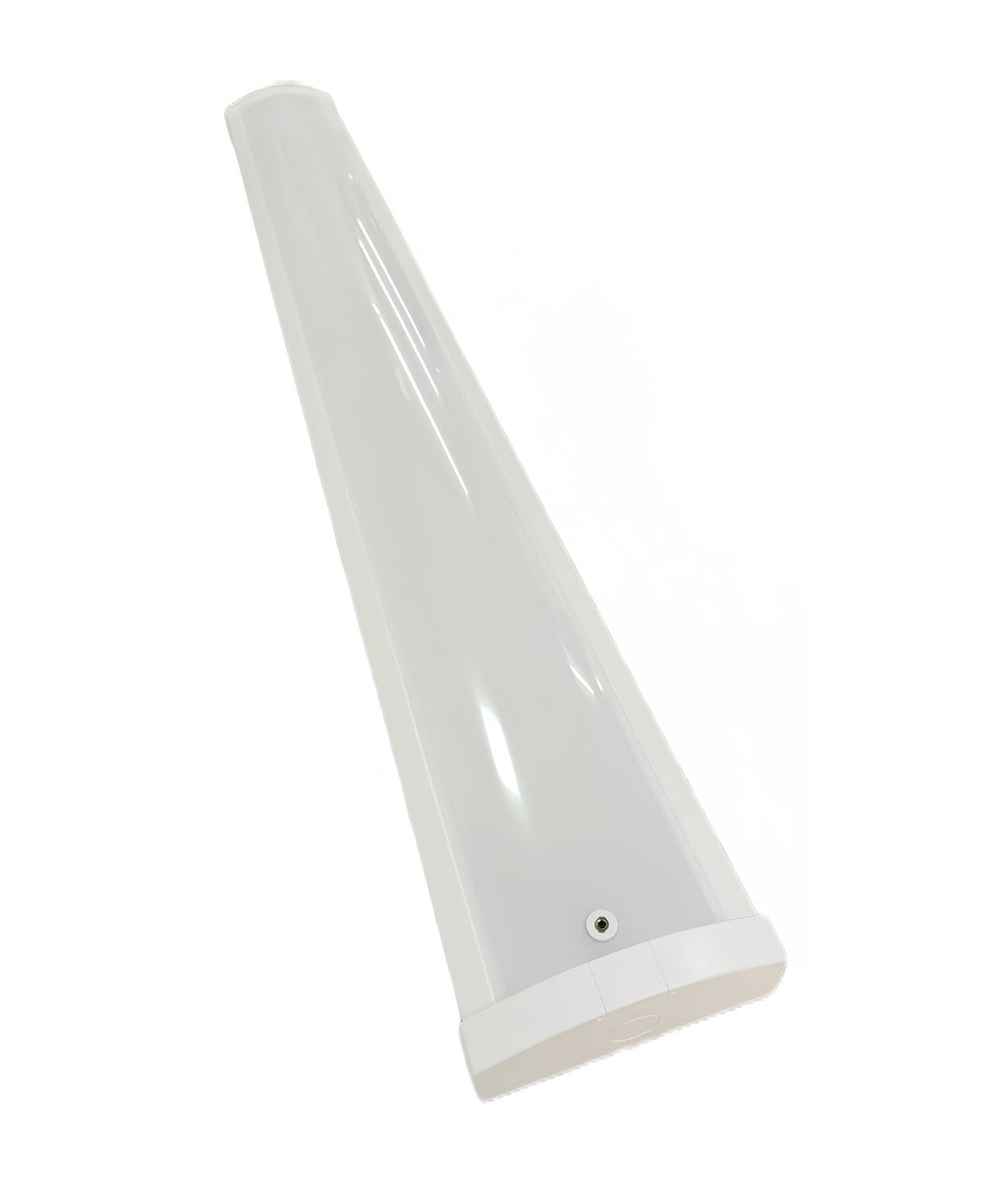

The J-WRAP 4FT LED Wraparound Light is a versatile commercial ceiling fixture designed to provide bright, uniform illumination for offices, schools, retail stores, healthcare facilities, restaurants, hospitality spaces, residential common areas, and other indoor applications.
Featuring 20W / 30W / 40W selectable wattage, the fixture allows installers to adjust power output in the field to match different room sizes and lighting requirements. It also offers five selectable color temperatures—3500K, 4000K, 5000K, 5700K, and 6500K—making it easy to select the desired light appearance from neutral white to crisp daylight.
At maximum output, the fixture delivers up to 5,000 lumens with efficacy of approximately 125 lm/W, providing efficient illumination while helping reduce energy consumption compared with traditional fluorescent wraparound fixtures.
The J-WRAP operates on 120-277VAC and is compatible with standard 0-10V dimming systems, allowing additional control over light output. An optional microwave motion sensor is available for occupancy-based lighting control.
Constructed from durable commercial-grade steel and plastic materials, the fixture is designed for reliable long-term performance. Its slim 4FT wraparound profile provides a clean, low-profile appearance that works well in both commercial and institutional environments.
Installation options include standard ceiling mounting and J-box mounting, with suspended installation also available. Factory linkable configurations can connect multiple fixtures into continuous lighting runs, with up to 10 four-foot fixtures supported within the specified connection limit.
Key Features
- Size: 4FT
- Wattage Selectable: 20W / 30W / 40W
- 5CCT Selectable: 3500K / 4000K / 5000K / 5700K / 6500K
- Maximum Output: Up to 5,000 lumens
- Efficacy: 125 lm/W
- Input Voltage: 120-277VAC
- 0-10V Dimmable
- CRI: >80
- Optional Microwave Motion Sensor
- Ceiling / J-Box Mounting
- Optional Suspended Installation
- Linkable Configuration Available
- Up to 10 Fixtures Linkable
- Operating Temperature: -20°C to 45°C
- ETL Listed
- DLC 5.1 Premium
- 5-Year Limited Warranty
Applications
- Offices
- Schools
- Retail Stores
- Healthcare Facilities
- Restaurants
- Hotels & Hospitality
- Residential Common Areas
- Hallways
- Utility Rooms
- Commercial Buildings
Technical Specifications
| Specification | Value |
|---|---|
| Model | ST4F-45PDNC |
| Series | J-WRAP |
| Product Type | LED Wraparound Light |
| Size | 4FT |
| Selectable Wattage | 20W / 30W / 40W |
| CCT | 3500K / 4000K / 5000K / 5700K / 6500K |
| Maximum Lumens | 5,000 lm |
| Efficacy | 125 lm/W |
| Input Voltage | 120-277V |
| Dimming | 0-10V |
| CRI | >80 |
| Motion Sensor | Optional |
| Mounting | Ceiling / J-Box / Optional Suspension |
| Certifications | ETL / DLC 5.1 Premium |
| Warranty | 5 Years |
Specifications
| Wattage | 20W/30W/40W | Efficacy per W | 130lm/w |
|---|---|---|---|
| Certifications | ETL, DLC 5.1 Premium | Lifespan | 50,000 hours |
| Lumens | 5000LM | Voltage | 120–277V |
| CRI | 80 | IP Rating | Indoor Use |
| Beam Angle | 120° | Color Temperature Range | 3500K–6500K (Selectable) |
| Size | 48x2.9x3.2 | Applications | "Offices, retail, schools, restaurants, healthcare, residential and hospitality applications." |
| Dimming Details | 0-10V | Operating Temperature | -20°C-45°C |
| Warranty | 5 year |
The J-WRAP 4FT LED Wraparound Light is a versatile commercial ceiling fixture designed to provide bright, uniform illumination for offices, schools, retail stores, healthcare facilities, restaurants, hospitality spaces, residential common areas, and other indoor applications.
Featuring 20W / 30W / 40W selectable wattage, the fixture allows installers to adjust power output in the field to match different room sizes and lighting requirements. It also offers five selectable color temperatures—3500K, 4000K, 5000K, 5700K, and 6500K—making it easy to select the desired light appearance from neutral white to crisp daylight.
At maximum output, the fixture delivers up to 5,000 lumens with efficacy of approximately 125 lm/W, providing efficient illumination while helping reduce energy consumption compared with traditional fluorescent wraparound fixtures.
The J-WRAP operates on 120-277VAC and is compatible with standard 0-10V dimming systems, allowing additional control over light output. An optional microwave motion sensor is available for occupancy-based lighting control.
Constructed from durable commercial-grade steel and plastic materials, the fixture is designed for reliable long-term performance. Its slim 4FT wraparound profile provides a clean, low-profile appearance that works well in both commercial and institutional environments.
Installation options include standard ceiling mounting and J-box mounting, with suspended installation also available. Factory linkable configurations can connect multiple fixtures into continuous lighting runs, with up to 10 four-foot fixtures supported within the specified connection limit.
Key Features
- Size: 4FT
- Wattage Selectable: 20W / 30W / 40W
- 5CCT Selectable: 3500K / 4000K / 5000K / 5700K / 6500K
- Maximum Output: Up to 5,000 lumens
- Efficacy: 125 lm/W
- Input Voltage: 120-277VAC
- 0-10V Dimmable
- CRI: >80
- Optional Microwave Motion Sensor
- Ceiling / J-Box Mounting
- Optional Suspended Installation
- Linkable Configuration Available
- Up to 10 Fixtures Linkable
- Operating Temperature: -20°C to 45°C
- ETL Listed
- DLC 5.1 Premium
- 5-Year Limited Warranty
Applications
- Offices
- Schools
- Retail Stores
- Healthcare Facilities
- Restaurants
- Hotels & Hospitality
- Residential Common Areas
- Hallways
- Utility Rooms
- Commercial Buildings
Technical Specifications
| Specification | Value |
|---|---|
| Model | ST4F-45PDNC |
| Series | J-WRAP |
| Product Type | LED Wraparound Light |
| Size | 4FT |
| Selectable Wattage | 20W / 30W / 40W |
| CCT | 3500K / 4000K / 5000K / 5700K / 6500K |
| Maximum Lumens | 5,000 lm |
| Efficacy | 125 lm/W |
| Input Voltage | 120-277V |
| Dimming | 0-10V |
| CRI | >80 |
| Motion Sensor | Optional |
| Mounting | Ceiling / J-Box / Optional Suspension |
| Certifications | ETL / DLC 5.1 Premium |
| Warranty | 5 Years |
