40W Explosion-Proof LED Light, 4000K, 100–277V AC, IP66, Ceiling Mount
40W Explosion-Proof LED Light, 4000K, 100–277V AC, IP66, Ceiling Mount
Regular price
$200.00 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
40W Explosion-Proof LED Light

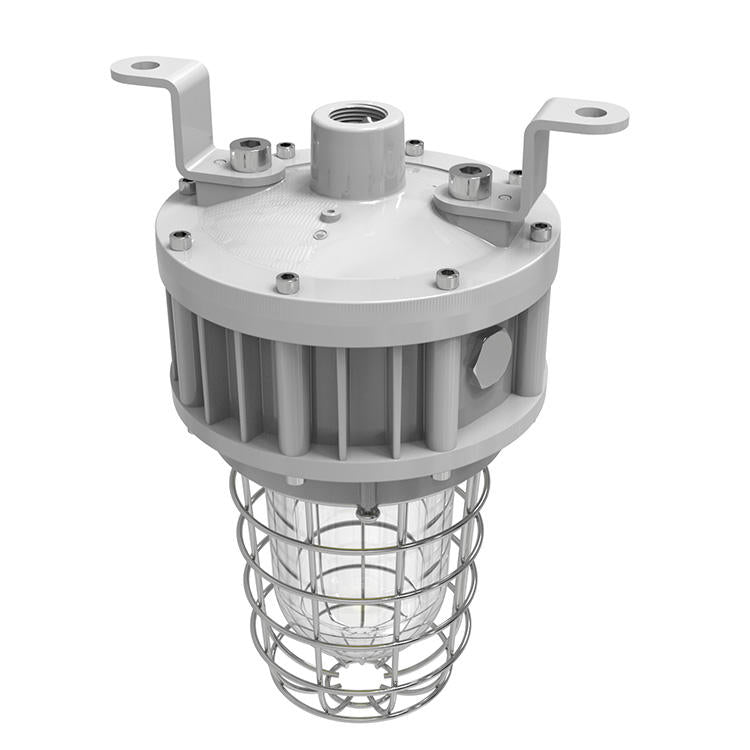

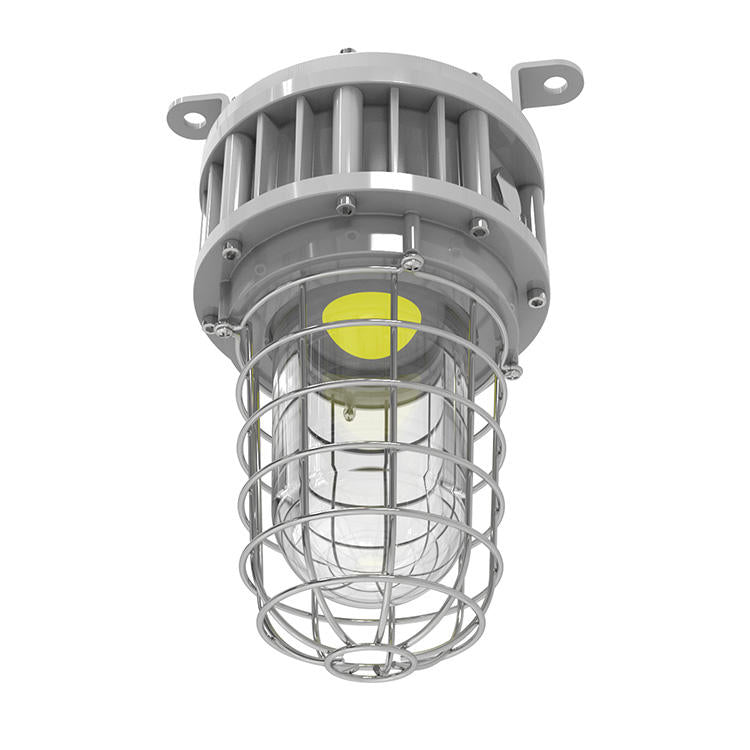

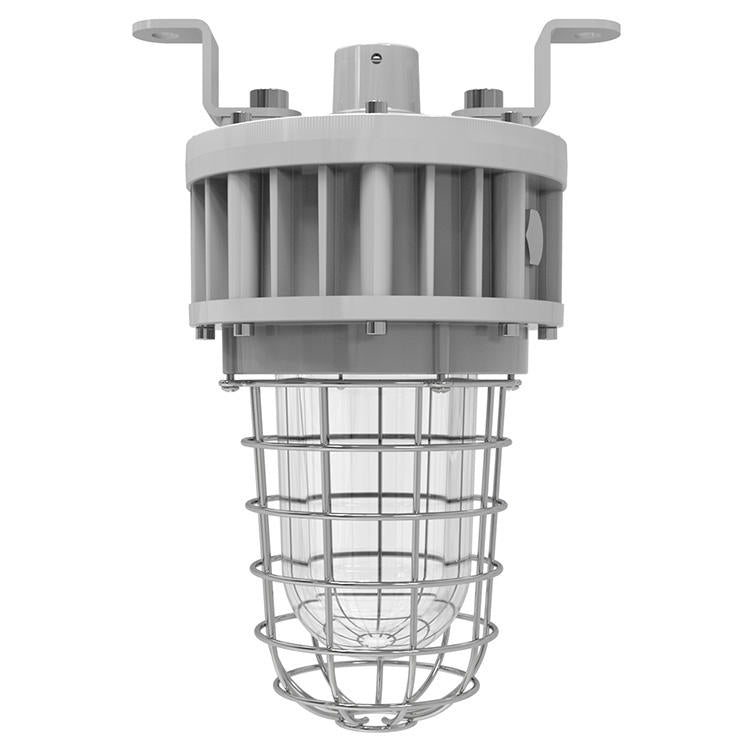

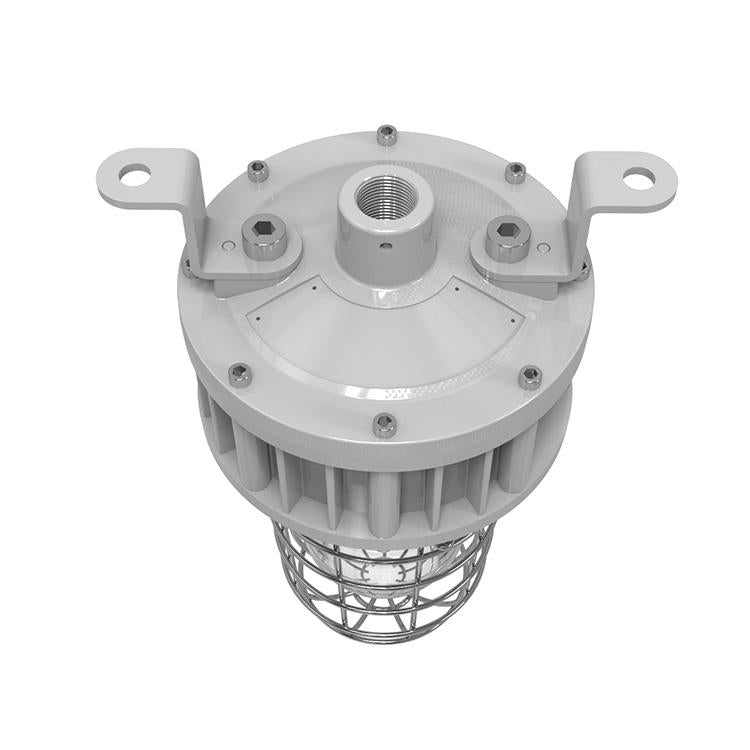

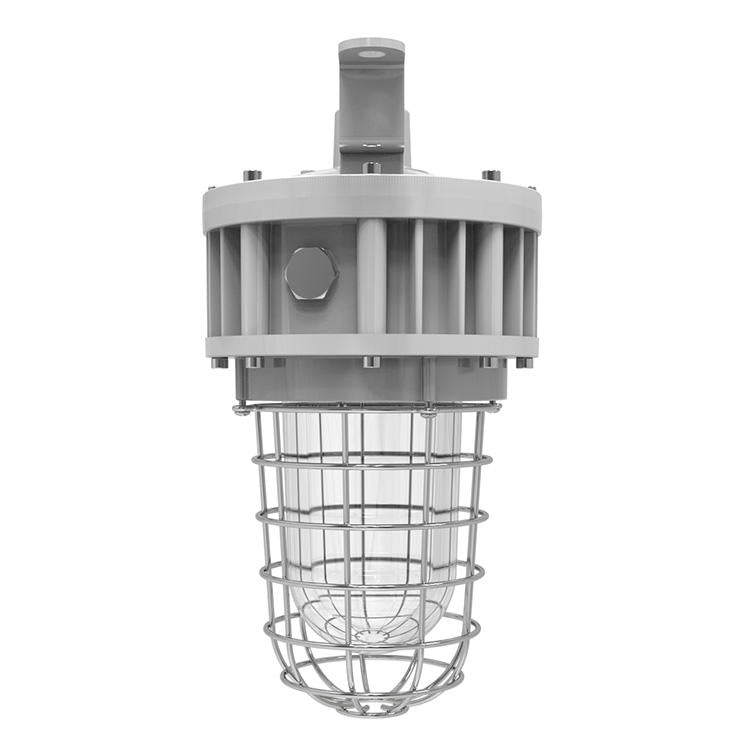

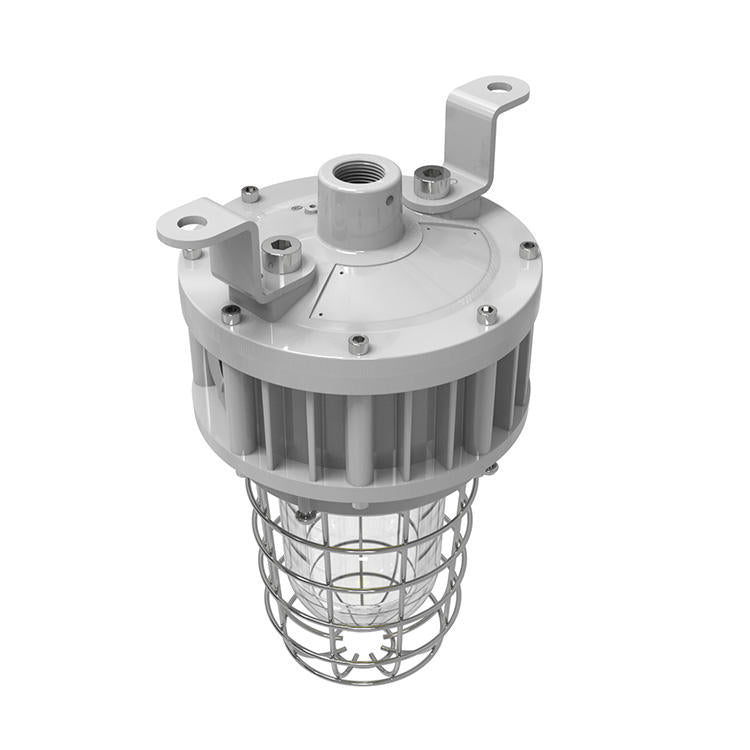

The JCE Lighting EX-40W GD40D120C 4000K is a 40W industrial LED luminaire featuring a die-cast aluminum housing, spherical glass cover, and ceiling-mount installation. Specified for 100–277V AC input, 1–10V dimming, and IP66 ingress protection, this fixture offers technical options for industrial lighting projects requiring compact ceiling-mounted lighting.
Key Features
- 40W LED Lighting: Designed for industrial lighting applications.
- 4000K Color Temperature: Cool-white light for industrial environments.
- 100–277V AC Input: Verify compatibility with the electrical supply at the installation site.
- 110 lm/W Specified Luminous Efficacy: Confirm the model-specific performance data in the applicable datasheet.
- IP66 Protection: Rated for dust protection and powerful water jets under applicable test conditions.
- Die-Cast Aluminum Housing: Provides the specified metal housing construction.
- Spherical Glass Cover: Features a spherical glass light-transmitting cover.
- Multiple Beam Angle Options: 40°, 60°, 90°, and 120°, subject to the available configuration.
- 1–10V Dimming: Specified dimming interface for compatible lighting controls.
- Sosen LED Driver: Equipped with the specified Sosen driver.
- Ceiling Mount: Designed for ceiling-mounted installation.
- 5-Year Warranty: Subject to the applicable warranty terms.
Technical Specifications
| Brand | JCE Lighting |
|---|---|
| Product Type | Industrial LED Luminaire |
| Model | EX-40W GD40D120C 4000K |
| Rated Power | 40W |
| Color Temperature | 4000K |
| Input Voltage | 100–277V AC |
| Luminous Efficacy | 110 lm/W (specified value; confirm against the model-specific datasheet) |
| Listed Luminous Flux Range | 1,140–5,450 lm across the supplied product specifications; confirm the output for the selected configuration. |
| Dimming | 1–10V |
| Beam Angle Options | 40°, 60°, 90°, 120° |
| LED Driver | Sosen |
| Ingress Protection | IP66 |
| Housing Material | Die-Cast Aluminum |
| Lens / Cover | Spherical Glass |
| Fixture Diameter | 175 mm (approximately 6.89 in) |
| Mounting | Ceiling Mount |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Warranty | 5 years, subject to warranty terms |
Installation and Project Selection
Before ordering, confirm the required beam angle, electrical supply, dimming-control compatibility, mounting arrangement, operating environment, and luminous output for the selected configuration.
For installation in hazardous or classified locations, verify the ETL listing and the exact hazardous-location classification applicable to this model. Confirm that the certification documentation covers the intended location and installation requirements before specifying or installing the fixture.
An IP66 rating alone does not establish explosion-protection certification or suitability for a hazardous location.
Technical Documentation and Quotes
Contact JCE Lighting for project quotations, bulk purchasing inquiries, and available product documentation. Request the applicable datasheet, installation instructions, and hazardous-location certification information when evaluating this fixture for a project.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 40W |
| Certifications | UL, ETL |
| Lifetime | 50,000 Hours |
| Voltage | 120-277VAC |
| IP Rating | IP66 |
| Beam Angle | 40°/60°/90°/120° |
| Size | 15.5*11*11.5, 14.1 |
