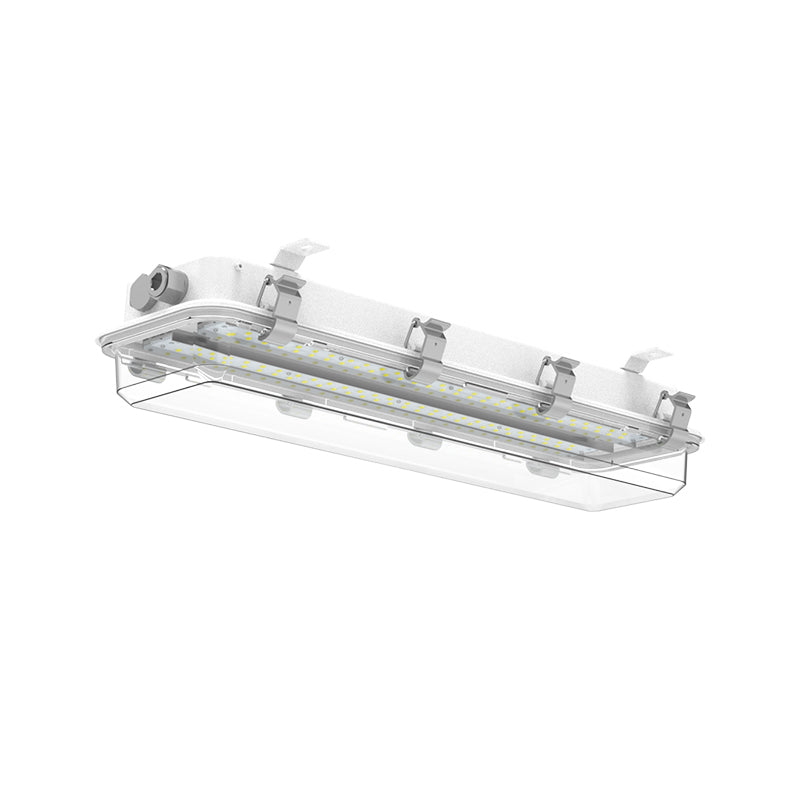

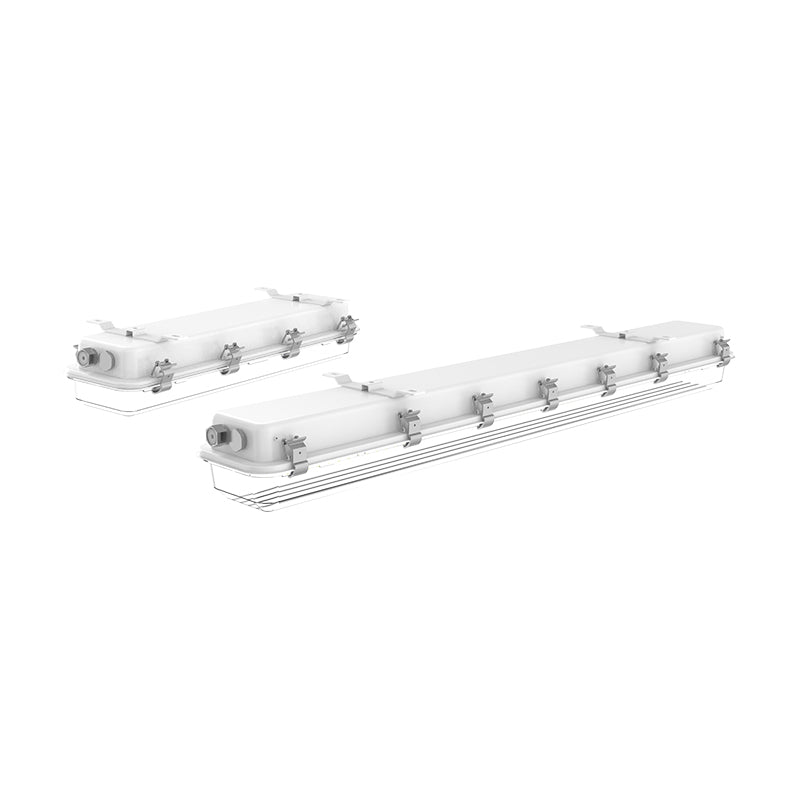

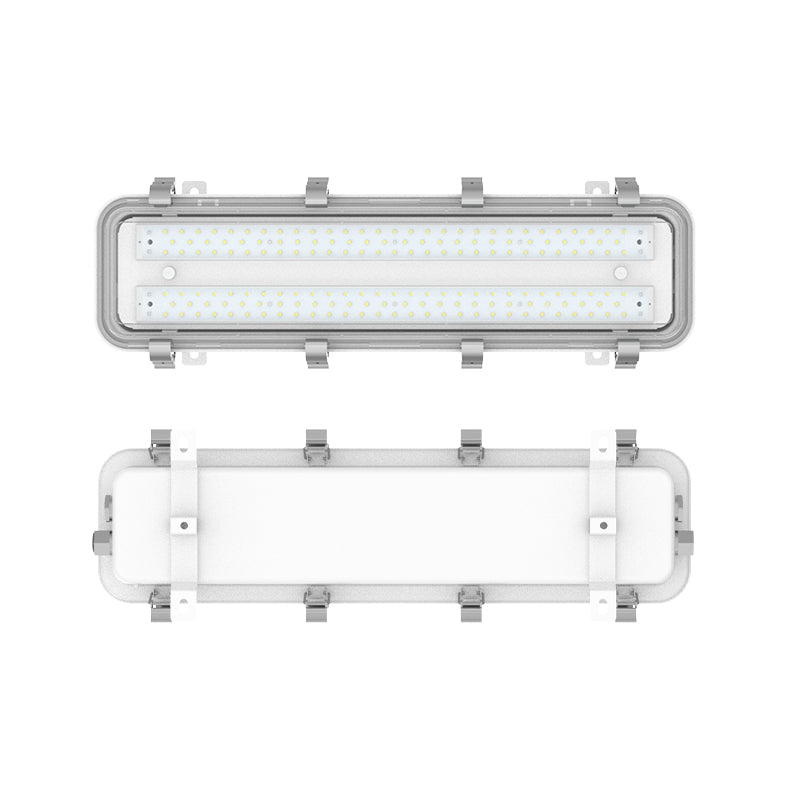

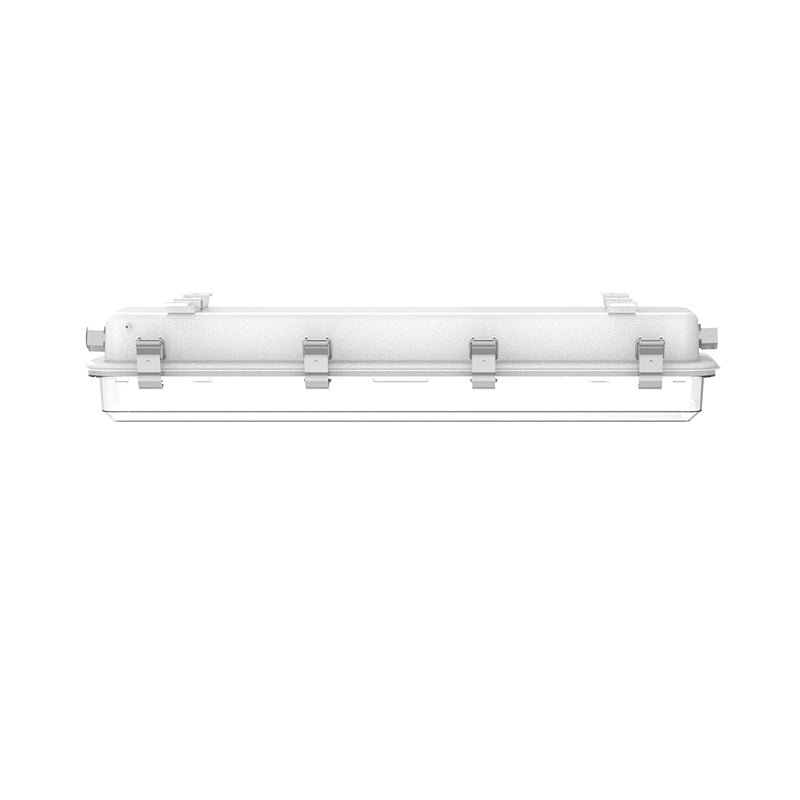

30W Explosion Proof LED Linear Light – 5000K
The JCELighting 30W Explosion Proof LED Linear Light is designed for lighting installations in hazardous locations where the applicable area classification and equipment requirements have been verified. Operating on 100–277V AC, this linear LED fixture features a 5000K color temperature, 120° beam angle, and 0–10V dimming capability for flexible lighting control.
With a 600 mm (approximately 2 ft) form factor, a Mean Well driver, and ceiling or rope mounting options, this fixture is suitable for projects requiring compact linear lighting. Its stated luminous efficacy is 150 lm/W.
Key Features
- 30W LED Output: Designed for energy-conscious industrial lighting applications.
- 5000K Color Temperature: Provides cool white light for industrial work areas.
- 100–277V AC Input: Supports compatible electrical systems within the specified voltage range.
- 0–10V Dimming: Enables compatible dimming control systems.
- 120° Beam Angle: Provides broad light distribution.
- Mean Well Driver: Uses a Mean Well LED driver.
- Flexible Mounting: Supports ceiling mounting and rope mounting.
- Stated Luminous Efficacy: 150 lm/W.
- Certifications: UL, ETL, and CSA, as confirmed for this product. Consult the applicable certification records for exact standards and hazardous-location scope.
Hazardous Location Ratings
The confirmed hazardous-location ratings provided for this model are Class I, Division 2; Class II, Division 1; and Class II, Division 2. Class III is also listed; its applicable division and exact certification scope should be verified against the product documentation before installation.
Technical Specifications
| Product Model | EX-30W R2D50D120 5000K |
|---|---|
| Product Type | Explosion Proof LED Linear Light |
| Wattage | 30W |
| Color Temperature | 5000K |
| Input Voltage | 100–277V AC |
| Dimming | 0–10V |
| Length | 600 mm (approximately 2 ft) |
| Beam Angle | 120° |
| LED Driver | Mean Well |
| Mounting Options | Ceiling Mounting, Rope Mounting |
| Luminous Efficacy | 150 lm/W |
| Certifications | UL, ETL, CSA |
Potential Applications
Consider this fixture for industrial and commercial projects in hazardous locations, including compatible process areas, industrial facilities, and maintenance spaces where the required hazardous-location classification has been confirmed. Always verify the site classification, environmental conditions, and applicable certification requirements before specifying or installing the fixture.
Frequently Asked Questions
Is this explosion proof LED light dimmable?
Yes. It supports 0–10V dimming when used with a compatible dimming control system.
What voltage does this fixture support?
The specified input voltage is 100–277V AC.
What is the color temperature?
This model uses a 5000K color temperature.
What mounting options are available?
The specified mounting options are ceiling mounting and rope mounting.
Which hazardous locations is this fixture rated for?
The confirmed ratings include Class I, Division 2; Class II, Division 1; and Class II, Division 2, with Class III also listed. Verify the exact Class III division and the certification documentation for the specific installation.
What certifications does this model have?
UL, ETL, and CSA certifications have been confirmed for this product. Consult the applicable listing records for the exact standards and hazardous-location classifications covered.
Specifications
| Wattage | 30W | Certifications | UL, ETL and CSA |
|---|---|---|---|
| Voltage | 100–277V AC | IP Rating | IP 66 |
| Beam Angle | 120° |
