2x4 LED Troffer Retrofit Kit – 25/30/35W, 3CCT, 0-10V, 4-Pack

2x4 LED Troffer Retrofit Kit with Selectable Wattage and CCT

Upgrade existing 2x4 fluorescent troffer fixtures with a commercial LED retrofit solution designed to install inside compatible existing troffer housings. This 2x4 LED troffer retrofit kit provides a practical option for office, education, healthcare, retail and commercial lighting renovation projects without requiring complete fixture replacement.

Three selectable wattage settings of 25W, 30W and 35W allow contractors and facility managers to adjust power during installation, while selectable 3500K, 4000K and 5000K color temperatures provide flexibility for different interior environments. The fixture operates on 120-277V AC and supports 0-10V dimming.

Key Features

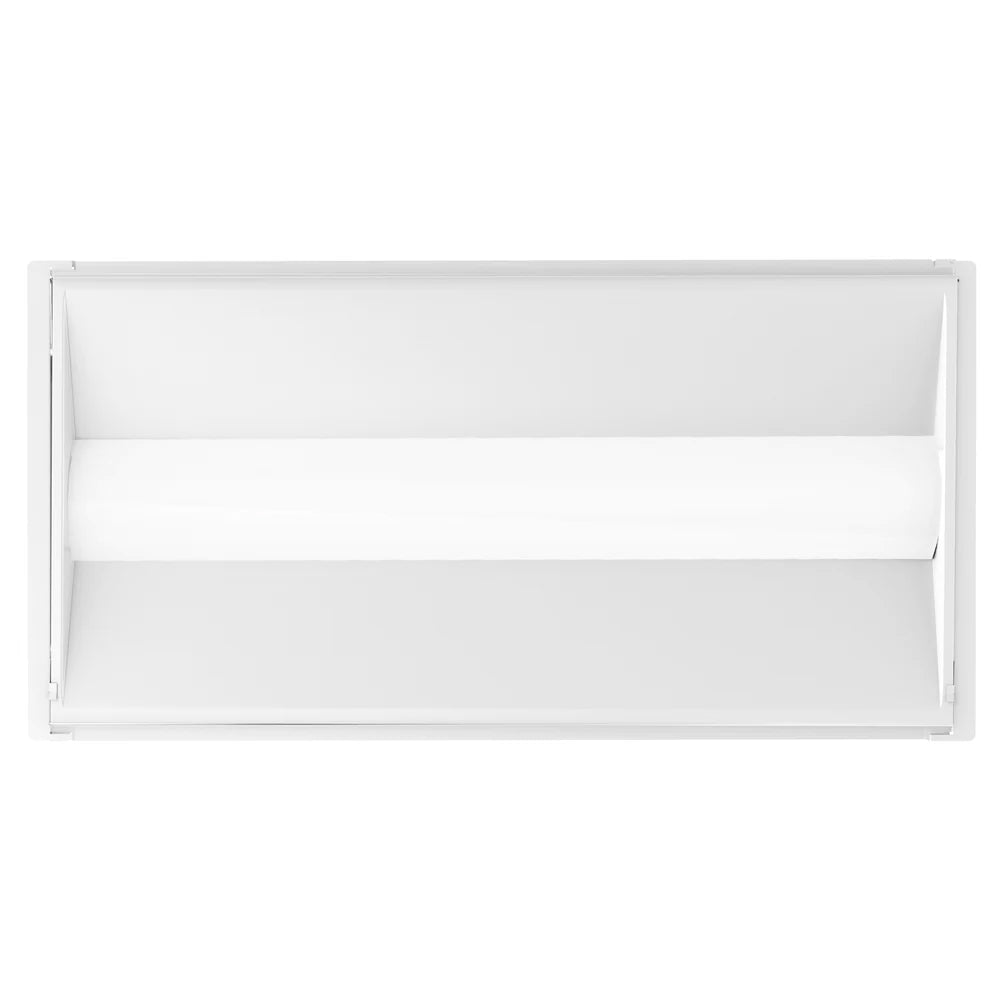

• 3-Wattage Selectable: 25W / 30W / 35W
• 3-CCT Selectable: 3500K / 4000K / 5000K
• Universal Voltage: 120-277V AC

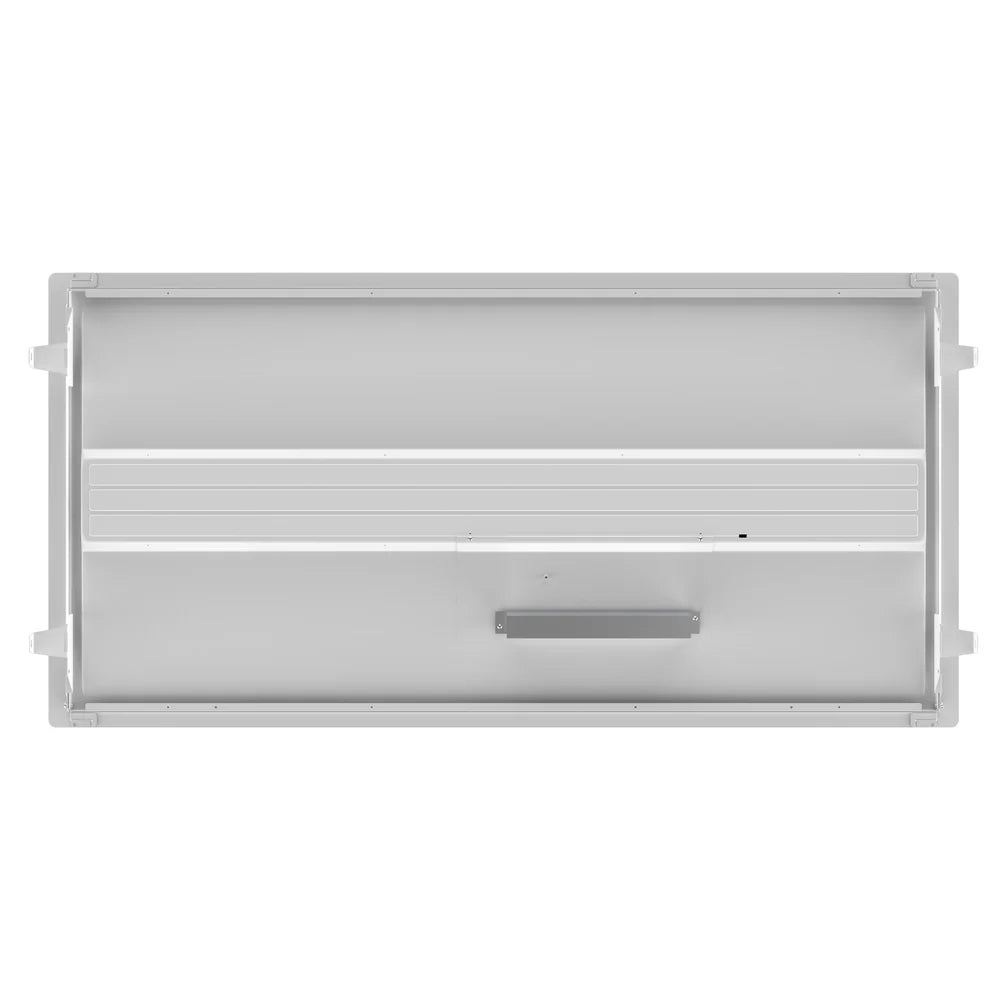

• 0-10V Dimming: Designed for commercial lighting control systems
• High Efficiency: Up to 125 lm/W
• CRI: Ra ≥80
• Power Factor: >0.95 at full load
• Total Harmonic Distortion: <20% at full load
• Operating Temperature: -22°F to 104°F (-30°C to 40°C)
• Sensor-Ready: Configured with a 2.5mm sensor base for optional lighting controls

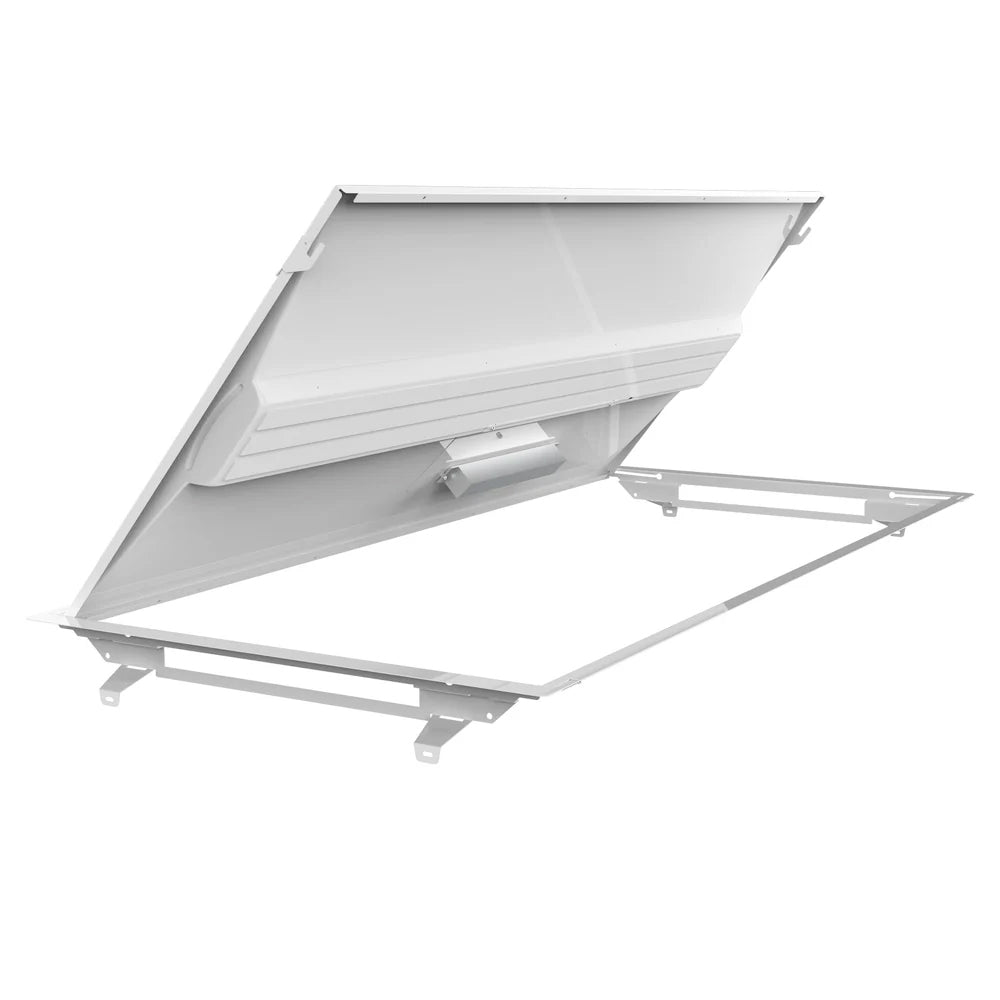

• Retrofit Installation: Designed for compatible existing 2x4 fluorescent troffer housings
• Commercial Construction: White high-strength metal housing with polycarbonate diffuser
• Limited Warranty: 5 Years

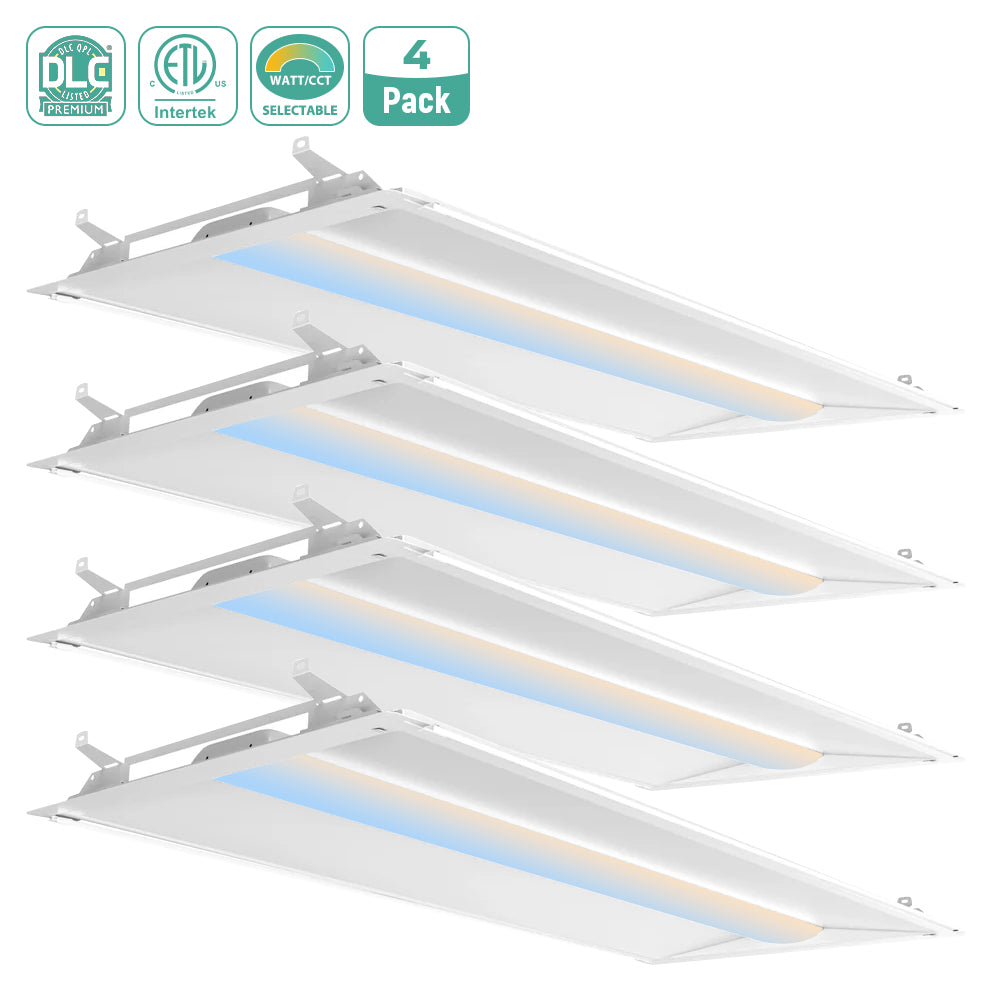

• Pack Quantity: 4 fixtures per carton

Technical Specifications

Cost-Effective 2x4 Fluorescent Troffer Upgrade

The retrofit design allows installers to reuse a compatible existing 2x4 troffer housing rather than replacing the complete recessed fixture. Selectable wattage and selectable CCT also reduce the number of different fixture configurations contractors need to stock for commercial renovation projects.

Before ordering, verify the internal dimensions and condition of the existing fluorescent troffer housing to ensure compatibility with the retrofit assembly.

Recommended Applications

Suitable for offices, classrooms, schools, hospitals and healthcare facilities, conference rooms, retail stores, corridors, commercial buildings and institutional lighting retrofit projects using existing 2x4 recessed troffers.

What's Included

Sold as a 4-pack full carton. The fixture is configured with a 2.5mm sensor base. Optional sensors and additional control accessories can be selected separately where required.
