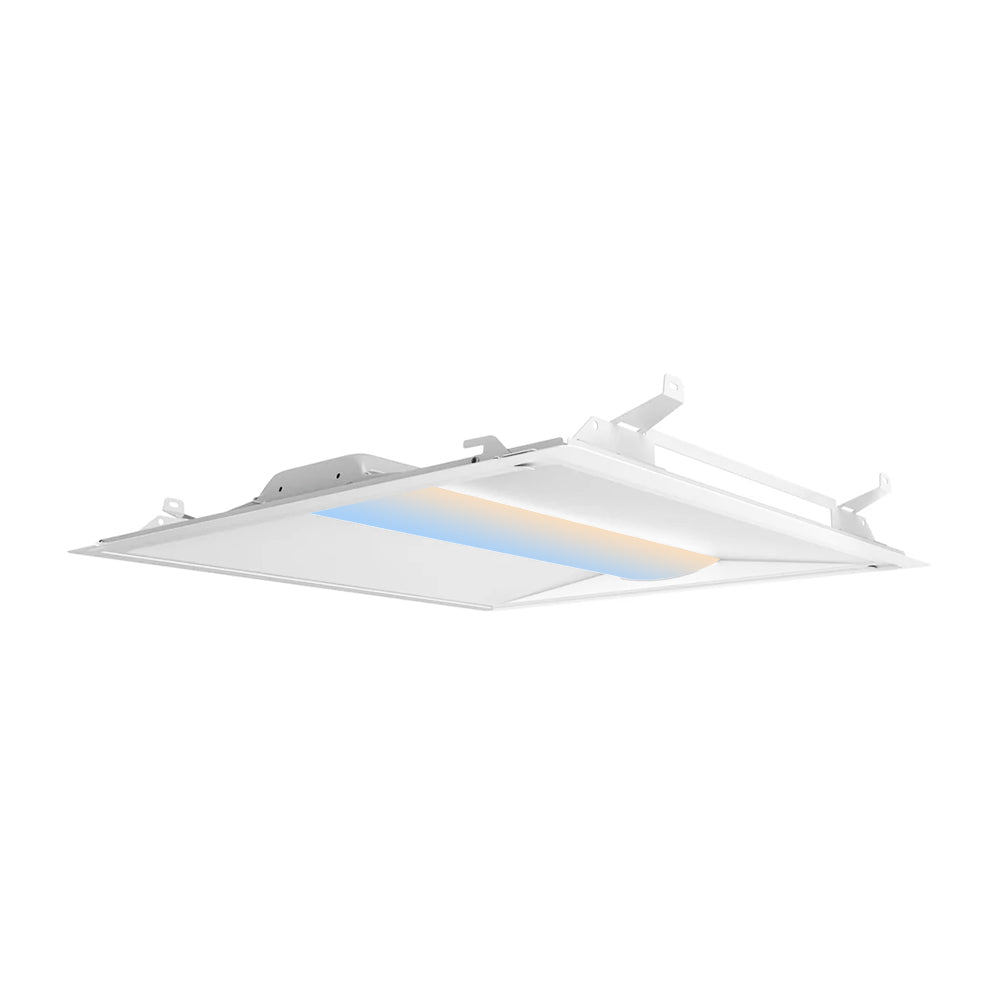

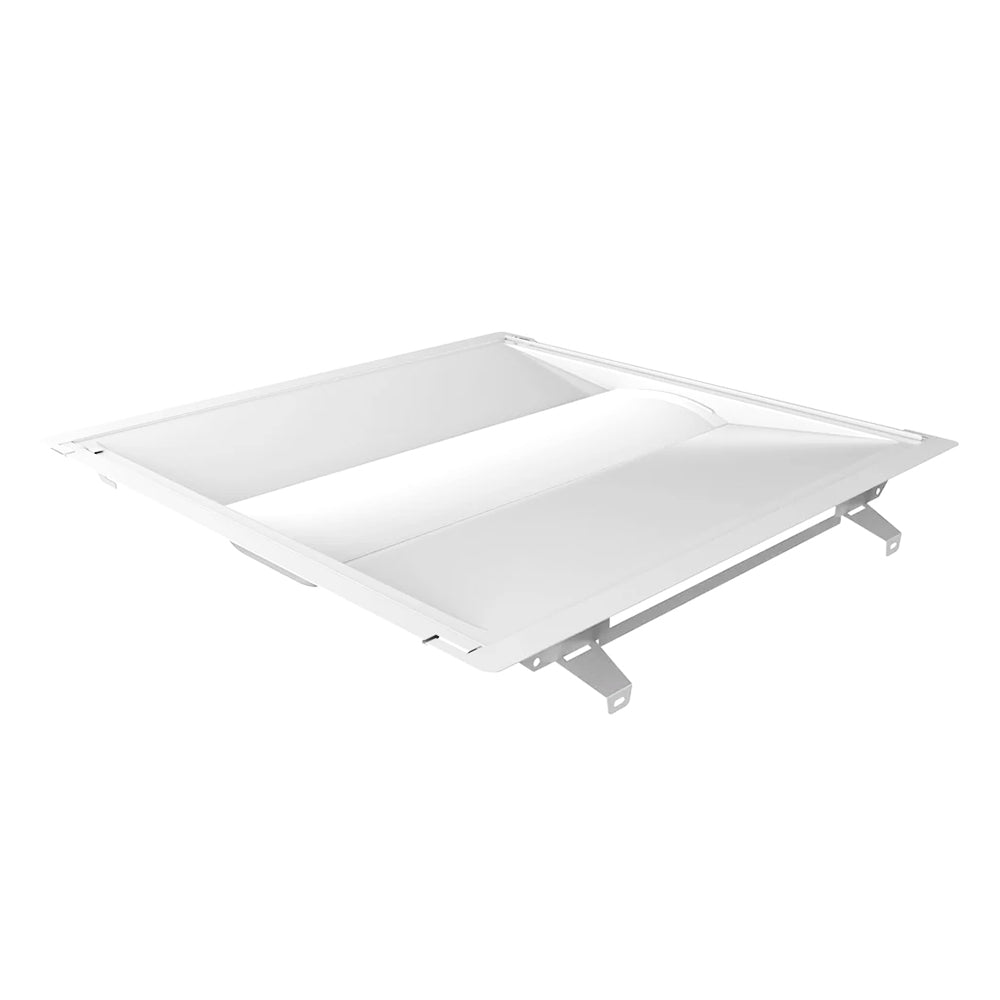

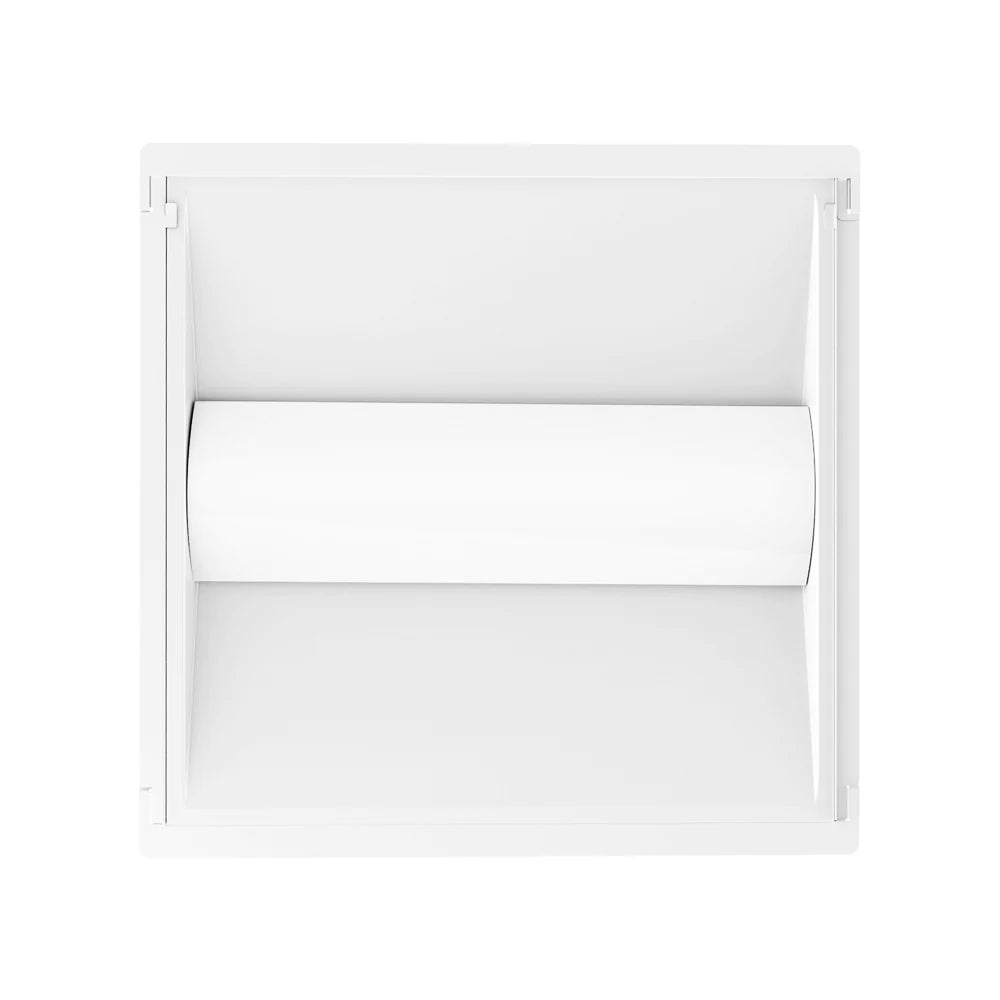

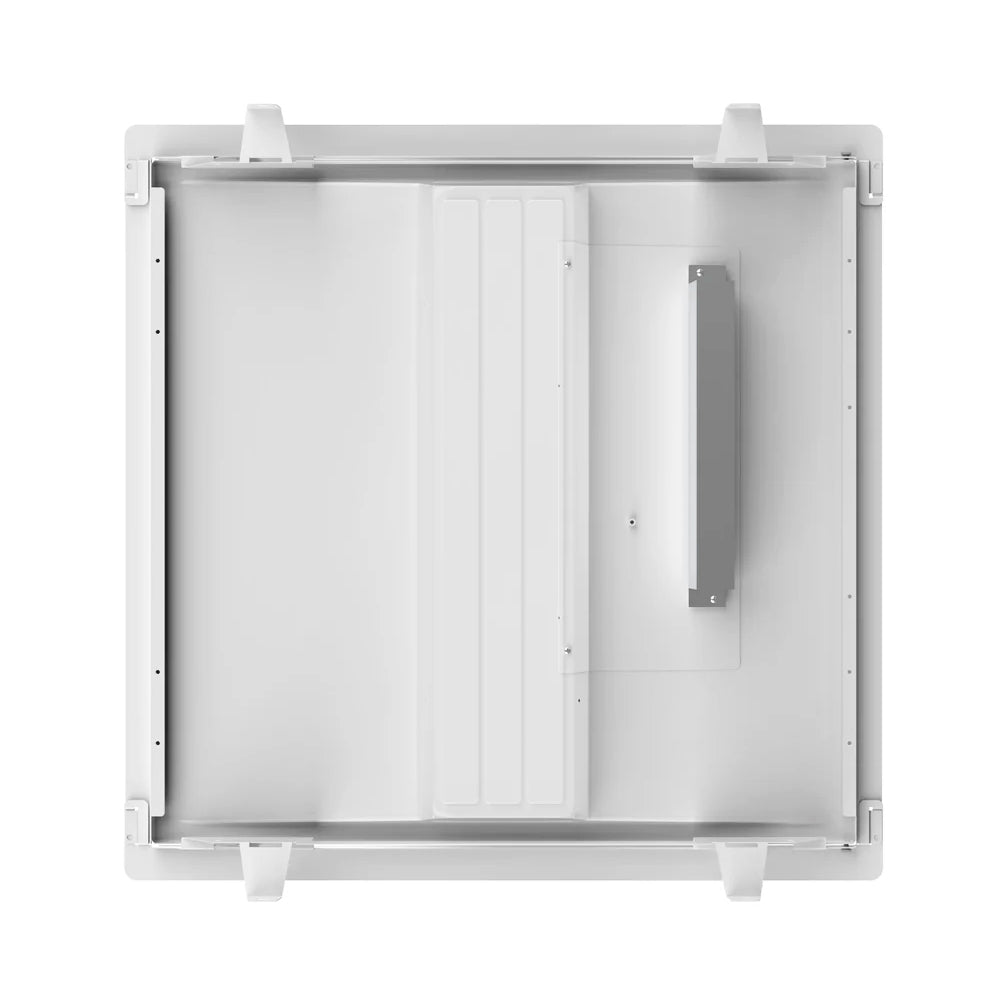

2x2 LED Troffer Retrofit Kit – 20/25/30W, 3CCT, 0-10V, 4-Pack

2x2 LED Troffer Retrofit Kit with Selectable Wattage and CCT

Upgrade existing 2x2 fluorescent troffer fixtures without replacing the complete housing. This commercial LED troffer retrofit kit is designed for fast installation inside compatible existing 2x2 troffer housings, making it an efficient solution for lighting renovation projects in offices, schools, healthcare facilities, retail spaces and other commercial buildings.

The fixture provides three selectable wattage settings of 20W, 25W and 30W and three field-selectable color temperatures of 3500K, 4000K and 5000K. A universal 120-277V input and 0-10V dimming make it suitable for a wide range of commercial retrofit applications.

Key Features

• 3-Wattage Selectable: 20W / 25W / 30W
• 3-CCT Selectable: 3500K / 4000K / 5000K
• Universal Voltage: 120-277V AC
• 0-10V Dimming: Compatible with commercial dimming systems
• High Efficiency: Up to 125 lm/W
• CRI: Ra ≥80
• Power Factor: >0.95 at full load
• Total Harmonic Distortion: <20% at full load
• Operating Temperature: -22°F to 104°F (-30°C to 40°C)
• Sensor-Ready: Configured with a 2.5mm sensor base for optional lighting controls
• Retrofit Design: Installs inside compatible existing 2x2 fluorescent troffer housings
• Commercial Construction: White high-strength metal housing with polycarbonate diffuser
• Limited Warranty: 5 Years
• Pack Quantity: 4 fixtures per carton

Technical Specifications

Designed for Existing Troffer Retrofit Projects

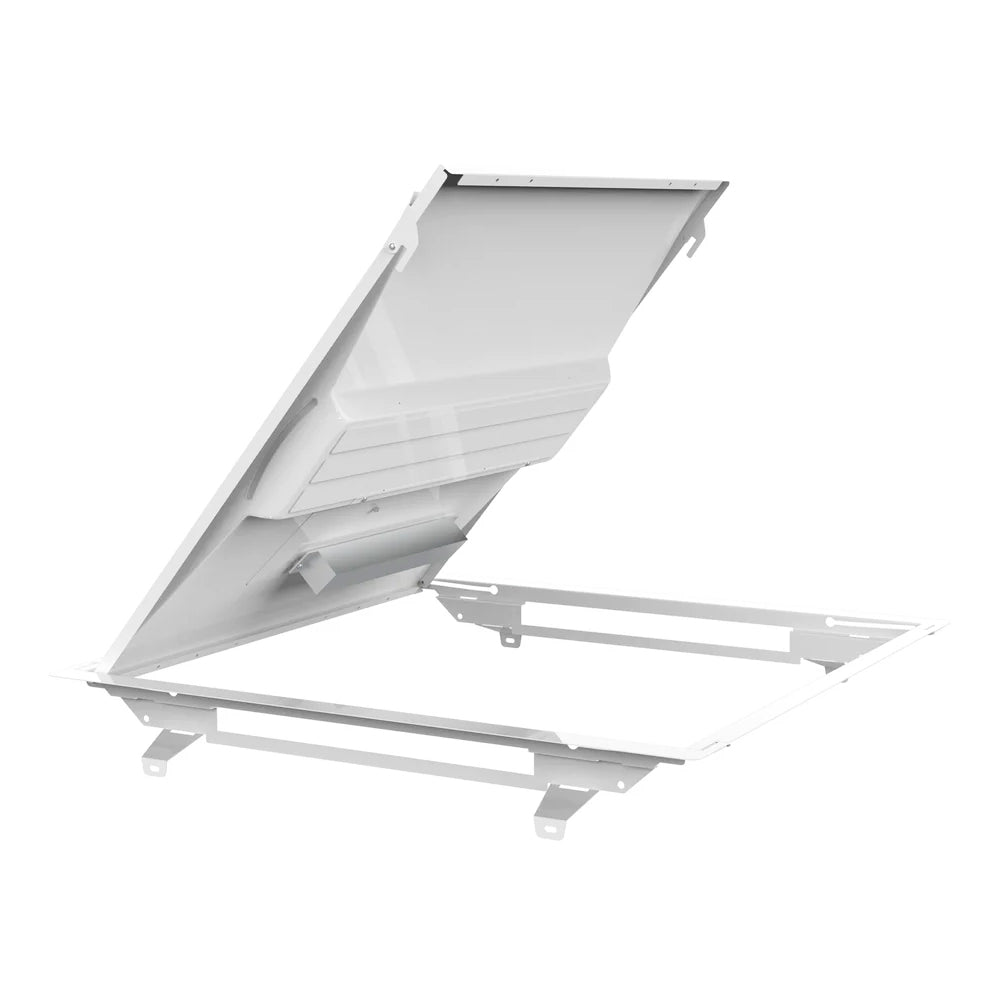

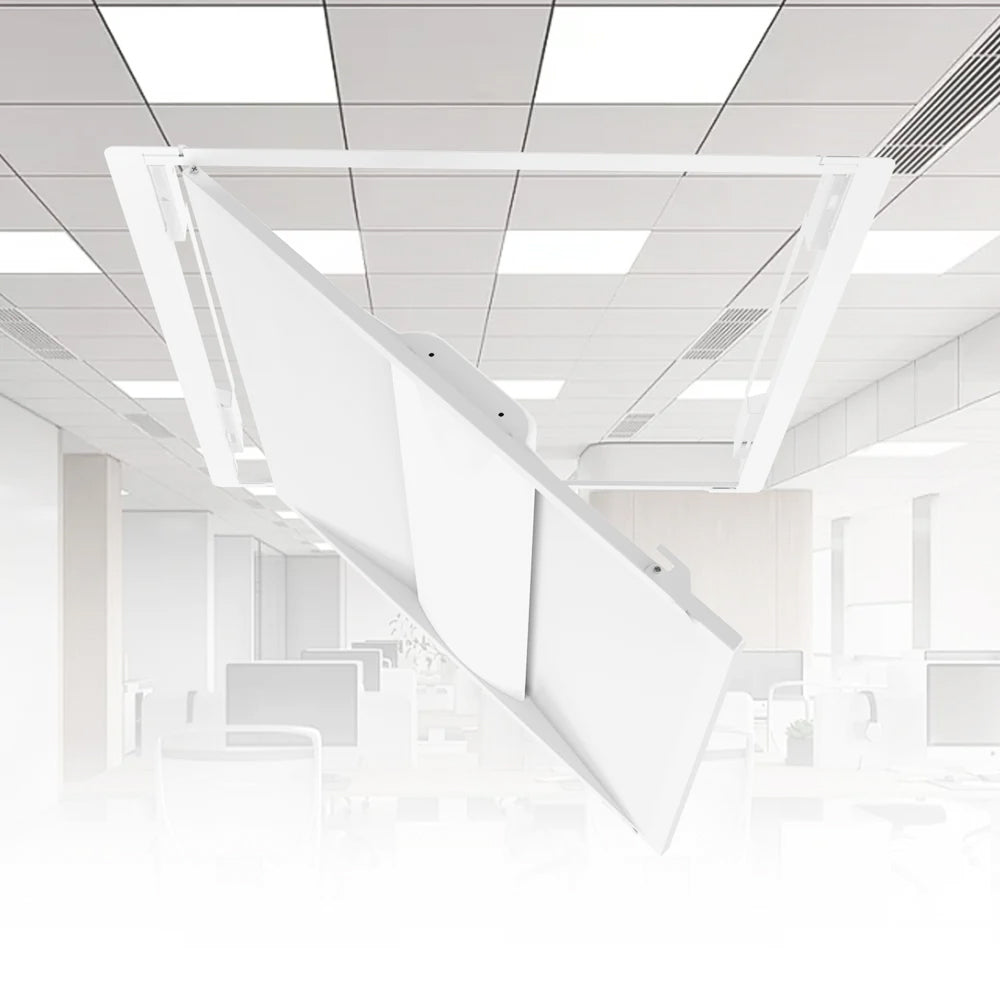

Instead of removing and replacing the entire recessed troffer housing, the retrofit kit installs inside a compatible existing fixture. This helps simplify commercial lighting renovation projects while retaining the existing ceiling grid and troffer housing.

For 2x2 retrofit installations, verify the dimensions of the existing fluorescent troffer housing before installation. The existing housing should provide sufficient internal clearance for the retrofit assembly.

Recommended Applications

Ideal for offices, classrooms, schools, healthcare facilities, conference rooms, retail stores, commercial buildings, institutional facilities and other spaces upgrading existing fluorescent recessed troffers to LED.

What's Included

Sold as a 4-pack full carton. The fixture is configured with a 2.5mm sensor base. Optional sensors and additional control accessories can be selected separately where required.
