2x2 High Output LED Backlit Panel Light 65W, 10,000 Lumens, 5CCT & Wattage Selectable, Sensor – 4 Pack

2x2 High Output LED Backlit Panel Light – Up to 10,000 Lumens

Designed for projects that require substantially more output from a compact 2x2 ceiling fixture, the JCE Lighting 2x2 High Output LED Backlit Panel Light delivers up to 10,000 lumens while providing five selectable wattage settings from 15W to 65W.

Unlike a conventional fixed-output 2x2 panel, this model allows installers to configure both wattage and color temperature at the fixture. Select from 15W, 30W, 40W, 50W or 65W and choose between 3000K, 3500K, 4000K, 5000K and 6500K.

The fixture includes a sensor, supports 0–10V dimming, operates on 120–277V, and is DLC certified. Each carton contains 4 fixtures for commercial lighting and retrofit projects.

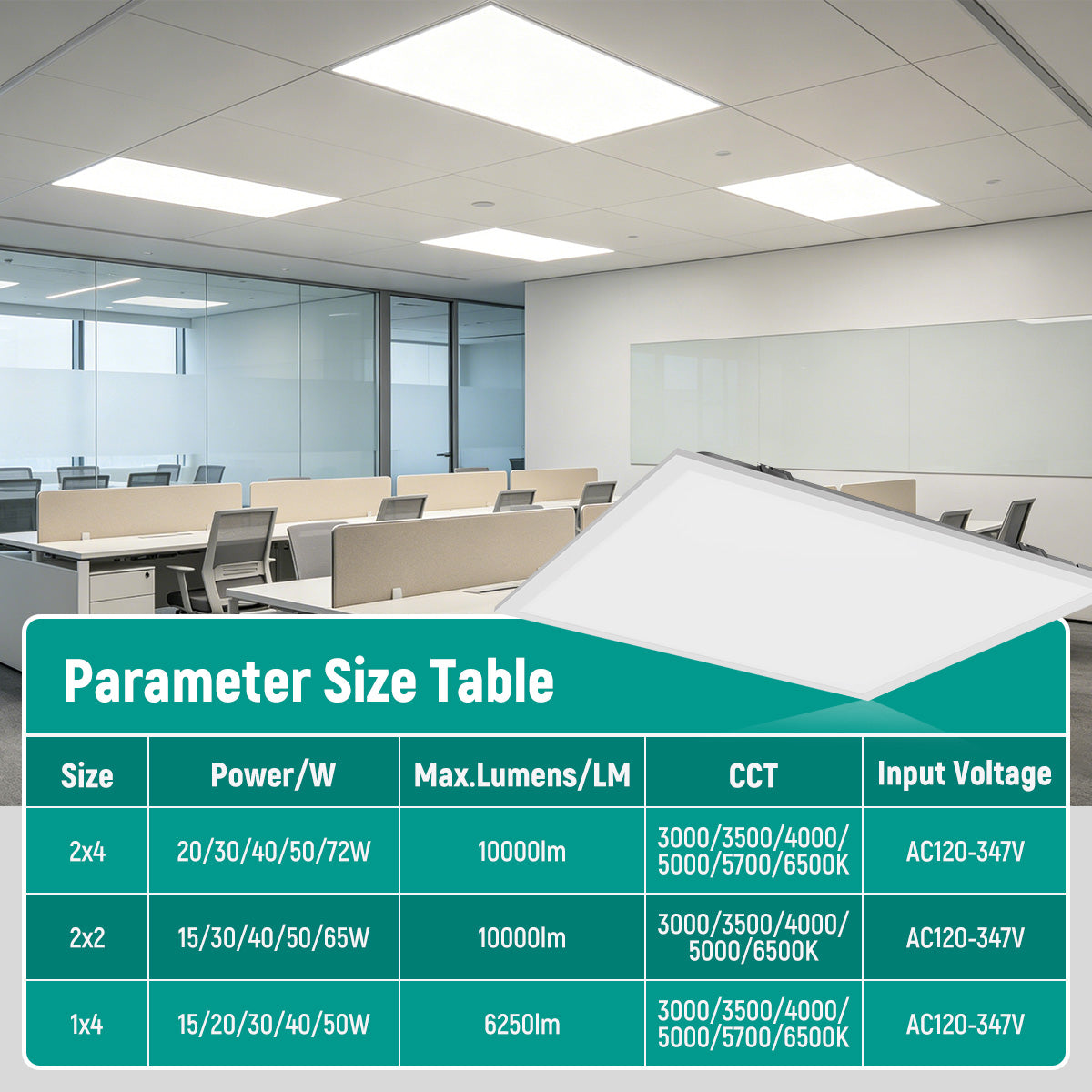

Key Specifications

High Output in a 2x2 Footprint

The key difference between this model and a standard-output 2x2 panel is its maximum 10,000-lumen output. It is intended for projects that require more illumination while maintaining the familiar 2x2 ceiling-panel format.

15W to 65W Wattage Selectable

Five wattage settings give contractors greater flexibility during installation:

• 15W
• 30W
• 40W
• 50W
• 65W

Lower settings can be used where less light is required, while the 65W setting provides the fixture's maximum-output configuration.

5CCT Selectable

Choose 3000K, 3500K, 4000K, 5000K or 6500K to match different commercial interiors and project specifications.

Sensor Included + 0–10V Dimming

A sensor is included with this model. Together with 0–10V dimming, selectable wattage and selectable CCT, the fixture provides multiple lighting-control and commissioning options for commercial projects.

Commercial Applications

• Commercial buildings
• Large office areas
• Educational facilities
• Healthcare facilities
• Retail environments
• Institutional facilities
• High-output commercial lighting upgrades

Frequently Asked Questions

What makes this a high-output 2x2 LED panel?

This model provides up to 10,000 lumens from a 2x2 fixture, giving it significantly higher maximum output than the 6,250-lumen 50W version in the JCE Lighting panel range.

What wattage settings are available?

Select from 15W, 30W, 40W, 50W and 65W.

Does this panel include a sensor?

Yes. The sensor is included with this model.

What color temperatures are available?

Select 3000K, 3500K, 4000K, 5000K or 6500K.

Is this fixture DLC certified?

Yes. The DLC Product ID is S-X16TXC.
