2FT 320W LED Linear High Bay Light – 5 Wattage & 6CCT Selectable, Sensor Included
LUMENS35,200-80,000 lm
WATTAGE150W / 180W / 220W / 250W / 320W
VOLTAGE120–277V
CCT3000K-6500K
WARRANTY5 year
Certification Passed：
2FT 320W LED Linear High Bay Light – 5 Wattage & 6CCT Selectable, Sensor Included
DIRECT PRICE
$136.95
● Dallas, TX & LA, CA Hubs · Ships in 24h
Bulk Savings
10% at $1,000+ · 14% at $3,000+ · 17% at $5,000+ · 20% at $8,000+
2FT 320W LED Linear High Bay Light – 5 Wattage & 6CCT Selectable, Sensor Included
2FT
VOLUME PRICING
Large Volume Quote Request
Please provide your procurement details; Our sales team will contact you within 1 business day to provide a customized quote.
Volume Savings
Eligible order-level volume savings are calculated using your combined cart value. Final discount eligibility is confirmed at checkout.
| Spend | Save |
|---|---|
| $1,000–$2,999.99 | 10% |
| $3,000–$4,999.99 | 14% |
| $5,000–$7,999.99 | 17% |
| $8,000+ | 20% |
*Only qualifying items count toward eligible order savings; existing discounts and gift cards may affect eligibility.
Halloween Sale Coupons
Save up to $280 on your order!
$30 OFF
On orders $300+
Code:
HALLOWEEN30
$60 OFF
On orders $500+
Code:
HALLOWEEN60
$130 OFF
On orders $1000+
Code:
HALLOWEEN130
$280 OFF
On orders $2000+
Code:
HALLOWEEN280
Coupon eligibility and any combination restrictions are determined at checkout.
2FT 320W LED Linear High Bay Light – 5 Wattage & 6CCT Selectable, Sensor Included
2FT

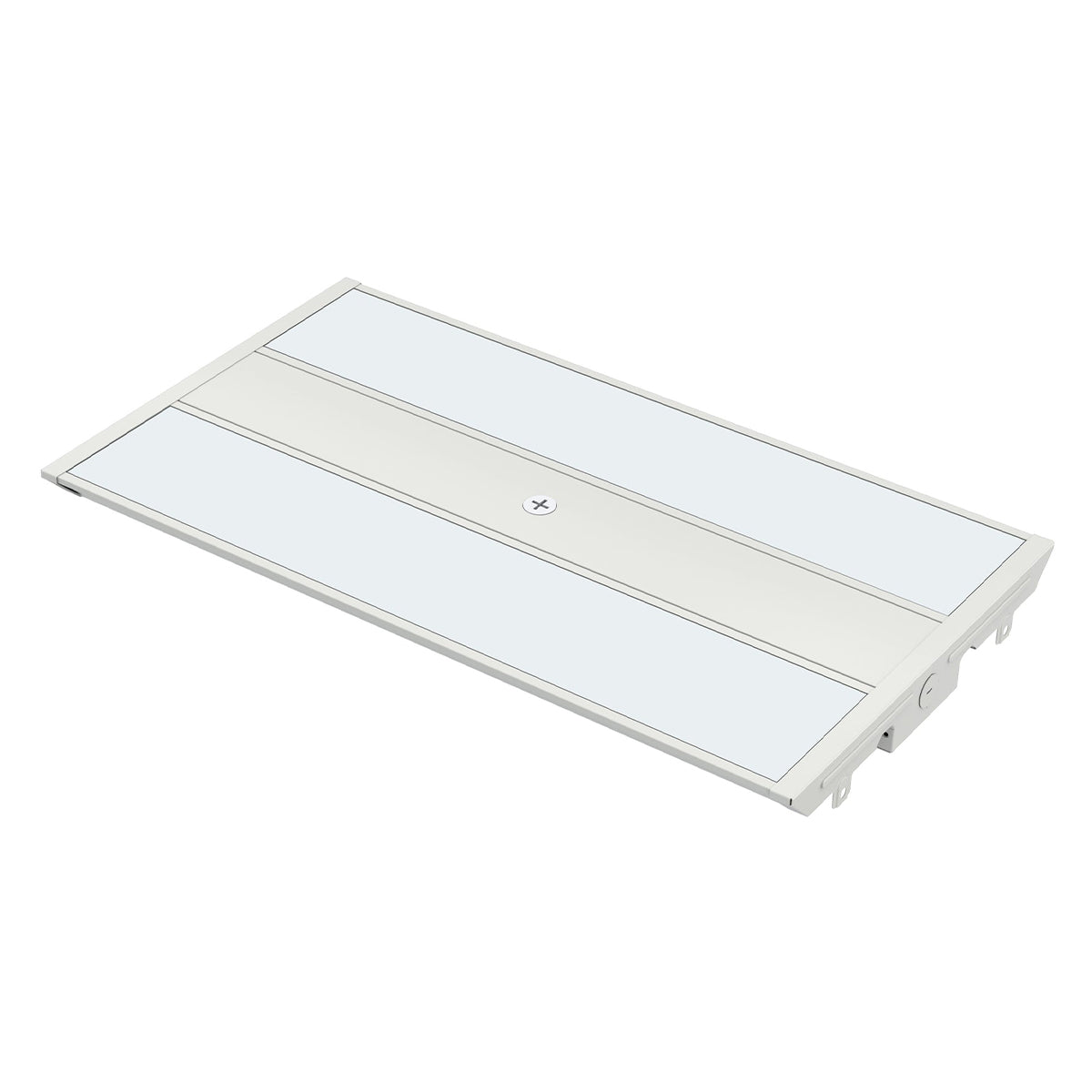

Compact 2FT 320W Selectable LED Linear High Bay
The G4 Series 2FT 320W LED Linear High Bay combines high commercial light output with a compact fixture footprint. It is designed for warehouses, manufacturing facilities and industrial spaces where high lumen output is required but a shorter linear fixture is preferred.
The fixture delivers up to 52,800 lumens at 165 lm/W and provides five selectable wattage levels, six selectable color temperatures, 120–277V input and an included AUX sensor system.
Key Features
- Compact 2FT Design: High output in a shorter fixture footprint
- 5 Wattage Selectable: 150W / 180W / 220W / 250W / 320W
- Maximum Output: Up to 52,800 lumens
- Luminous Efficacy: Up to 165 lm/W
- 6CCT Selectable: 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Input Voltage: 120–277V
- AUX Sensor Base: Included
- Sensor: Included
- Sold Individually: Price is per fixture
High Output in a Compact Form Factor
The 2FT housing provides a compact alternative to longer linear fixtures while maintaining output up to 52,800 lumens. This makes it suitable for projects where fixture dimensions, mounting layout or equipment placement make a shorter high-output luminaire preferable.
Five Field-Selectable Wattages
Select between 150W, 180W, 220W, 250W and 320W to match different ceiling heights and illumination requirements. A single fixture model can therefore be used across multiple areas of the same commercial project.
Selectable Color Temperature
Six selectable CCT settings — 3000K, 3500K, 4000K, 5000K, 5700K and 6500K — provide flexibility for different commercial and industrial environments.

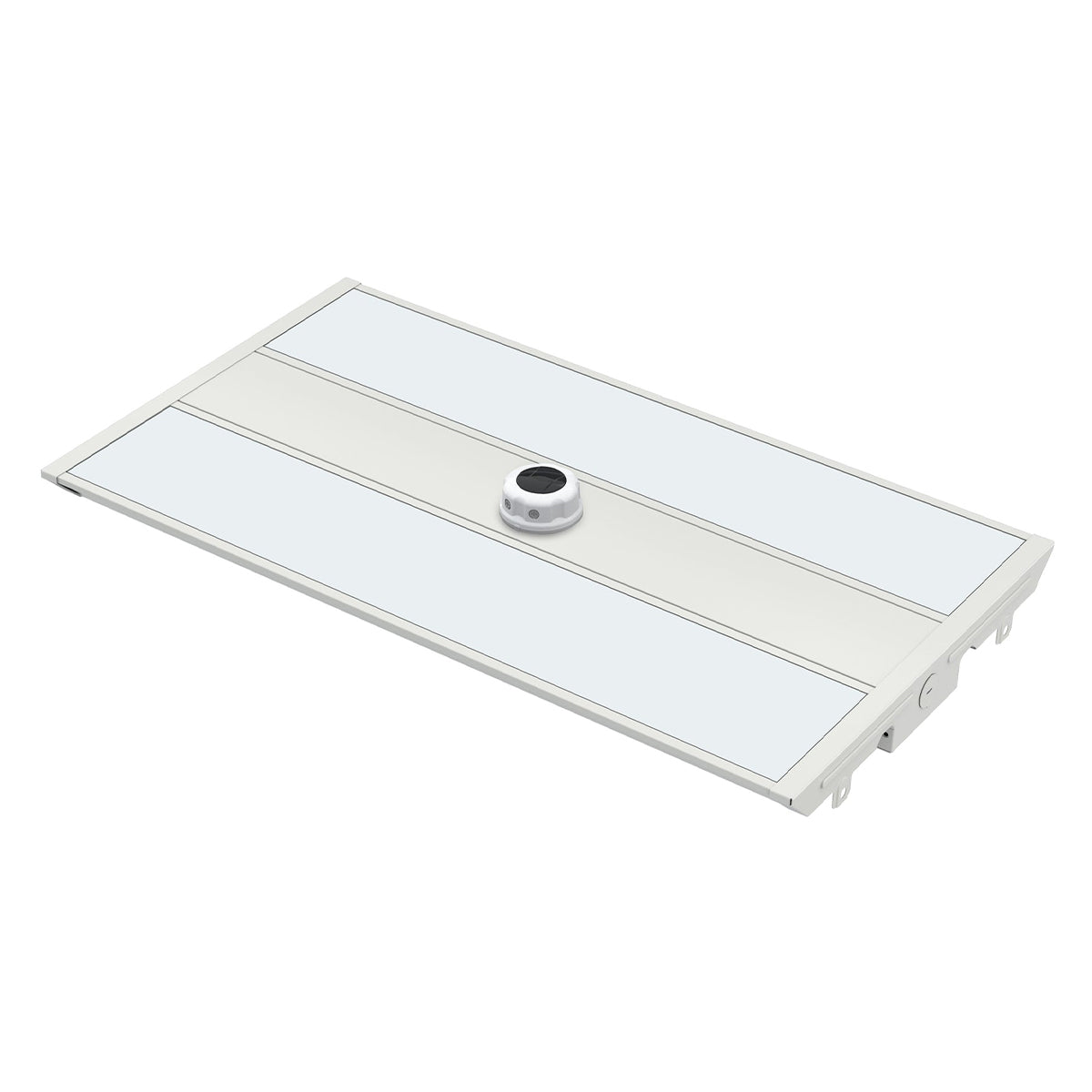

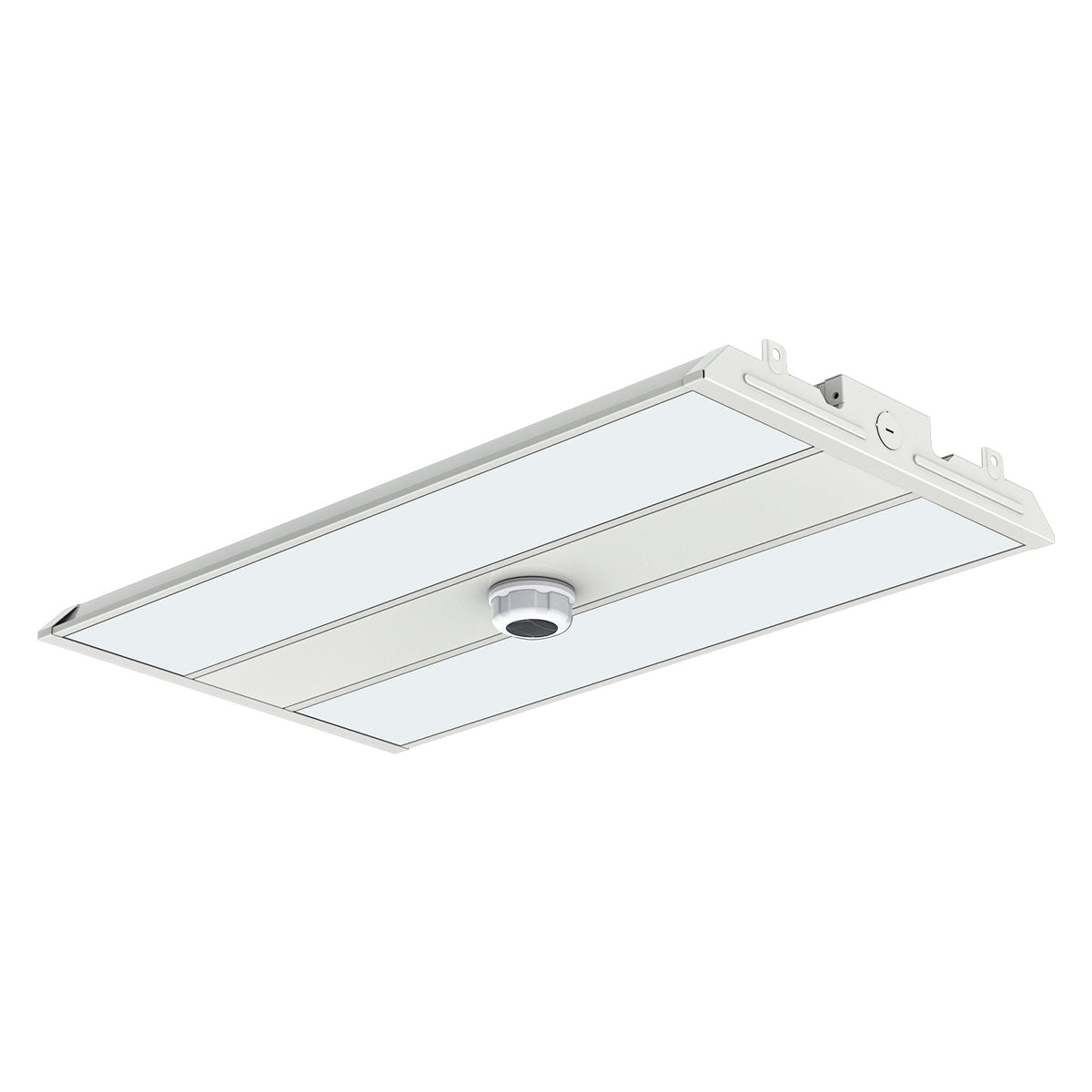

Sensor Included
The fixture includes both an AUX sensor base and compatible sensor, simplifying specification for projects that require sensor-based lighting control.
Recommended Applications
- Warehouses
- Manufacturing facilities
- Industrial production areas
- High-ceiling workshops
- Distribution facilities
- Commercial storage areas
- Applications requiring a compact high-output fixture
Technical Specifications
| Product Type | LED Linear High Bay Light |
|---|---|
| Series | G4 |
| Fixture Length | 2FT |

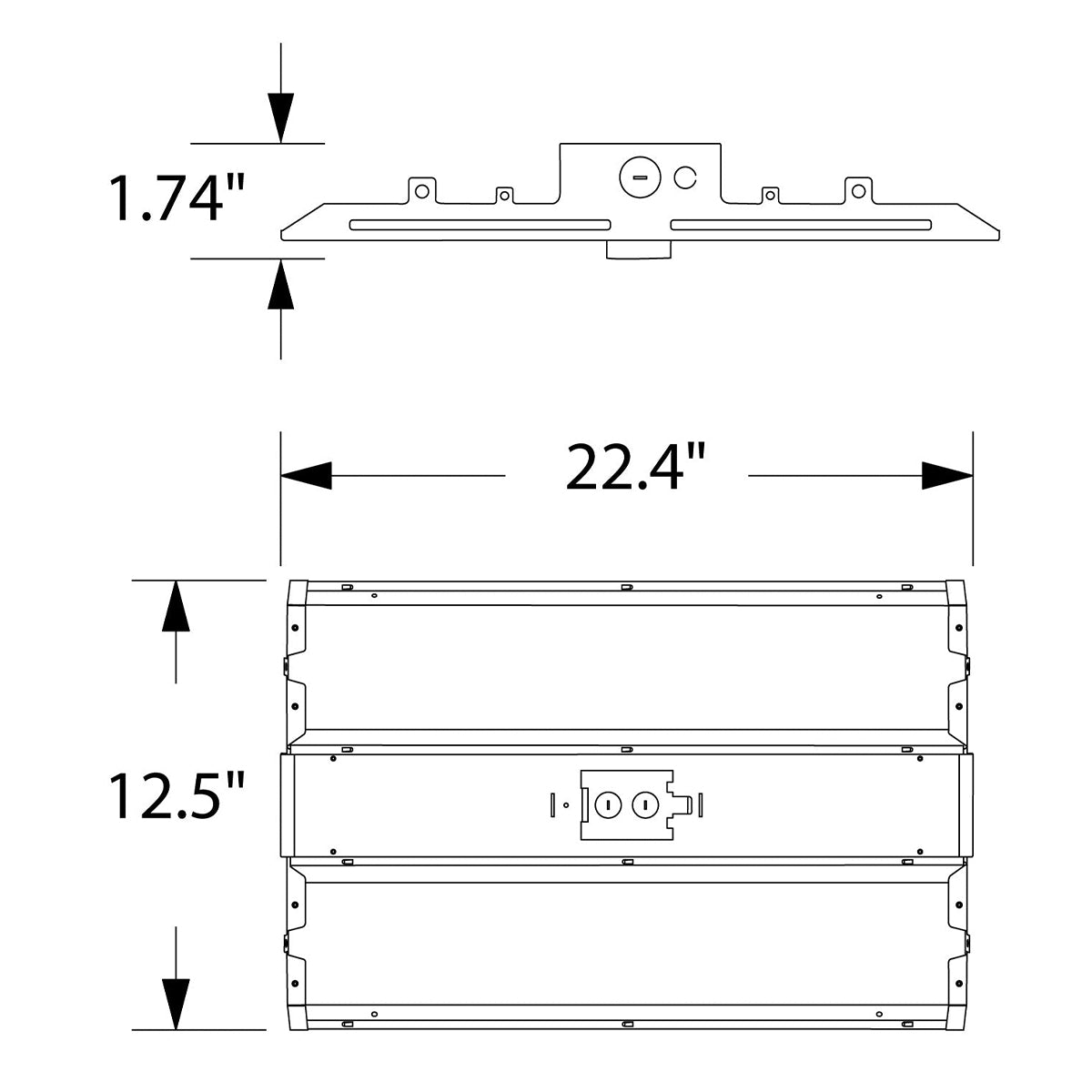

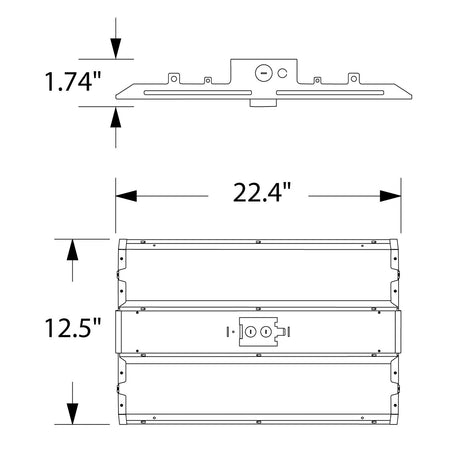

| Dimensions | 22.4" × 12.5" × 1.7" |
| Selectable Wattage | 150W / 180W / 220W / 250W / 320W |
| Maximum Lumens | 52,800 lm |
| Efficacy | Up to 165 lm/W |
| Selectable CCT | 3000K / 3500K / 4000K / 5000K / 5700K / 6500K |
| Input Voltage | 120–277V |
| Sensor Base | AUX Sensor Base Included |
| Sensor Included | Yes |
| DLC Product ID | S-2GZH61 |
| Sales Unit | 1 Fixture |
Frequently Asked Questions
Why choose the 2FT version instead of the 4FT version?
The 2FT version provides a shorter fixture footprint while maintaining high lumen output, making it suitable for layouts where mounting space or equipment positioning favors a more compact linear high bay.
Is the fixture fixed at 320W?
No. It provides 150W, 180W, 220W, 250W and 320W field-selectable settings.
Is the sensor included?
Yes. Both the AUX sensor base and sensor are included with this configuration.
Is this product sold as a 2-pack?
No. This product is sold individually, with one fixture per sales unit.
Specifications
| Wattage | 150W / 180W / 220W / 250W / 320W | Efficacy per W | 160 lm/W |
|---|---|---|---|
| Certifications | DLC / UL | Lifespan | 50000 hours |
| Lumens | 35,200-80,000 lm | Voltage | 120–277V |
| Color Temperature Range | 3000K-6500K | Size | 2FT |
| Applications | Warehouse high-bay lighting Distribution center aisle lighting Manufacturing floor lighting Industrial retrofit projects Commercial facilities using selectable wattage and CCT fixtures |
Dimming Details | 0-10V Dimming |
| Operating Temperature | -4°F~122°F | Warranty | 5 year |
