25W Emergency LED Driver ¨C 90-Minute Backup | UL Listed | High Power Output

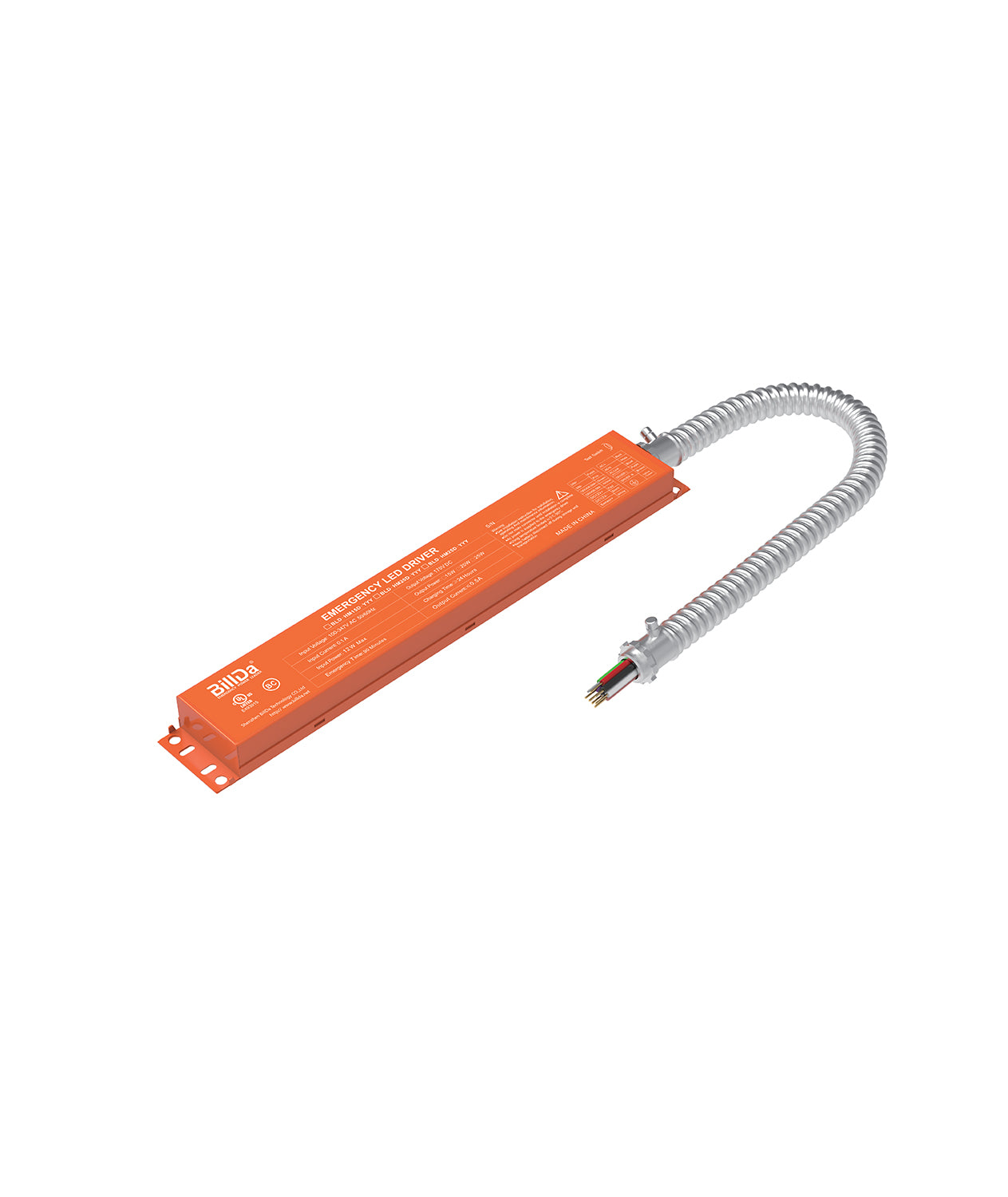

25W Emergency LED Driver (90-Minute Battery Backup | UL Listed | High-Power Constant Output)

Engineered to supply high-lumen emergency illumination during main power failures, this 25W Emergency LED Driver provides high-output backup power for heavy-duty commercial and industrial LED luminaires. Operating on a universal AC input, this high-power emergency driver automatically senses utility line-voltage loss and instantly transfers connected fixtures to internal battery power, delivering a constant 25W output for a minimum of 90 minutes. Designed specifically for high-ceiling, high-wattage installations—such as LED high bays, large commercial panels, troffers, linear shop lights, and exterior canopy fixtures—it ensures high-visibility emergency egress lighting while meeting strict building life-safety codes.

• 90-Minute Emergency Backup: Heavy-duty, high-temperature rechargeable LiFePO4/Lithium-ion battery system ensures a full 90 minutes of continuous emergency lighting during utility power outages.

• 25W High Constant Power Output: Delivers a powerful, stable 25W output (~2,500–3,500+ emergency lumens depending on fixture efficacy) across the entire 90-minute discharge cycle without brightness degradation or drop-off.

• High-Ceiling Egress Optimization: Engineered to power larger commercial fixtures and high-bay luminaires, ensuring sufficient ground-level foot-candle levels in warehouses, gymnasiums, industrial plants, and high-ceiling corridors.

• Universal Input Voltage (AC100–277V): Compatible with standard commercial power grids (120V, 208V, 240V, and 277V), streamlining inventory management and installation across various job sites.

• Instant Automatic Transfer Switch: High-reliability solid-state switching circuitry detects AC line power loss in milliseconds, transitioning fixtures immediately to emergency mode without blackout gaps.

• Compact Heavy-Duty Metal Housing: Slim metal enclosure fits easily into driver raceways, fixture wiring compartments, or surface-mounted junction boxes for factory pre-wiring and field retrofit upgrades.

• Integrated Test Switch & Charging Indicator: Includes an illuminated push-to-test button and dual-color LED status indicator light for quick monthly code compliance testing and battery health checks.

• UL 924 Listed & Code Compliant: Certified to meet stringent UL 924 Emergency Lighting Standards, NFPA 101 Life Safety Code, NEC mandates, and OSHA facility safety requirements; CEC Title 20 efficiency compliant.

?? Key Selling Points

• 90-Minute Emergency Runtime
  Provides up to 1.5 hours of backup lighting, meeting U.S. emergency lighting requirements for safety and code compliance.
• UL Listed for Safety & Reliability
  Certified to UL standards, ensuring trusted performance in commercial installations.
• High Output Power ¨C 25W
  Supports higher wattage LED fixtures, ideal for large spaces requiring stronger emergency illumination.
• Wide Voltage Input (100¨C347Vac)
  Compatible with most commercial and industrial electrical systems across North America.
• Stable High Voltage Output (170VDC)
  Delivers consistent emergency power and connects directly to the LED driver¡¯s AC input.
• Energy Efficient Design
  Low input current (0.1A max) with 12W max input power for efficient operation.
• Built-in Test Switch
  Allows quick and easy testing of emergency functionality for maintenance and inspection.

?? Ideal Applications

Designed for demanding environments:

• Warehouses & logistics centers
• Manufacturing facilities
• Parking garages
• Commercial buildings & offices
• Retail & large-scale spaces

?? Specifications

• Input Voltage: 100¨C347Vac, 50/60Hz
• Input Current: 0.1A Max
• Input Power: 12W Max
• Output Voltage: Up to 170VDC
• Output Power: 25W
• Emergency Duration: 90 Minutes (1.5 Hours)
• Certification: UL Listed

? Why Choose This 25W Emergency Driver?

When higher output matters, this 25W emergency driver delivers. It provides stronger backup power, making it perfect for larger fixtures and high-ceiling applications. With UL certification, wide voltage compatibility, and reliable 90-minute runtime, it¡¯s a dependable solution for upgrading your lighting system to meet modern safety standards.
