Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.

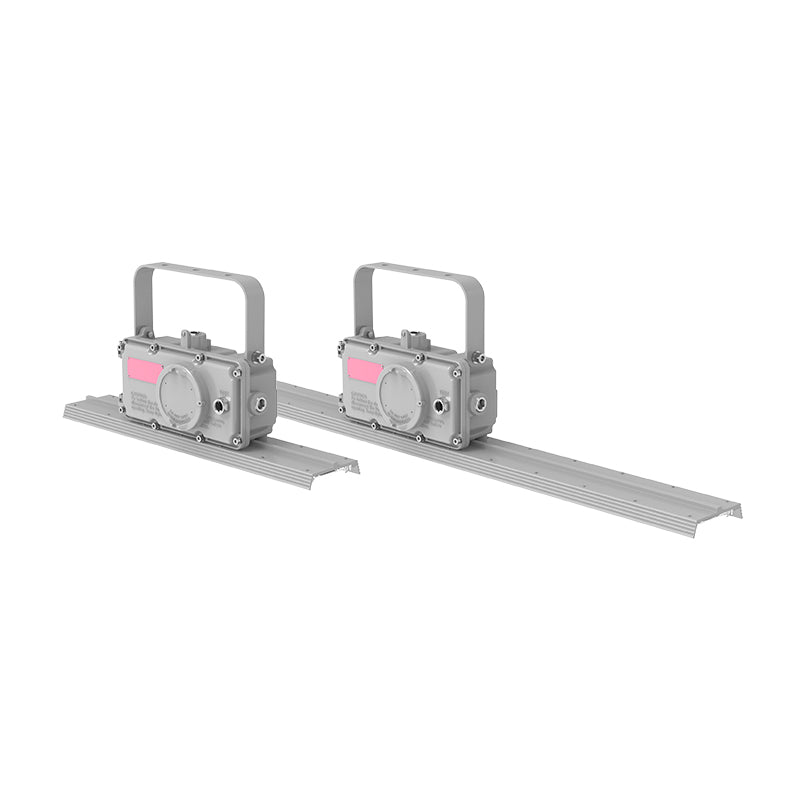

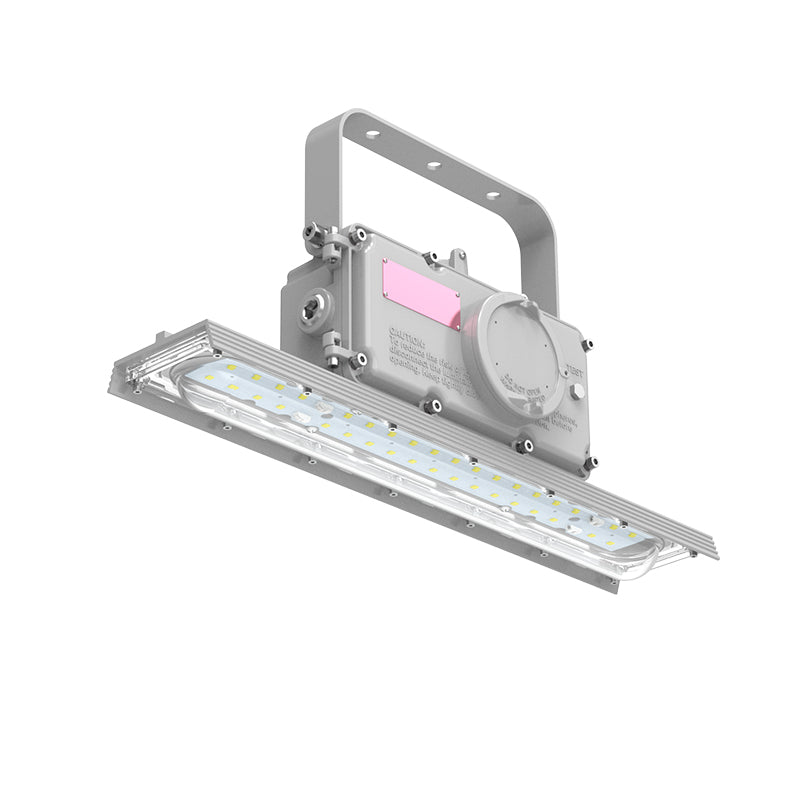

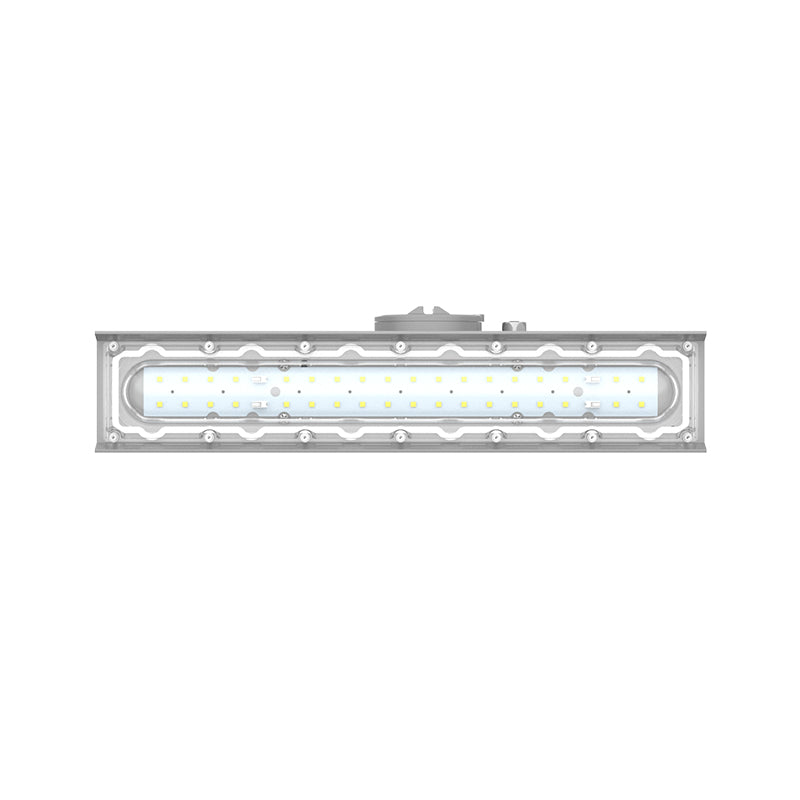

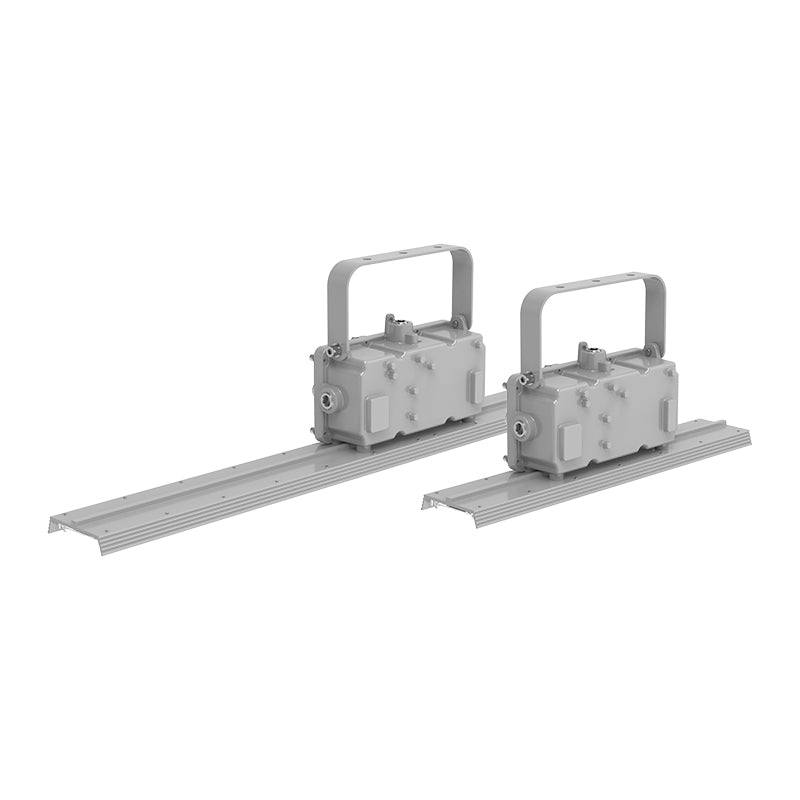

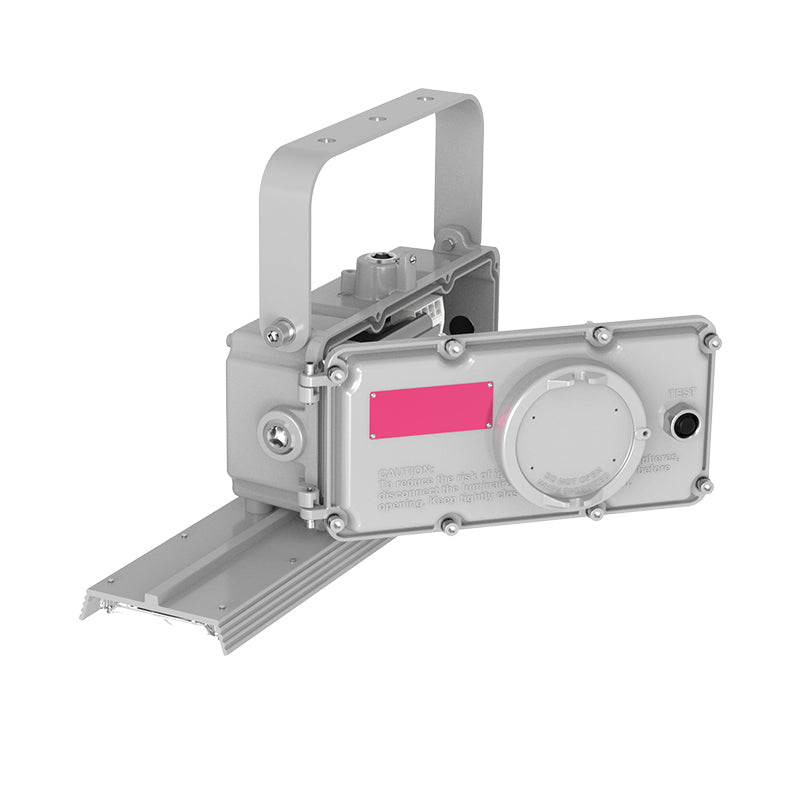

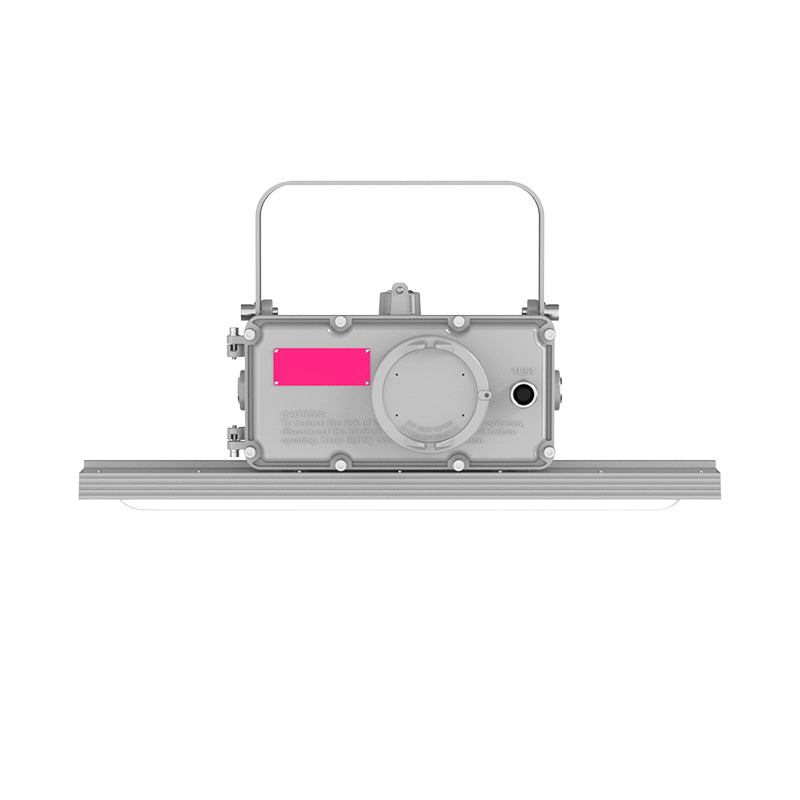

20W Hazardous Location LED Light
The JCE Lighting EX-20W H2D50D120 5000K is a 20W LED luminaire designed for industrial lighting projects where hazardous-location requirements must be evaluated against the applicable product certification. It features a 5000K color temperature, 100–277V AC input, a specified luminous efficacy of 180 lm/W, IP66 ingress protection, and a die-cast aluminum housing.
This model includes 3030 LEDs, a Mean Well driver, 0–10V dimming, a 120° beam angle, and a frosted PC lens. The fixture is designed for bracket mounting and has an M16 side hole. Before specifying it for a classified hazardous location, verify the exact UL certification scope and installation requirements for this model.
Key Features
- 20W LED Luminaire: For industrial lighting projects requiring a compact, low-wattage fixture.
- 5000K Color Temperature: Cool-white lighting for suitable industrial environments.
- 100–277V AC Input: Confirm supply voltage compatibility at the installation site.
- 180 lm/W Specified Efficacy: Listed efficacy; refer to the model-specific datasheet for test conditions and verified output.
- IP66 Ingress Protection: Rated for dust-tight protection and powerful water jets under applicable test conditions. IP66 alone does not establish hazardous-location suitability.
- UL Hazardous-Location Certification: Confirm the exact model coverage, classification, and installation conditions in the applicable UL documentation before use in a classified location.
- Die-Cast Aluminum Housing: Metal fixture construction as specified.
- Frosted PC Lens: Polycarbonate light-transmitting lens.
- 3030 LEDs and Mean Well Driver: Specified LED package type and driver brand.
- 0–10V Dimming: Use with compatible dimming controls and wiring.
- 120° Beam Angle: Specified wide-beam distribution.
- Bracket Mounting: Confirm bracket details and mounting requirements before installation.
- 5-Year Warranty: Subject to the applicable warranty terms.
Technical Specifications
| Brand | JCE Lighting |
|---|---|
| Model | EX-20W H2D50D120 5000K |
| Product Type | Industrial LED Luminaire |
| Certification | UL、ETL、CSA |
| Rated Power | 20W |
| Color Temperature | 5000K |
| Input Voltage | 100–277V AC |
| Specified Luminous Efficacy | 180 lm/W |
| LED Type | 3030 LEDs |
| LED Driver | Mean Well |
| Dimming | 0–10V |
| Beam Angle | 120° |
| Lens | Frosted PC (polycarbonate) |
| Housing Material | Die-Cast Aluminum |
| Ingress Protection | IP66 |
| Fixture Length | 600 mm |
| Mounting | Bracket Mount |
| Side Hole | M16 |
| Operating Temperature | -40°C to 60°C |
| Warranty | 5 years |
Applications and Project Suitability
This luminaire may be evaluated for general industrial lighting projects and for hazardous-location projects where the applicable certification permits its use. The intended application must be matched to the exact UL certification, environmental conditions, installation method, and local electrical code requirements.
Do not select this fixture for a classified hazardous location based on the IP66 rating alone. Before ordering or installation, review the model-specific certification documents, installation instructions, electrical requirements, mounting details, and environmental limitations.
Ordering and Technical Support
Contact JCE Lighting for project quotations, bulk-order inquiries, and available technical documentation. For hazardous-location projects, request the applicable UL certificate or listing information, product datasheet, and installation instructions so the product can be checked against the project's requirements.
Frequently Asked Questions
Is the EX-20W H2D50D120 suitable for hazardous locations?
UL hazardous-location certification has been reported as confirmed, but the exact classification and model coverage must be verified against the applicable certification documents. Confirm that the listing covers the intended location and installation conditions before use.
Does IP66 mean the fixture is explosion-proof?
No. IP66 describes ingress protection against dust and powerful water jets under applicable test conditions. It does not by itself establish explosion protection or hazardous-location approval.
What input voltage and dimming method does this fixture use?
The specified input is 100–277V AC, and the specified dimming method is 0–10V. Verify wiring and control compatibility using the installation documentation.
What is the operating temperature range?
The specified operating temperature range is -40°C to 60°C (-40°F to 140°F). Confirm any additional limitations in the product documentation for the intended installation.
What warranty is provided?
The specified warranty is 5 years, subject to the applicable warranty terms and conditions.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 20W |
| Certifications | UL、ETL、CSA |
| Lifetime | 50000 hours |
| Voltage | 100-277VAC |
| IP Rating | ip66 |
| Beam Angle | 120° |
| Size | 28*17*12.5, 19.8 |
