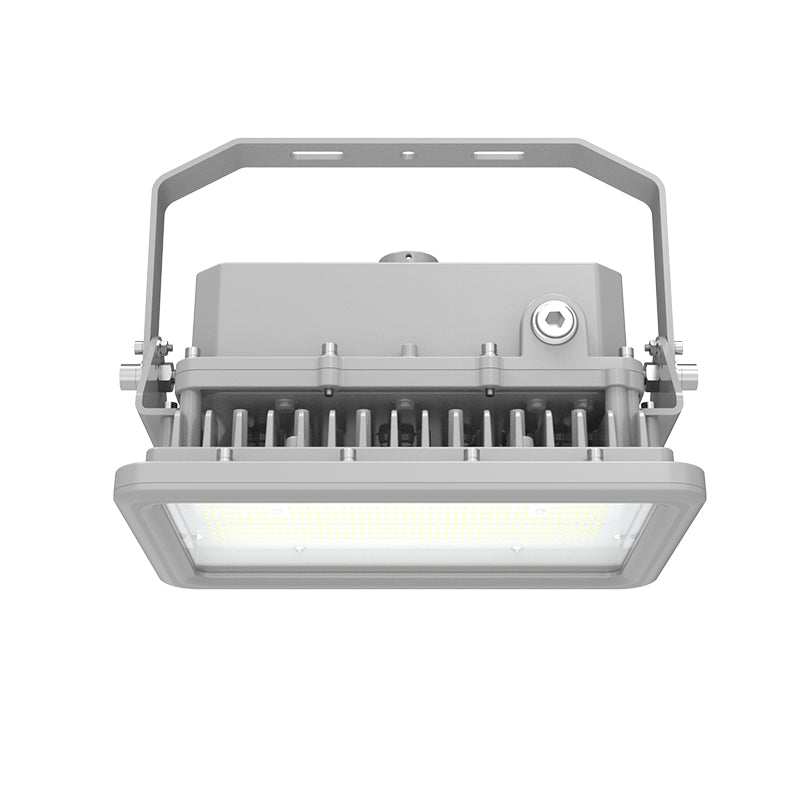

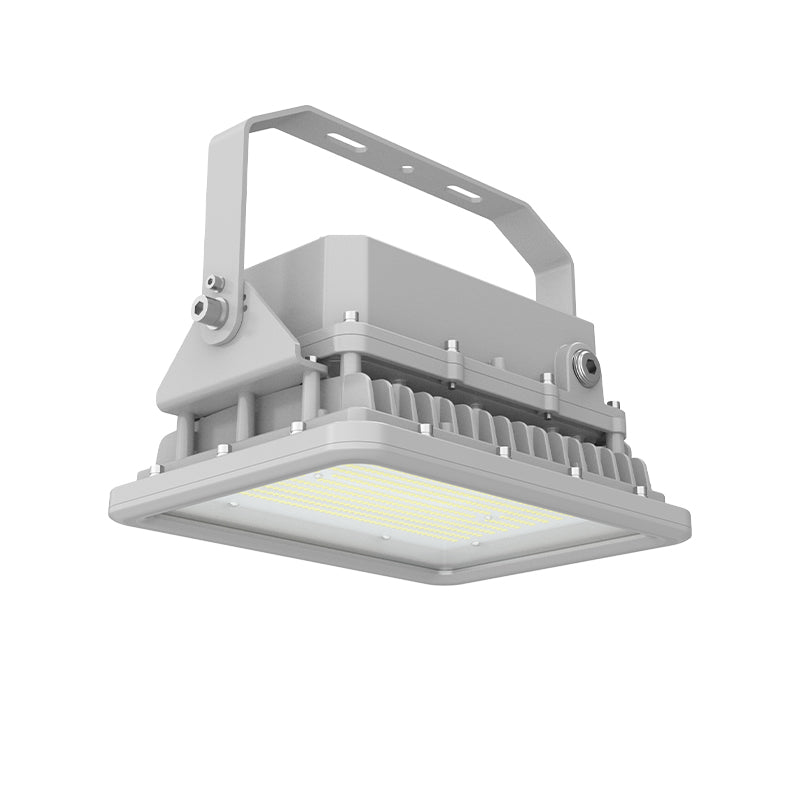

200W Explosion-Proof LED Light, 5000K, 100–277V AC, IP66, 0–10V Dimmable
200W Explosion-Proof LED Light, 5000K, 100–277V AC, IP66, 0–10V Dimmable
Regular price
$200.00 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
The JCE Lighting 200W Explosion-Proof LED Light is an industrial lighting fixture specified with 5000K correlated color temperature, 100–277V AC input, IP66 ingress protection, and 0–10V dimming. Designed with a flat glass lens, mounting bracket, and 1/2-inch NPT side entry, this fixture provides key technical specifications for industrial lighting project evaluation and procurement.
Key Features
- 200W Power: Specified for industrial lighting project requirements.
- 5000K Color Temperature: Provides a cool-white light color for industrial environments.
- 100–277V AC Input: Check compatibility with the electrical supply at the installation site.
- 0–10V Dimming: Supports a 0–10V dimming control interface.
- IP66 Rating: Rated for protection against dust ingress and powerful water jets under applicable test conditions.
- Flat Glass Lens: Features a flat glass light-transmitting surface.
- Mounting Bracket: Designed for bracket-mounted installation.
- Mean Well Driver: Specified with a Mean Well LED driver.
- 5-Year Warranty: Warranty coverage is subject to the applicable warranty terms.
Technical Specifications
| Product Type | Explosion-Proof LED Luminaire |
|---|---|
| Model | EX-200W A3D50D120 5000K |
| Power | 200W |
| Color Temperature | 5000K |
| Input Voltage | 100–277V AC |
| Luminous Flux | 105,000 lm |
| LED Type | 3030 LED |
| Dimming | 0–10V |
| LED Driver | Mean Well |
| Ingress Protection | IP66 |
| Lens | Flat Glass |
| Mounting | Bracket Mount |
| Cable Entry | 1/2-inch NPT Side Entry |
| Dimensions | 380 × 230 mm |
| Warranty | 5 Years |
Installation and Application Considerations
Before specifying this fixture for a project, verify the required mounting arrangement, electrical supply, dimming control compatibility, cable entry, environmental conditions, and applicable installation requirements.
For any installation in a hazardous or classified location, confirm the required Class, Division, Group or Zone, as applicable, and verify that the exact product model has the necessary approvals and documentation for that location. The IP66 rating alone does not establish explosion-protection certification or suitability for a hazardous location.
Request Technical Information
For project quotations, bulk purchasing, or technical evaluation, contact JCE Lighting to request the available product datasheet, installation instructions, and applicable certification documentation.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 200W |
| Certifications | UL/ETL/CSA |
| Lifetime | 50,000 Hours |
| Voltage | 120-277VAC |
| IP Rating | IP66 |
| Beam Angle | 120° |
| Size | 19.7*19*14,40 |
