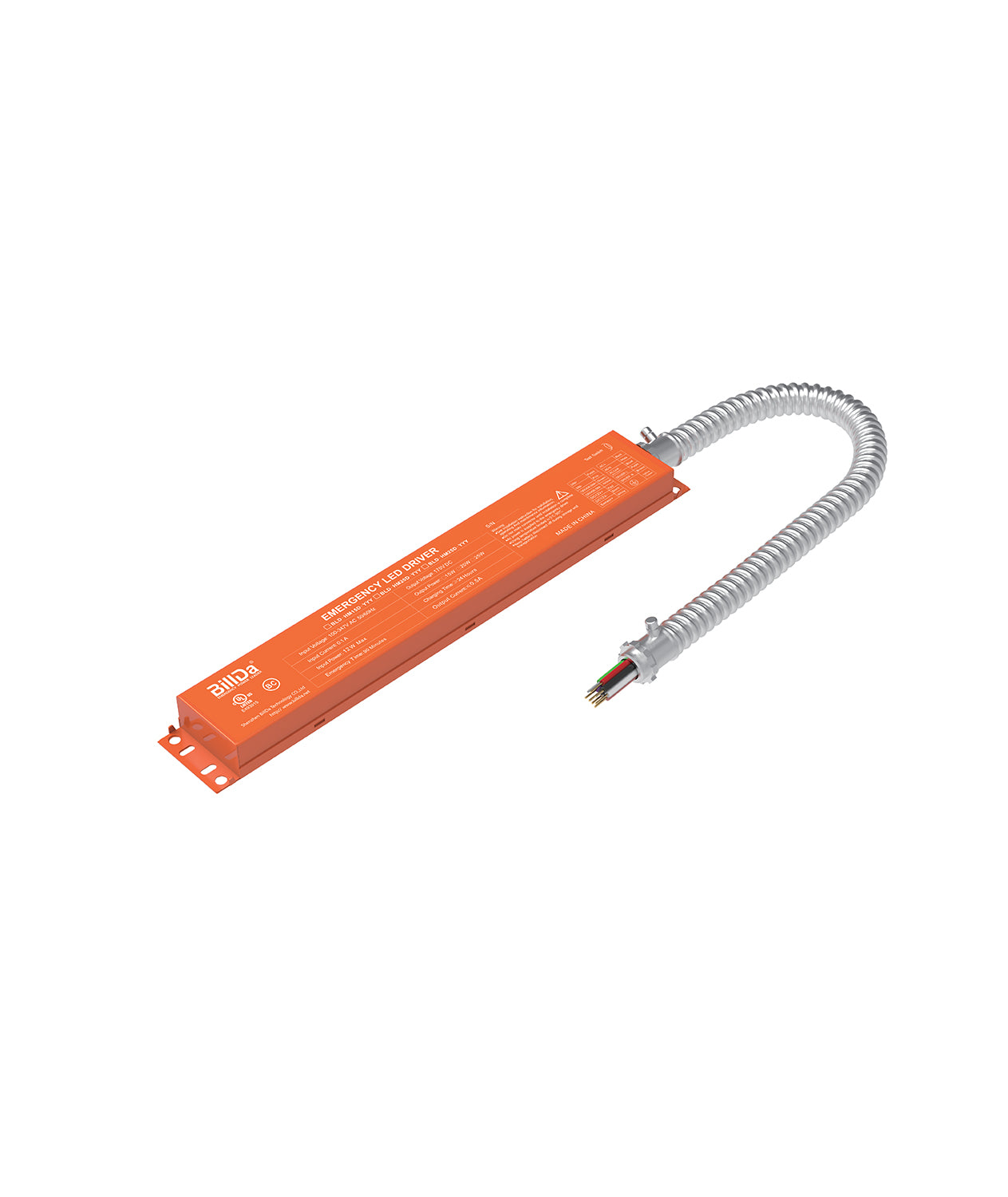

15W Emergency LED Driver ¨C 90-Minute Backup | UL Listed | 100¨C347V

Engineered to deliver high-output emergency illumination during unexpected power outages, this 15W Emergency LED Driver provides uninterrupted backup power for medium- to high-lumen commercial and industrial LED fixtures. Featuring an extended input voltage range of AC100–347V, this driver operates seamlessly across standard commercial circuits as well as Canadian 347V power lines. Upon AC utility failure, it automatically switches connected luminaires to battery backup mode in under a second, delivering a constant 15W of output for a minimum of 90 minutes. Its compact metal enclosure allows easy installation inside or alongside commercial LED panels, troffers, linear strip lights, vapor-tight fixtures, and downlights to ensure strict life safety compliance.

• 90-Minute Emergency Backup: High-capacity, long-life rechargeable battery system supplies dependable emergency lighting for at least 90 minutes during main power failures.

• 15W High Constant Power Output: Delivers a powerful, stable 15W output (~1,500–2,000+ emergency lumens depending on fixture efficacy), providing optimal visibility across larger spaces, higher ceilings, and egress paths.

• Extended Voltage Compatibility (AC100–347V): Supports standard commercial voltages (120V, 208V, 240V, 277V) plus high-voltage 347V Canadian electrical grids without requiring step-down transformers.

• Instant Automatic Transfer Switch: Intelligently senses loss of normal AC power and transfers the fixture to battery backup mode in milliseconds, preventing prolonged blackout gaps.

• Slim & Low-Profile Metal Housing: Compact enclosure fits neatly inside narrow driver compartments, raceways, or surface-mounted junction boxes for both factory pre-wiring and field retrofits.

• Integrated Test Switch & LED Indicator: Includes a illuminated push-to-test button and dual-color LED charging indicator light for fast monthly testing, status monitoring, and code inspection.

• UL 924 Listed & Code Compliant: Certified to meet stringent UL 924 Emergency Lighting Standards, NFPA 101 Life Safety Code, NEC mandates, and OSHA facility requirements; CEC Title 20 efficiency compliant.

?? Key Selling Points

• 90-Minute Emergency Runtime
  Provides up to 1.5 hours of backup lighting, meeting U.S. emergency lighting code requirements.
• UL Listed for Safety & Compliance
  Certified to UL standards, ensuring reliability, safety, and approval for commercial installations.
• Wide Voltage Input (100¨C347Vac)
  Compatible with a wide range of electrical systems across the U.S. and North America.
• High Voltage Output (170VDC)
  Stable 170VDC output connects directly to the LED driver for seamless emergency operation.
• 15W Constant Emergency Power
  Supports higher wattage fixtures, making it ideal for large commercial lighting applications.
• Built-in Test Switch
  Easy maintenance with integrated testing functionality for quick system checks.

?? Ideal Applications

Designed for safety-critical environments:

• Warehouses & distribution centers
• Commercial buildings & offices
• Parking garages
• Retail stores & supermarkets
• Industrial facilities

?? Specifications

• Input Voltage: 100¨C347Vac, 50/60Hz
• Output Voltage: 170VDC
• Output Power: 15W
• Emergency Duration: 90 Minutes
• Certification: UL Listed

? Why It Matters

In emergency situations, lighting is not optional¡ªit¡¯s critical. This UL-listed 15W emergency driver ensures your facility remains illuminated, compliant, and safe when power fails. With reliable performance and easy integration, it's a must-have upgrade for any professional LED lighting system.
