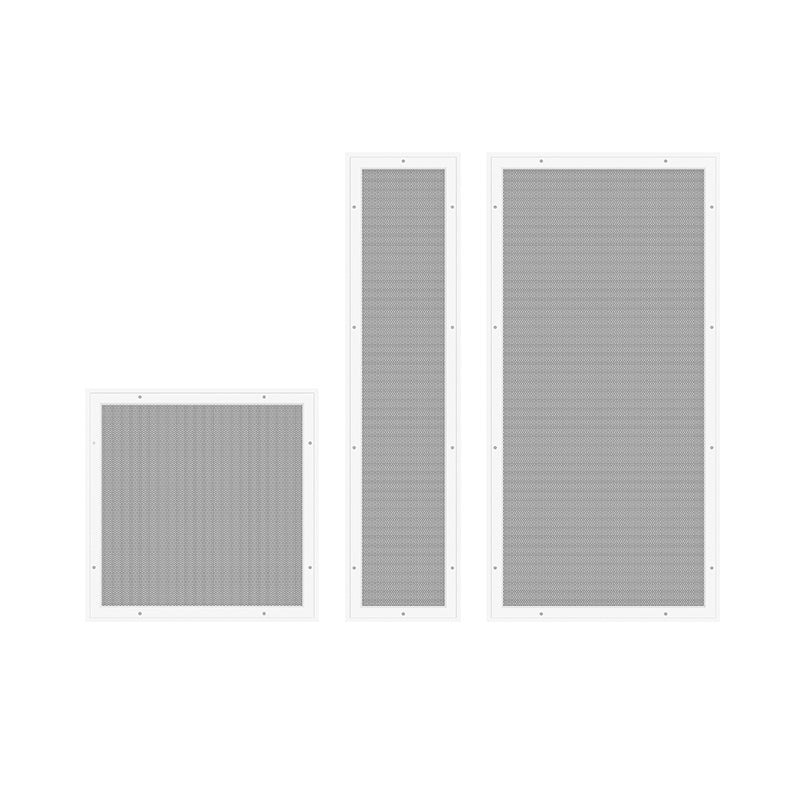

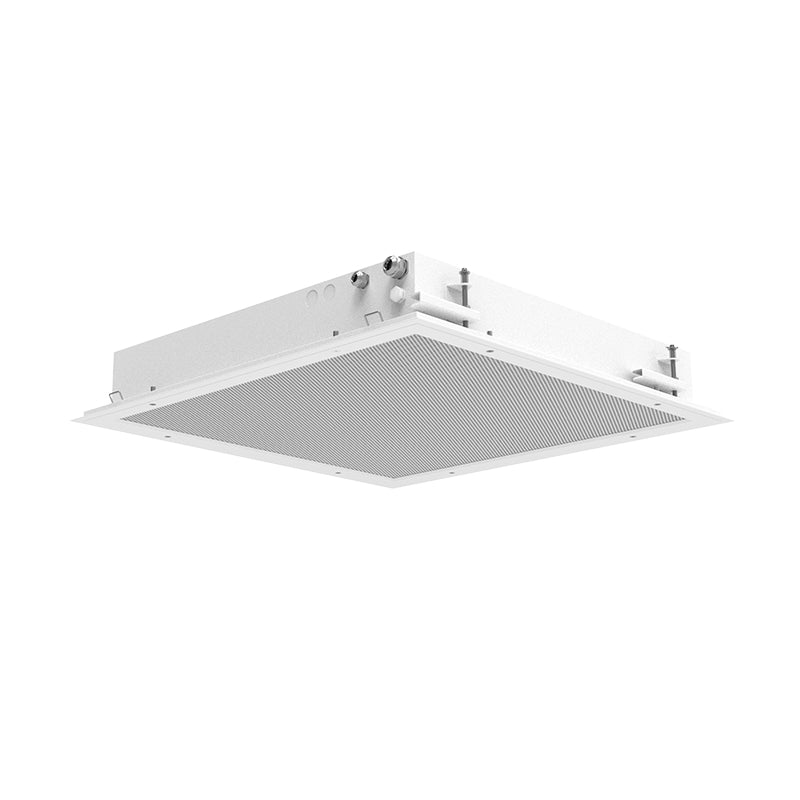

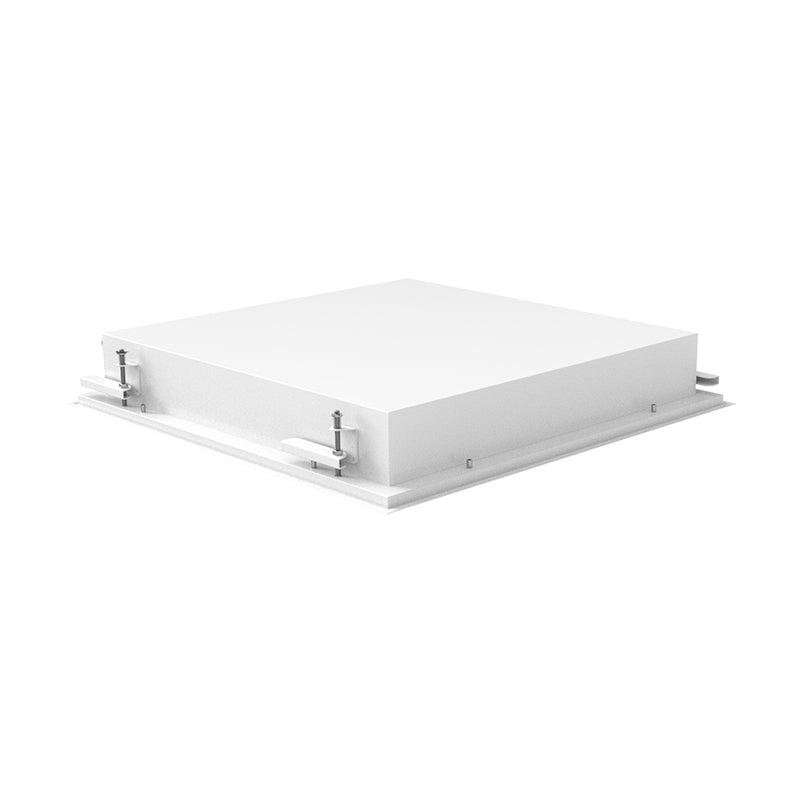

150W LED Cleanroom Light
The JCE Lighting EX-XFLD22-150WD50N277 is a 150W LED cleanroom luminaire designed for cleanroom lighting applications. It features a 5000K color temperature, 120–277V AC input, and 0–10V dimming to support lighting specifications for compatible commercial and industrial projects.
With a rated luminous efficacy of 130 lumens per watt and a 100-degree beam angle, this fixture combines defined lighting specifications with a confirmed sealed construction. It is equipped with a BQ driver and backed by a 5-year warranty.
Key Features
- 150W LED Output: A 150W fixture for cleanroom lighting projects.
- 5000K Color Temperature: A daylight-white color appearance for compatible work and facility environments.
- 120–277V AC Input: Designed for electrical systems within the specified input voltage range.
- 0–10V Dimming: Supports dimming with a compatible 0–10V control system.
- 130 lm/W Luminous Efficacy: Rated efficacy of 130 lumens per watt.
- 100° Beam Angle: A defined beam angle for lighting layout and fixture selection.
- Sealed Construction: Confirmed sealed construction for cleanroom lighting applications. Verify project-specific cleanliness and environmental requirements before specification.
- BQ Driver: Equipped with a BQ driver.
- 5-Year Warranty: Covered by a 5-year warranty, subject to the applicable warranty terms.
Technical Specifications
| Product Type | LED Cleanroom Luminaire |
|---|---|
| Model Number | EX-XFLD22-150WD50N277 |
| Power | 150W |
| Color Temperature | 5000K |
| Input Voltage | 120–277V AC |
| Dimming | 0–10V dimming |
| Luminous Efficacy | 130 lm/W |
| Beam Angle | 100° |
| Driver | BQ |
| Construction | Sealed construction |
| Warranty | 5 years |
| Model Certification | Not specified |
| IP Rating | Not specified |
| CRI | Not specified |
| Mounting Method | Confirm with the supplier before installation planning. |
Cleanroom Lighting Project Considerations
When selecting a cleanroom luminaire, evaluate the required illumination level, ceiling configuration, cleaning procedures, environmental conditions, and applicable facility requirements. Confirm the fixture's mounting method, ingress protection rating, certification status, and suitability for the intended cleanroom classification before finalizing the project specification.
Frequently Asked Questions
What is the power rating of this cleanroom luminaire?
This model is rated at 150W.
What is the color temperature?
The fixture has a 5000K color temperature.
What input voltage does this fixture support?
The specified input voltage is 120–277V AC. Confirm that the available supply voltage is within this range before installation.
Is this cleanroom light dimmable?
Yes. It supports 0–10V dimming when used with a compatible control system.
What is the luminous efficacy?
The specified luminous efficacy is 130 lumens per watt.
Does this fixture have a sealed construction?
Yes. Sealed construction has been confirmed. However, a specific IP rating, cleanroom classification, or contamination-control performance has not been provided. Verify these requirements against the applicable product documentation.
What certifications does this fixture have?
Certification details have not been confirmed for this model. Contact JCE Lighting for applicable certification documentation before specifying the fixture for a regulated facility or project with mandatory compliance requirements.
What is the warranty period?
This model comes with a 5-year warranty. Refer to the applicable warranty terms for coverage details.
How do I confirm whether this fixture is suitable for my cleanroom?
Compare the product documentation with your facility's requirements for cleanliness classification, sealing, ingress protection, mounting, and applicable certifications. Contact JCE Lighting if you need additional technical information before purchasing.
Specifications
| Wattage | 150W | Lifespan | 50,000 Hours |
|---|---|---|---|
| Voltage | 120-277VAC | Beam Angle | 100° |
| Size | 26*5.6*26,21 |
