1200W LED Sports Light, 5000K, 277-480VAC, 0–10V Dimming, IP66
Regular price
$850.00 USD
Bulk Savings
automatically applied on carts over $500 - Learn more
Couldn't load pickup availability
Light Your Project with Confidence
Our commercial lighting solutions are built for reliable performance and easy installation. Unbox, mount, and upgrade your parking lot, warehouse, or outdoor space with high-efficiency illumination.
Certification Passed

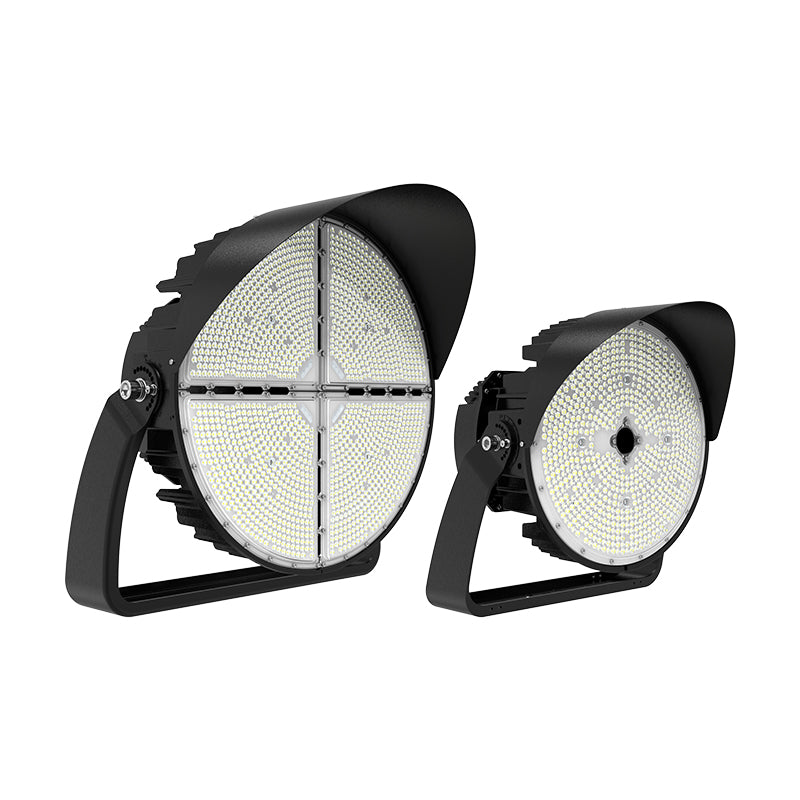

1200W Selectable LED Sports Light
The JCE Lighting SP-J21200W LED Sports Light features selectable 1200W power settings, along with 40° beam angles. Designed for sports lighting and outdoor area-lighting projects, this fixture combines 5000K color temperature, 0–10V dimming, and IP66 protection in a black die-cast housing with a square driver enclosure.
Key Features
- Wattage: 1200W
- Beam Angles: 40°
- 5000K Color Temperature: Provides a consistent daylight color appearance.
- 0–10V Dimming: Supports compatible 0–10V dimming controls.
- 135 lm/W Efficacy: Manufacturer-specified luminous efficacy of 135 lumens per watt.
- Inventronics Driver: Equipped with an Inventronics LED driver.
- IP66 Protection: Rated for protection against dust and powerful water jets when properly installed.
- Bracket Mounting: Bracket installation for suitable mounting structures.
- Die-Cast Housing: Black housing with a square driver enclosure.
- 5-Year Warranty: Covered by a 5-year warranty, subject to applicable warranty terms.
Technical Specifications
| Brand | JCE Lighting |
|---|---|
| Model | SP-J21200W 50D40N(277-480V) 5000K |
| Product Type | LED Sports Light |
| Selectable Wattage | 1200W |
| Color Temperature | 5000K |
| Input Voltage | 277-480VAC |
| Beam Angle | 40° |
| Dimming | 0–10V |
| Luminous Efficacy | 135 lm/W |
| LED Driver | Inventronics |
| Ingress Protection | IP66 |
| Mounting | Bracket Mount |
| Housing | Black die-cast housing with square driver enclosure |
| Warranty | 5 years |
| Certification | Not specified |
| Total Luminous Flux | Not specified |
Applications
This selectable-wattage LED sports light can be evaluated for sports fields, outdoor recreational areas, and other large-area lighting projects where the available wattage and beam-angle options meet the project's lighting design requirements. Confirm mounting compatibility, lighting calculations, and applicable local requirements before installation.
Frequently Asked Questions
Does this LED sports light support dimming?
Yes. It supports 0–10V dimming with compatible control equipment.
What is the IP rating?
The fixture is rated IP66. Installation and application suitability should be evaluated against the project's environmental requirements.
What warranty is provided?
The product comes with a 5-year warranty, subject to the applicable warranty terms.
Are certification details and total lumen output available?
Certification details and total luminous flux have not been specified in the available product information. Please confirm the relevant documentation and photometric data for project requirements.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Specifications
| Wattage | 1200W |
| Certifications | ETL, CE, UL |
| Lifetime | 50000 hours |
| Luminous | 162,000lm |
| Voltage | 277-480VAC |
| IP Rating | IP66 |
| Beam Angle | 40° |
| Color Temperature Range | 5000K |
| Efficacy per W | 135lm/W |
| Dimming Details | 0-10V |
| Size | 25.2*21.2*18.5,67.7 |
| Warranty | 5 year |
