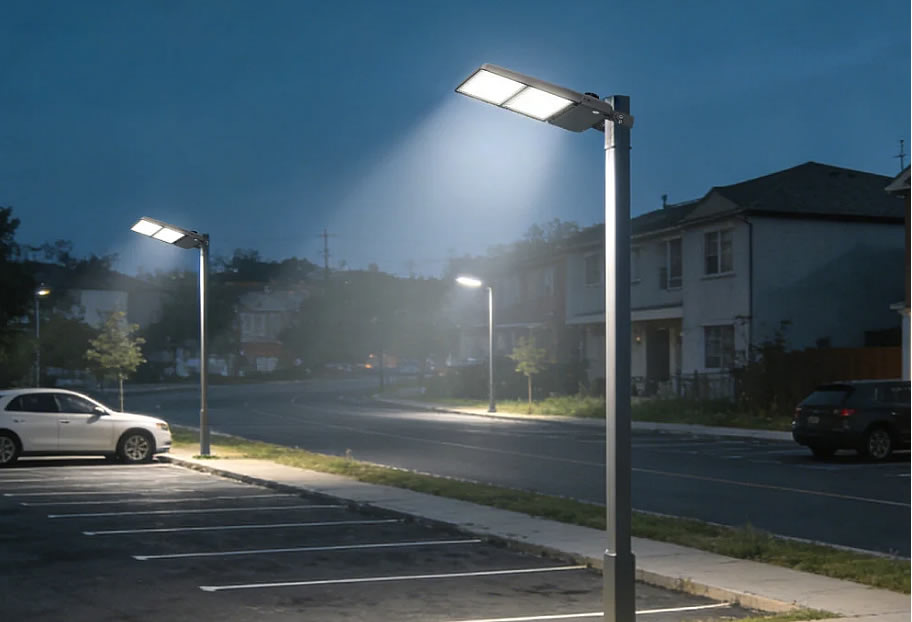

How to Choose LED Parking Lot Lighting

(Guide for selecting LED parking‑lot lights)

1. Understand the required brightness & lumen

Lumen is the key indicator of total light output, not wattage.

• Small‑sized parking lots: 5,000‑12,000 lm
• Medium‑sized parking lots: 12,000‑25,000 lm
• Large commercial parking lots: 25,000‑40,000 lm

Note: Higher wattage does not always mean brighter, because LED efficiency varies between products.

2. Color temperature selection (CCT)

• 4000K (neutral white): Best choice for most parking lots. Natural‑like vision, reduces eye fatigue for drivers and pedestrians.
• 5000K‑5700K (cool white): Bright daylight tone, suitable for high‑security‑demand public parking areas; may feel harsh in some environments.
• Avoid 3000K warm yellow: Too dim for night‑time vehicle traffic.

3. Lighting distribution & beam angle

Parking lot lights need to illuminate wide ground areas, not just a narrow spot.

• Wider beam angles (90°‑120°): For low‑mount poles (4‑6 m), cover more parking spaces.
• Narrow‑medium beam angles (60°‑90°): For tall poles (8‑12 m), prevent excessive light spill. Avoid light pollution and glare: Pick fixtures with good cutoff design to reduce upward light (less light trespass to nearby buildings).

4. IP weather‑resistance rating

Parking lamps are installed outdoors, exposed to rain, dust, and temperature changes.

• Minimum requirement: IP65.
• IP66 is better for coastal or heavy‑rain regions, resisting sea‑salt spray.

5. Mounting height & spacing

The pole height directly decides how many lamps you need.

• 4‑6 m poles: Space lights 12‑18 m apart
• 8‑12 m poles: Space lights 18‑30 m apart Tip: Do not install all fixtures too high; this can cause dark patches on the pavement.

6. Additional functional options

• Photocell / dusk‑to‑dawn sensor: Automatically turn on at dusk and shut off at dawn, save electricity.
• Motion sensor: Ideal for low‑traffic parking lots; dim when no activity, brighten upon movement.
• Surge protection: Critical for outdoor areas to guard against lightning and voltage spikes.

7. Lifespan & warranty

Quality LED parking lights typically have a rated lifespan of 50,000‑100,000 hours. Check the product warranty; a 5‑year warranty is a common reliable standard.

Quick summary of purchasing priorities

1. Suitable lumen output first (ignore raw wattage)
2. 4000‑5000K color temperature
3. IP65+ outdoor enclosure, anti‑glare optical design
4. Match beam angle with pole height and spacing
5. Optional photocell or motion sensors for energy‑saving

How to calculate required brightness for a specific parking lot

Key background terms

• Lux (lx): Illuminance, how much light falls on the ground (target design value for parking lots)
• Lumen (lm): Total light output from one fixture
• Area (m²): Total parking lot floor area
• Light loss factor (MF / Maintenance Factor): Accounts for dust, fixture aging, depreciation; typical range 0.7‑0.8 for outdoor LED parking lighting (use 0.7 for conservative design)
• Utilization Factor (UF): The percentage of fixture lumens that actually reach the ground (outdoor parking: generally 0.4 ~ 0.6; well‑designed cutoff lamp ≈0.5)

Recommended ground lux standards (common North‑American & commercial specification)

• General open‑air parking lot: 10‑20 lx average
• High‑security commercial / retail parking: 20‑30 lx average
• Entrances, walkways near building: 30‑50 lx average

Basic formula (average illuminance calculation)

Average Lux = (Total Fixture Lumens × UF × MF) ÷ Total Area(m²)

Rearranged to calculate total required system lumens for the whole lot: Total Required Lumens = (Target Average Lux × Total Area) ÷ (UF × MF)

Then: Number of lights = Total Required Lumens ÷ Lumen per single LED fixture

Simple calculation example

Parking lot: 60 m × 40 m = 2400 m² Design target: average 20 lx; UF =0.5; MF=0.7

Total required lumens = (20 × 2400) ÷ (0.5 × 0.7) = 48000 ÷ 0.35 ≈ 137,143 lm total for whole lot

If each LED parking light outputs 20,000 lm: Quantity =137143 ÷20000 ≈ 7 units Note: After getting this number, you still need to arrange pole positions, check spacing & mounting height to avoid dark zones. This is only the overall lumen budget, not a final layout.

Important practical corrections (the formula is theoretical only!)

1. Uniformity requirement (very often ignored) Average lux alone is not enough. You also need minimum‑to‑average illuminance ratio (uniformity). For parking lots, usually Min / Avg ≥0.25‑0.3. Even if total lumen meets calculation, poor beam angle or too‑wide pole spacing will create dark spots. Manual layout or lighting simulation software (Dialux, Relux) is necessary for formal projects.
2. Mounting height impacts utilization factor Higher poles → light spreads wider, but more light loss; Short poles → easier to create glare if beam angle not controlled.
3. Light spill & cutoff Full cutoff fixtures improve the utilization factor and reduce upward light pollution.

Step‑by‑step workflow you can follow for a project

1. Measure the parking lot length & width → calculate total area (m²)
2. Decide target average lux according to security requirement
3. Select Maintenance Factor & Utilization Factor
4. Calculate total required lumens
5. Select single fixture lumen output, get preliminary lamp quantity
6. Set pole height, beam angle, try pole spacing layout
7. Run lighting simulation (Dialux preferred) to verify average lux, minimum lux and uniformity
8. Adjust lamp power / quantity / spacing if dark areas appear

Quick self‑check rule of thumb (field estimation without software)

For typical open parking, 15‑25 lx target: Rough estimate: 1000 lm per square 10 m² (just for quick rough reference; not formal engineering)
