Introduction
The modern distribution center (DC) is a high-velocity ecosystem where efficiency, safety, and accuracy are paramount. As e-commerce demands surge, the pressure on facility managers to optimize operations has never been higher. While automation and software often steal the spotlight, the physical infrastructure—specifically the lighting system—plays a critical, yet often underestimated, role in operational success［1］.
High Bay Lighting is not merely about illuminating a large space; it is about creating a visual environment that supports complex tasks. In distribution centers, where ceilings can range from to 4 feet ( to 13. meters) or higher, standard lighting solutions fail to deliver adequate intensity to the floor level［2］. This article explores the technical and operational aspects of optimizing aisles through advanced High Bay Lighting strategies, focusing on energy efficiency, visual ergonomics, and smart control integration.
The Physics of High Bay Illumination
To understand aisle optimization, one must first understand the physics of light in voluminous spaces. The primary challenge in a distribution center is the "inverse square law," which dictates that the intensity of light decreases as the distance from the source increases［3］.
Mounting Height and Lumen Output
In facilities with mounting heights exceeding 2 feet, standard fixtures are insufficient. High Bay LED fixtures are engineered with specific optical lenses to project light downward with high intensity. The goal is to maintain specific foot-candle (fc) levels at the working plane (the floor or racking levels).
In facilities with mounting heights exceeding 2 feet, standard fixtures are insufficient. High Bay LED fixtures are engineered with specific optical lenses to project light downward with high intensity. The goal is to maintain specific foot-candle (fc) levels at the working plane (the floor or racking levels).
- Low Bay (12- feet):Typically uses flood optics.
- High Bay (20-45+ feet):Requires narrow beam angles (e.g., 60°, 90°, or 120°) to punch light down to the aisles without significant loss［4］.
Uniformity Ratios
A common mistake in DC lighting is focusing solely on average lux levels while ignoring uniformity. Uniformity ratio (U0 ) is the ratio of minimum illuminance to average illuminance.
A common mistake in DC lighting is focusing solely on average lux levels while ignoring uniformity. Uniformity ratio (U0 ) is the ratio of minimum illuminance to average illuminance.
U0=EavgEmin
Poor uniformity creates a "zebra crossing" effect—alternating bright and dark spots. In a forklift aisle, this is dangerous. Dark spots can hide debris or pallet damage, while sudden transitions from dark to light cause temporary blindness or eye fatigue for operators［5］. Optimizing aisles requires a uniformity ratio of at least 0. to 0. for general areas and higher for picking zones［6］.
Aisle-Specific Optimization Strategies
Distribution centers are not monolithic; they consist of various zones with distinct visual requirements. A "one-size-fits-all" approach to High Bay Lighting results in energy waste and suboptimal visibility.
Narrow Aisles and Very Narrow Aisles (VNA)
In VNA configurations, racking often extends close to the ceiling. The lighting layout must be precise to ensure light penetrates between the racks.
In VNA configurations, racking often extends close to the ceiling. The lighting layout must be precise to ensure light penetrates between the racks.
- Linear High Bays:Unlike traditional UFO-style round high bays, Linear High Bay lights are increasingly preferred for aisles. Their form factor mimics fluorescent tubes but with LED efficiency. When mounted parallel to the aisle, they provide continuous illumination along the rack face, eliminating shadows cast by uprights［7］.
- Asymmetric Optics:For aisles running perpendicular to the fixtures, asymmetric reflectors can be used to throw light "sideways" into the racking bays, ensuring that SKU labels on the upper levels are readable without the forklift operator needing to tilt their head excessively［8］.
Horizontal vs. Vertical Illuminance
Traditional lighting calculations focus on horizontal illuminance (light hitting the floor). However, in a DC, the "work" often happens on the vertical face of the pallet racking.
Traditional lighting calculations focus on horizontal illuminance (light hitting the floor). However, in a DC, the "work" often happens on the vertical face of the pallet racking.
- The Vertical Challenge:If High Bay lights are spaced too far apart, the horizontal floor lighting might meet code, but the vertical faces of the racks remain in shadow.
- Optimization:By adjusting the spacing-to-mounting-height ratio (S/MH ), facility managers can ensure that light strikes the vertical plane of the inventory. This is crucial for barcode scanners, which require high contrast to read codes accurately［9］.
The Shift to LED and Energy Efficiency
The transition from Metal Halide (MH) and High-Pressure Sodium (HPS) to LED High Bay Lighting represents the most significant upgrade in DC infrastructure in the last two decades.
Efficacy and Lumen Maintenance
LEDs offer superior efficacy, measured in lumens per watt (lm/W). While traditional MH lamps might offer 60- lm/W, modern High Bay LEDs can achieve 130-1 lm/W［10］. This means a DC can achieve the same light levels for nearly half the energy cost.
LEDs offer superior efficacy, measured in lumens per watt (lm/W). While traditional MH lamps might offer 60- lm/W, modern High Bay LEDs can achieve 130-1 lm/W［10］. This means a DC can achieve the same light levels for nearly half the energy cost.
Furthermore, LEDs have excellent lumen maintenance (L-rated life). An L rating means the fixture will maintain 90% of its light output for 50,000+ hours. In contrast, Metal Halide bulbs degrade rapidly, often losing 50% of their output within the first year, leading to "over-lighting" initially to compensate for future decay, which wastes energy［11］.
Thermal Management
Distribution centers can be hot environments, especially in summer. LEDs run significantly cooler than HID lamps. Moreover, many High Bay LED fixtures are designed to operate efficiently in cold storage environments (freezers/coolers), where traditional lamps struggle to ignite or maintain output［12］.
Distribution centers can be hot environments, especially in summer. LEDs run significantly cooler than HID lamps. Moreover, many High Bay LED fixtures are designed to operate efficiently in cold storage environments (freezers/coolers), where traditional lamps struggle to ignite or maintain output［12］.
Smart Lighting and IoT Integration
Optimizing aisles is no longer just about static light levels; it is about dynamic adaptability. The integration of the Industrial Internet of Things (IIoT) into High Bay Lighting systems allows for "smart" aisles.
Networked Lighting Controls
Modern LED drivers can be equipped with sensors and nodes (e.g., DALI-2, Zigbee, or Bluetooth Mesh).
Modern LED drivers can be equipped with sensors and nodes (e.g., DALI-2, Zigbee, or Bluetooth Mesh).
- Occupancy Sensing:In aisles that are not constantly active, lights can be dimmed to 10-20% (standby mode) and ramp up to 100% when a forklift or worker is detected. This "load shedding" can reduce energy consumption by an additional 30-50% beyond LED savings［13］.
- Daylight Harvesting:For distribution centers with skylights or clerestory windows, sensors can detect ambient natural light and dim the High Bay fixtures accordingly to maintain a consistent light level on the floor［14］.
Li-Fi and Asset Tracking
Emerging technology allows High Bay LED fixtures to transmit data via light waves (Li-Fi). While still gaining traction, this technology can be used for indoor positioning systems (IPS). By modulating the light signal imperceptibly, the overhead lights can triangulate the position of forklifts and inventory tags, turning the lighting grid into a massive data network［15］.
Emerging technology allows High Bay LED fixtures to transmit data via light waves (Li-Fi). While still gaining traction, this technology can be used for indoor positioning systems (IPS). By modulating the light signal imperceptibly, the overhead lights can triangulate the position of forklifts and inventory tags, turning the lighting grid into a massive data network［15］.
Maintenance and Reliability
In a 24/ distribution center, maintenance is a logistical nightmare. Replacing a bulb in a 35-foot high bay requires a scissor lift, a certified electrician, and often a shutdown of the aisle below for safety.
The "Fit and Forget" Philosophy
LED High Bays are solid-state lighting, meaning they have no filaments or glass envelopes to break. This durability drastically reduces maintenance costs.
LED High Bays are solid-state lighting, meaning they have no filaments or glass envelopes to break. This durability drastically reduces maintenance costs.

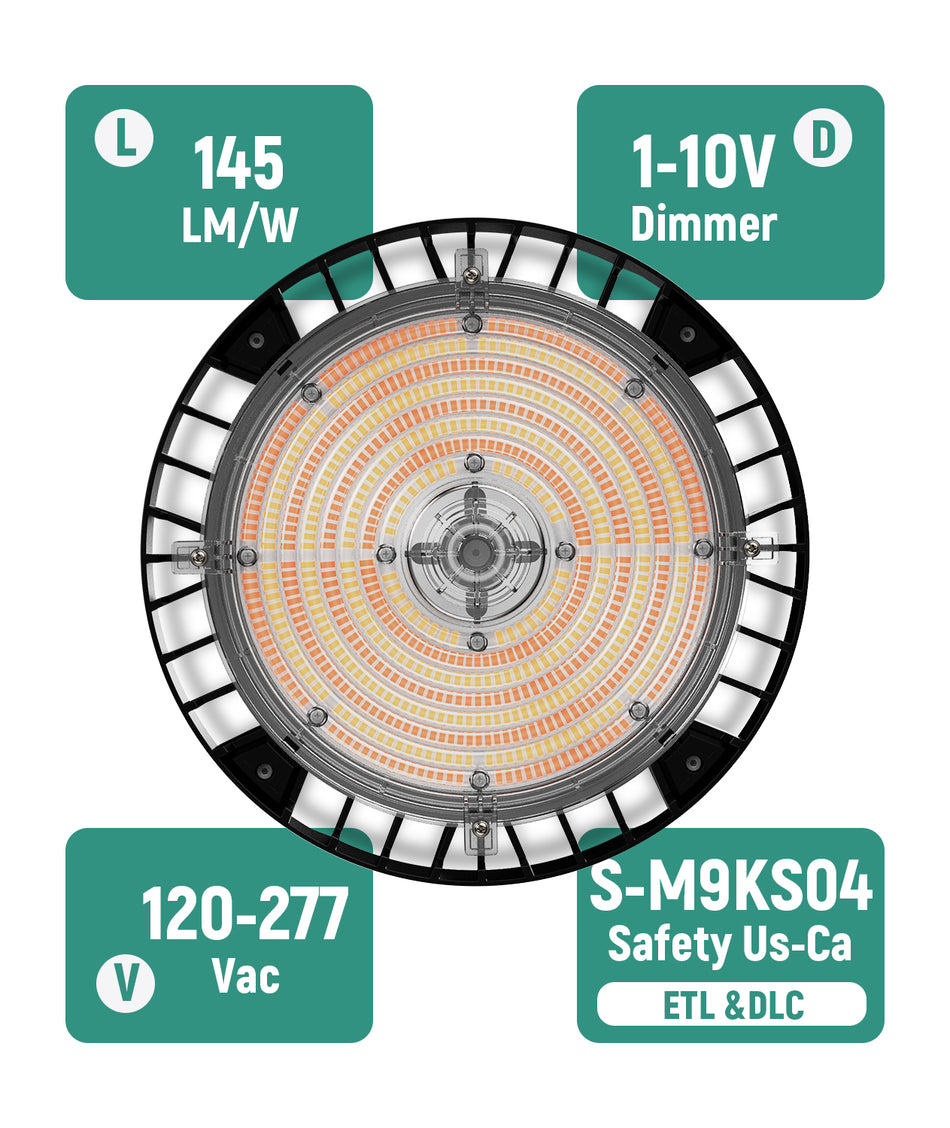

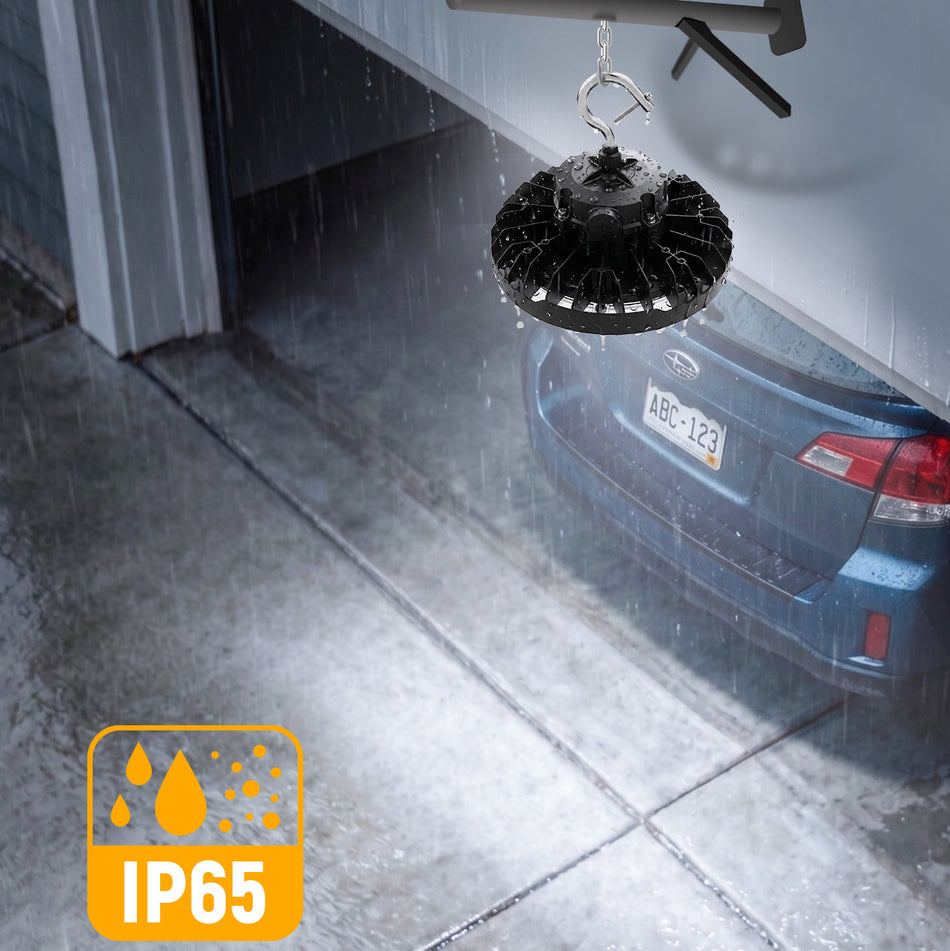

- IP Ratings:For DCs that wash down floors or operate in dusty environments, fixtures with an IP or IP6 rating are essential to prevent dust ingress and water damage［16］.
- Surge Protection:Warehouses are prone to power fluctuations. High-quality High Bay fixtures should include surge protection (e.g., 10kV) to prevent driver failure［17］.
Summary of Specifications for Optimization
To achieve optimal aisle performance, procurement teams should look for the following specifications in High Bay Lighting:
| Feature | Specification | Benefit |
|---|---|---|
| Luminous Efficacy | >1 lm/W | Maximizes energy savings and reduces carbon footprint. |
| Color Temperature | 5000K (Cool White) | Enhances contrast and alertness; mimics daylight［18］. |
| CRI (Color Rendering) | > Ra | Crucial for distinguishing color-coded wiring or inventory tags. |
| Optics | Type III or Type V | Type III for aisles (rectangular spread); Type V for open floor areas. |
| Flicker-Free | <1% | Prevents stroboscopic effects on moving machinery (safety critical). |
Conclusion
Optimizing distribution center aisles is a multifaceted challenge that goes beyond simple illumination. It requires a strategic approach combining high-efficacy LED technology, precise optical engineering, and smart control systems. By selecting the correct High Bay Lighting—specifically Linear High Bays for racking and UFO High Bays for open areas—operators can ensure safety, improve picking accuracy, and significantly reduce operational expenditures. As the industry moves toward Industry 4.0, the lighting grid will serve as the backbone for a smarter, safer, and more efficient warehouse ecosystem.
