Panel Lights for Operating Rooms: Shadowless Requirements
The modern operating room (OR) is a high-stakes environment where precision is paramount. While the primary focus is often on the surgical team and their instruments, the lighting system serves as a critical, non-negotiable tool for success. Unlike general commercial lighting, such as High Bay Lighting or LED Downlights used in warehouses and offices, operating room illumination requires specialized engineering to ensure patient safety and surgical accuracy.
The core challenge in surgical lighting is the elimination of shadows. When a surgeon leans over a patient, or when multiple hands and instruments crowd a surgical site, standard light sources create dark spots that can obscure critical anatomy. This article explores the technical requirements for shadowless panel lights and surgical illumination, detailing the optical physics, international standards, and the transition from traditional fixtures to advanced linear and panel LED systems.
The Physics of Shadowlessness
To understand the requirements for operating room lights, one must first understand the optical problem they solve. In a standard environment illuminated by a single point source (like a basic bulb), an opaque object creates a distinct, dark shadow (umbra). In a surgical context, this could hide a bleeding vessel or a tumor margin.
Shadow Dilution Principle
The solution is not to eliminate shadows entirely—which is physically impossible—but to render them transparent. This is achieved through shadow dilution［3］. Modern surgical lights, including advanced Linear Lights and circular arrays, utilize a multi-point source design.
- Multi-Source Arrays: Instead of one bulb, the fixture contains dozens or hundreds of LED modules arranged in concentric rings or specific geometric patterns［3］.
- Overlapping Beams: Each LED emits light from a slightly different angle. These beams overlap at the focal point (the surgical site).
- The Result: If a surgeon's hand blocks light from one set of LEDs, light from the opposing LEDs fills the void. The shadow is not removed; it is "washed out" or diluted to a level where it does not impede vision［3］.
Note: This principle applies to both traditional round surgical lights and modern LED Panels designed with high-density arrays for shadow reduction.
Critical Performance Standards
When selecting lighting for an operating room, facility managers cannot rely on standard commercial metrics. While a High Bay Light might be rated simply for brightness (lumens), surgical lights must meet rigorous international standards (such as IEC 60601-2-41) regarding quality, safety, and color fidelity.
1. Illuminance (Lux Levels)
The intensity of light required in an OR is significantly higher than in a standard office using LED Panels or T-BAR Frame Lights.
- Surgical Field: The standard requires an illuminance range of 40,000 to 160,000 lux at the center of the surgical field［2］. This high intensity is necessary to penetrate deep body cavities (e.g., abdominal or thoracic surgeries).
- Ambient Lighting: To reduce eye strain, the surrounding room requires balanced ambient light, typically between 1,000 and 2,000 lux［2］. This prevents the "tunnel vision" effect where the pupil constricts too much due to the bright surgical light, making the periphery too dark to see.
2. Color Rendering Index (CRI)
Perhaps the most critical metric for surgical safety is the Color Rendering Index (CRI).
- The Requirement: Surgical lights must have a CRI (Ra) of ≥ 95［2, 4］.
- The Reason: Human tissue varies in subtle colors. Arterial blood is bright red, while venous blood is dark red. Ischemic tissue, necrotic areas, and tumors often present with slight discolorations. A light with a low CRI (like a cheap LED Tube Light) distorts these colors, potentially leading to diagnostic errors.
- R9 Value: Special attention is paid to the R9 value (saturation of red), which must be > 90 to ensure blood and organs are rendered accurately［2］.
3. Correlated Color Temperature (CCT)
The "warmth" or "coolness" of the light affects visual acuity and fatigue.
- Standard Range: The ideal CCT is typically between 4,000K and 4,500K［2］.
- Visual Comfort: This neutral white mimics natural daylight, allowing the surgeon's eyes to remain relaxed during long procedures. Lights that are too cool (>5000K) can cause glare and fatigue, while lights that are too warm (<3500K) may induce drowsiness and lack the necessary contrast for fine detail［2］.
️ Types of Surgical Illumination
While the term "Panel Light" often refers to flat, recessed troffers used in office ceilings (like LED Troffer Lights), in the context of an OR, it can refer to the flat, sealed heads of modern surgical luminaires or the ambient lighting panels that support the main surgical lights.
1. Ceiling-Mounted Surgical Lights (The Gold Standard)
These are the primary "shadowless" lights.
- Configuration: Often configured as a "Mother-Daughter" system (two heads), allowing for overlapping fields of light from different angles to further reduce shadows.
- Integration: These units are designed to integrate with T-BAR Frame ceiling grids or specialized OR ceiling pendants. They must be aerodynamic to not disrupt the Laminar Air Flow (LAF) systems that keep the room sterile［2, 4］.
2. Linear and Wall-Mounted Systems
For smaller procedure rooms or examination areas, full-scale surgical lights may be overkill.
- Wall Pack/Linear Applications: High-output Linear Strip Lights or wall-mounted surgical fixtures are used in ENT (Ear, Nose, Throat) suites or dental operatories.

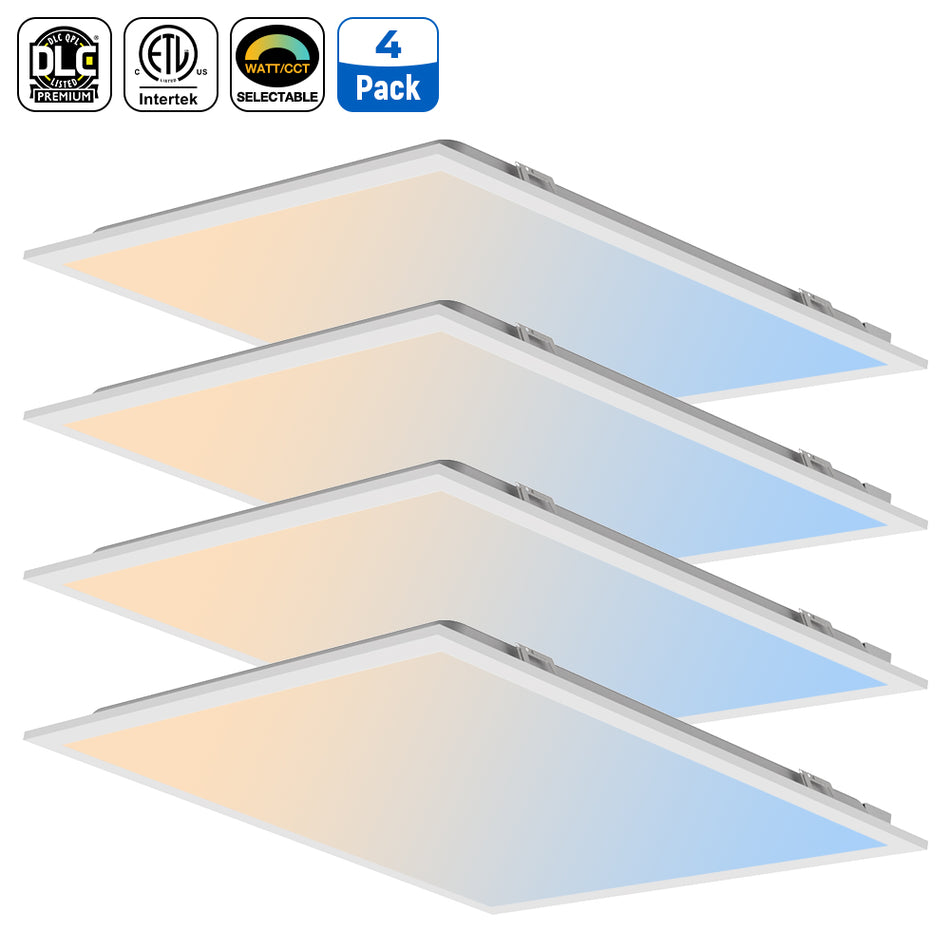

- Ambient Panels: LED Panel Lights with high CRI are installed in the ceiling grid to provide the necessary background illumination (1,000 lux) mentioned earlier. This reduces the contrast ratio between the bright surgical site and the dark room, preventing surgeon fatigue［2］.
3. Mobile (Floor-Standing) Lights
For emergency rooms or flexible procedure spaces, mobile units on wheels provide shadowless lighting. These are essential backup units if the main ceiling High Bay style surgical lights fail［4］.
️ Technical Comparison: OR Lighting vs. Commercial Lighting
It is vital to distinguish between medical-grade lighting and standard commercial fixtures like LED Canopy Lights or Shoebox Lights. The table below highlights these differences.
| Feature | Surgical / OR Lighting | Commercial (High Bay / Downlight) |
|---|---|---|
| Primary Goal | Visual accuracy & Shadow elimination | General visibility & Energy savings |
| Illuminance | 40,000 - 160,000 Lux［2］ | 500 - 2,000 Lux |
| CRI (Color) | Ra ≥ 95 (R9 > 90)［2, 4］ | Ra > 80 (Standard)［6］ |
| Heat Output | Minimal (Cold Light technology)［4］ | Moderate to High |
| Shadow Control | Multi-source "Shadow Dilution"［3］ | Single source (High Shadow) |
| Regulation | FDA / CE Medical Class II［4］ | UL / DLC / Energy Star［6］ |
Ergonomics and Sterility
The design of operating room lights goes beyond optics; it encompasses the entire workflow of the surgical team.
Sterility and Cleaning
Surgical lights are sealed units. Unlike LED Tube Lights which may have open heatsinks, OR lights have smooth, glass or plastic covers that can be wiped down with disinfectants. The handles used to adjust the lights are often sterilizable or covered with disposable sterile grips［3］.
Acoustic Comfort
In a quiet operating room, the hum of a light fixture can be distracting. High-quality LED drivers are designed to be silent. Fans, if used for cooling, must operate below 30 decibels to maintain an acoustically comfortable environment［2］.
Endoscopic Compatibility
Modern surgery often involves cameras (endoscopes). Standard LED drivers can sometimes cause a "strobing" effect on camera screens due to pulse-width modulation (PWM). OR lights must use drivers that are compatible with camera systems to prevent flickering on the monitors［2］.
Future Trends: 2026 and Beyond
As we look toward the future of medical facilities, the integration of lighting with digital infrastructure is key.
- Smart Integration: Lights are becoming part of the "Smart OR," syncing with patient vitals or automatically adjusting color temperature based on the phase of the surgery (e.g., a "tissue differentiation" mode).
- Hybrid Systems: We are seeing a blend of Linear High Bay aesthetics with surgical performance, creating fixtures that look like modern architectural elements but perform like medical devices.
- Energy Efficiency: With the global push for green hospitals, LED surgical lights are replacing halogen predecessors, reducing energy consumption by up to 70% while eliminating the intense heat that used to dry out surgical tissues［4］.
Conclusion
Selecting the correct lighting for an operating room is a complex engineering task. It requires a balance of high-intensity illumination, perfect color rendering, and shadow elimination. While products like Wall Pack Lights or Area Lighting serve the exterior and general areas of a hospital, the operating room demands a specialized class of "shadowless" technology. By adhering to standards like IEC 60601 and prioritizing metrics like CRI > 95 and Shadow Dilution, healthcare facilities can ensure that their lighting supports, rather than hinders, the life-saving work performed within.
